Assemble Project Drawing Set Without the DMAT Wizard
Appendix F
Select Drive Power Drawings

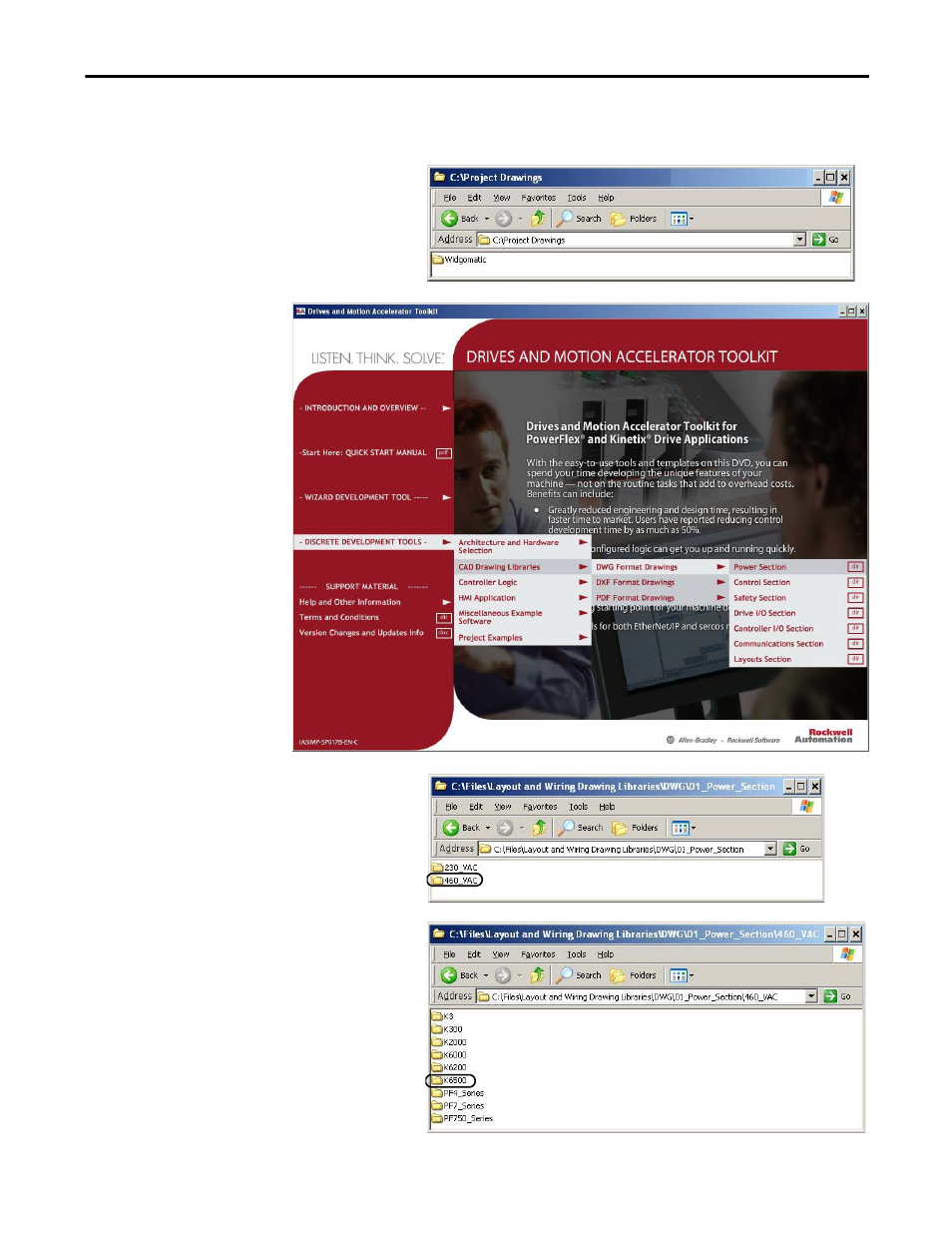

1.
Create a project folder.
For the Widg-O-matic machine example,
the Widgomatic folder was created.
2.
Browse to the CAD
Drawing Libraries
folder on the Drives
and Motion toolkit
DVD.
3.
Navigate to the
desired file type
(DWG, DXF, or
PDF) folder and
select Power Section.
4.
Double-click the
voltage folder matching your system
voltage.
For the Widg-O-matic example, the
460_VAC folder was opened.
5.
Double-click the folder matching the
initial drive family included in your
application.
For the Widg-O-matic machine
application example, the Kinetix 6500
drive folder was opened.
