Controller, Network, and Device Configuration Without the DMAT Wizard

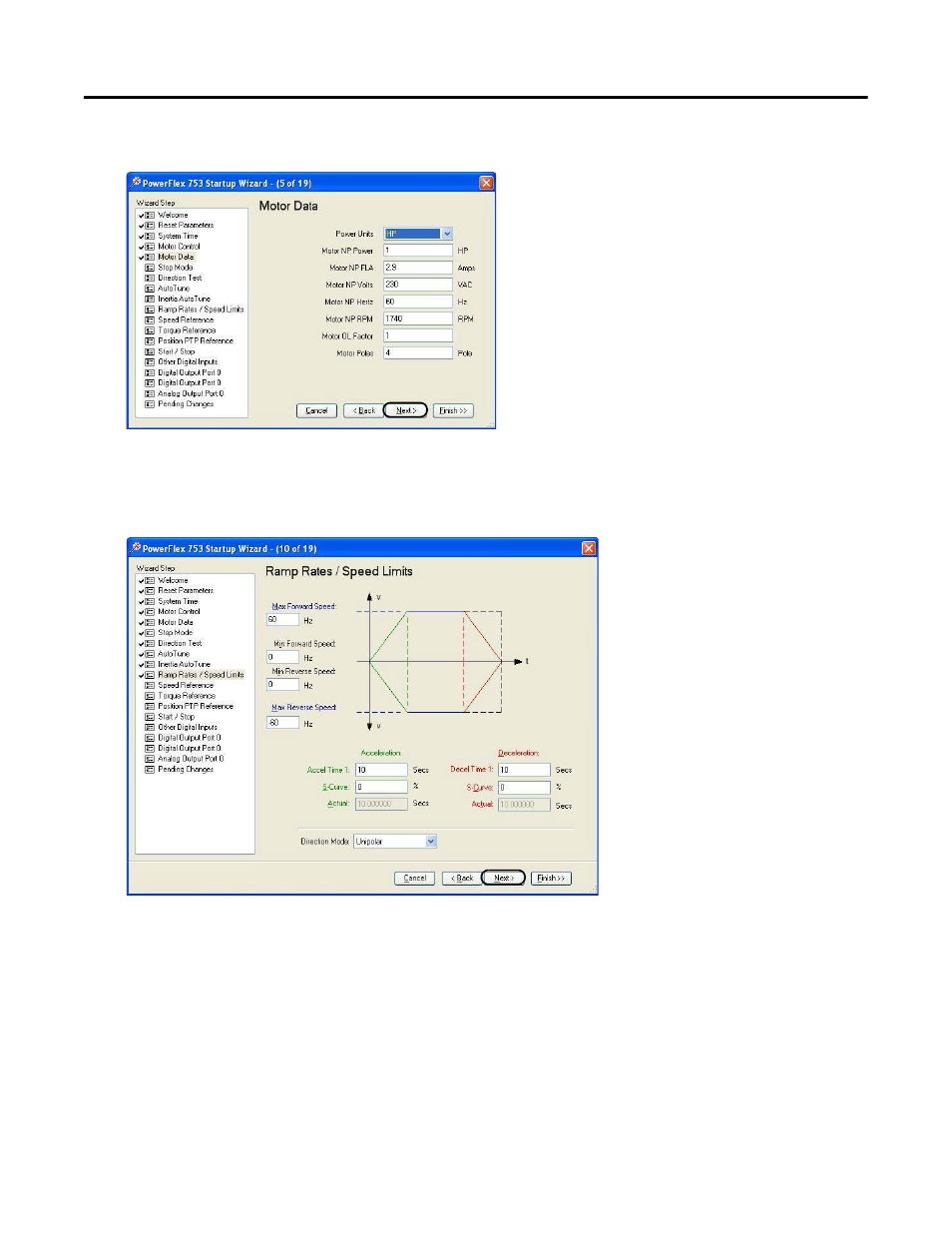

The Motor Data wizard step opens.
9.
Enter motor data values appropriate for your application.
10.
Click Next to proceed through Stop Mode, Direction Test, AutoTune, and Inertia AutoTune wizard steps.
The Ramp Rates / Speed Limits wizard step opens.
11.
Enter the Max/Min Forward Speed, Max/Min Reverse Speed, and Acceleration/Deceleration parameters
as appropriate for your application.
12.
Click Next.
