Rockwell Automation Publication IASIMP-QS019E-EN-P - August 2013
61
System Layout and Wiring
Chapter 3
Edit System Communication Drawings
1.
Open the communication drawing for your application.
For the Widg-O-matic machine application example, the 060_120_Ethernet_Communication.dwg file is
opened.
2.
Delete network devices not used in the project.
For the Widg-O-matic machine application example, one of the Kinetix 300 drives and associated cable is
deleted.

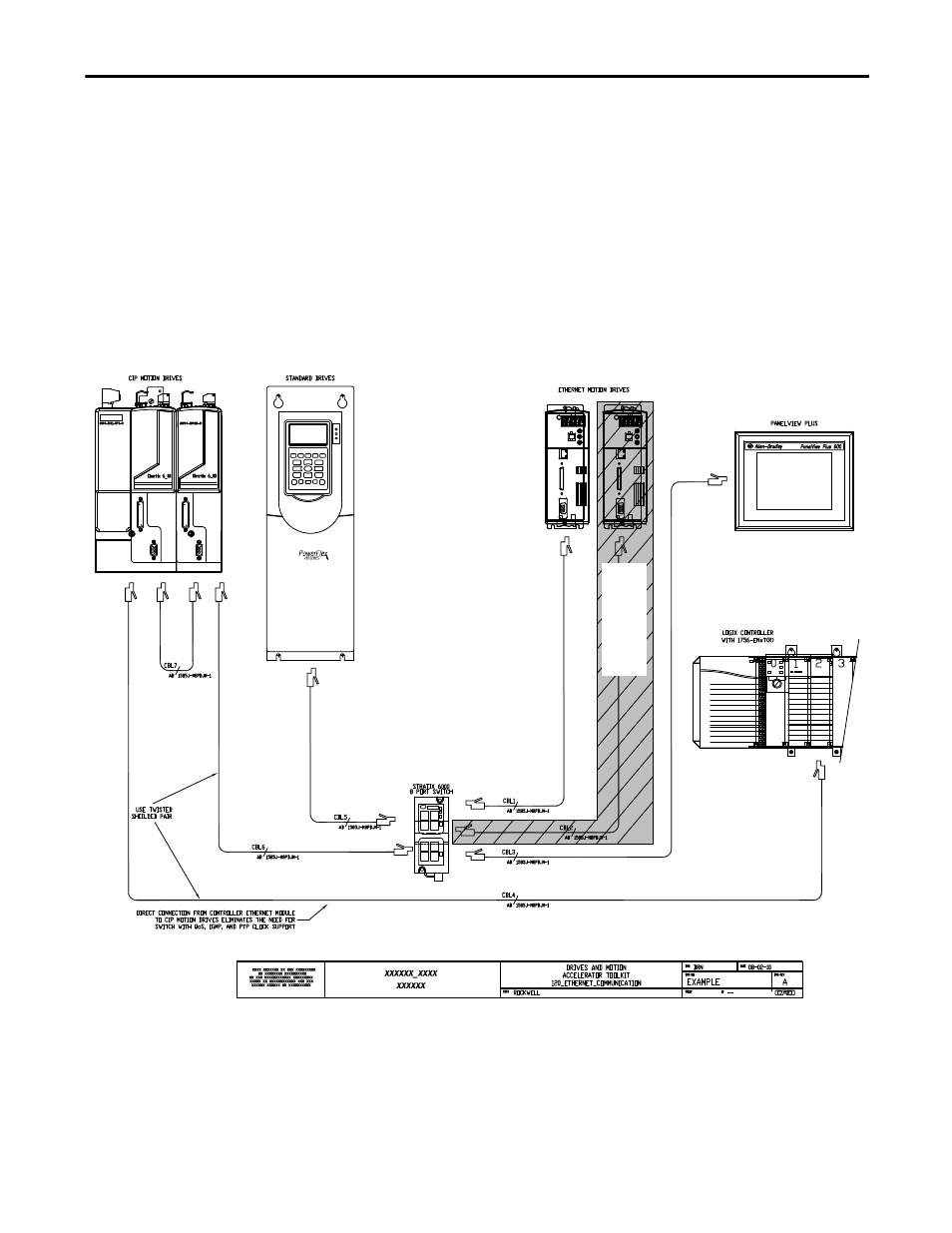

Ethernet Communication
Select and
delete
this drive
and cable.
