50 Rockwell Automation Publication IASIMP-QS019E-EN-P - August 2013
Chapter 3 System Layout and Wiring

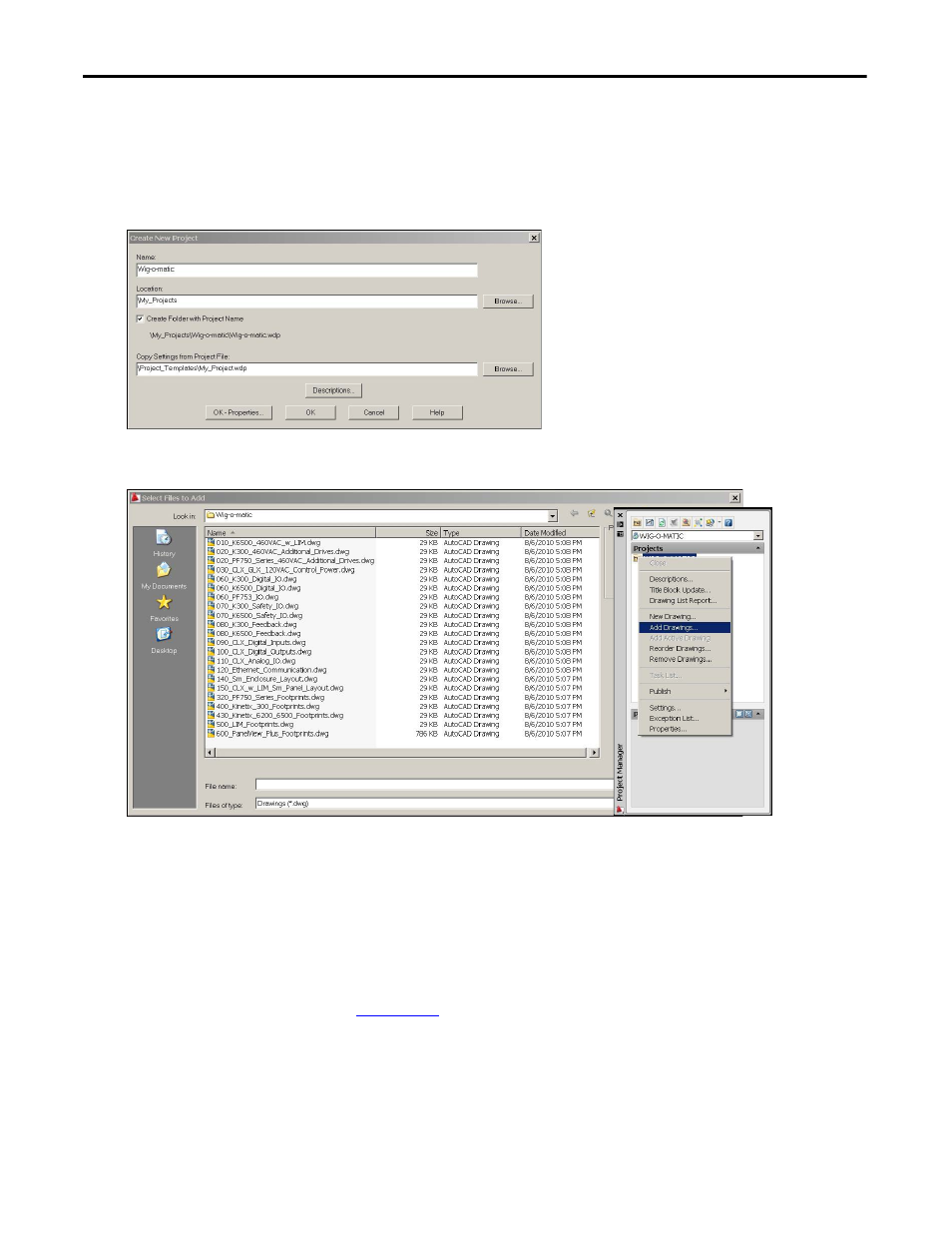

Create a New Project
1. Open your drawing software.
2. Create and name your new project.
3. Add and select the toolkit library drawings assembled by the DMAT Wizard.
4. Navigate to the appropriate DWG or DXF Drawing directory that was created by the DMAT Wizard.
If the default DMAT Wizard directory was used, your project's drawing set is in C:\Documents and
Settings\
PC Name\My Documents\DMAT\ProjectName\MachineName\Drawings\filetype directory.
The Widg-O-matic example drawing files may be found in: C:\Program Files\RA_Simplification\
DMAT\B-Files\6-Project Examples\Widg-O-matic\WidgOmatic_CAD\
filetype directory.
If you chose to assemble the Project Drawing Set without using the DMAT Wizard, navigate to the
drawing directory you created in
Appendix F .
