System Layout and Wiring
Chapter 3
3.
Insert drives into the Drives Placement section.

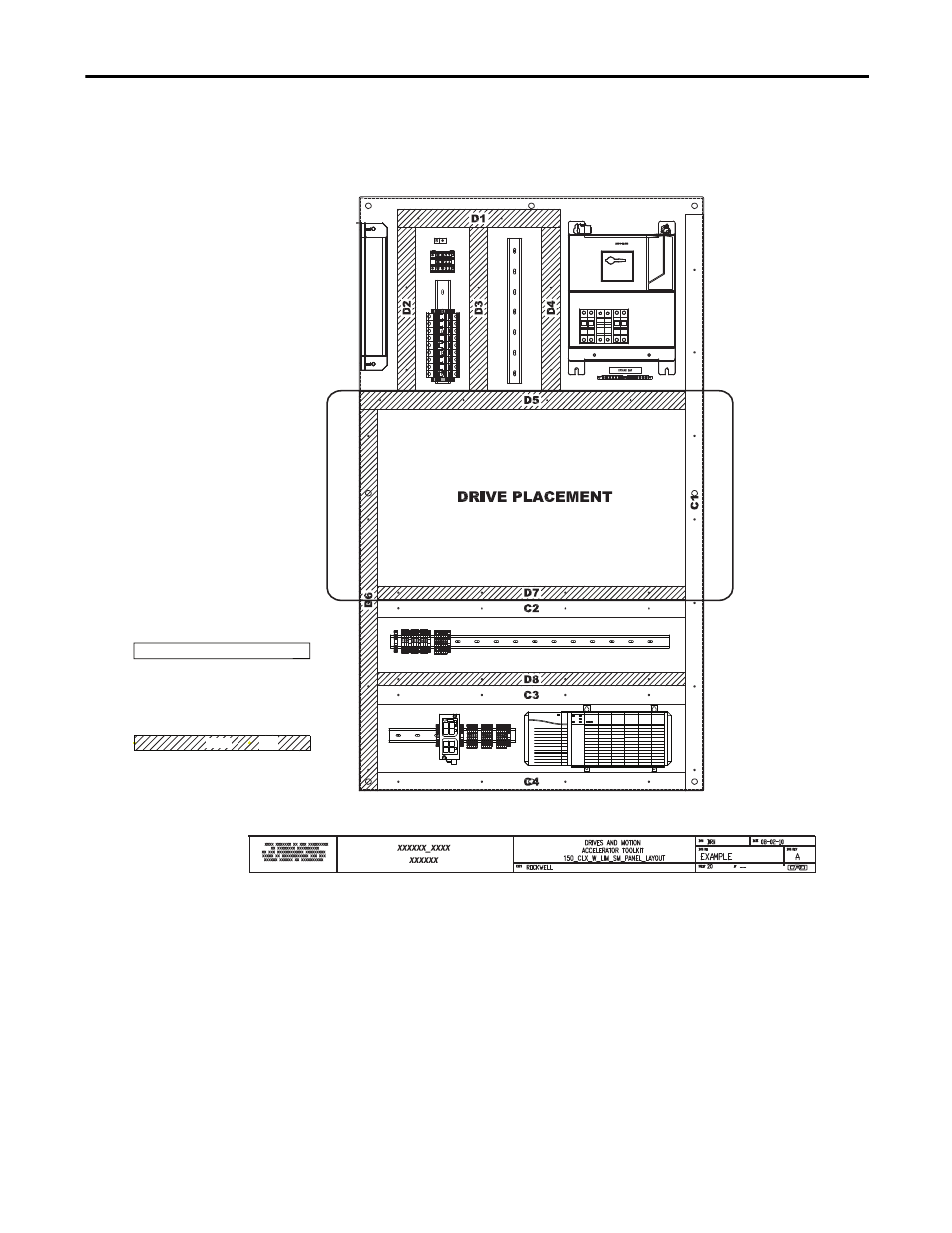

a. Open the panel layout drawing for your application.
Small Panel Layout Drawing
b. Open the associated drives footprint drawings that were added to your project drawings from the
toolkit library.
For the Widg-O-matic machine application example, the 430_Kinetix_6200_6500_Footprints.dwg file
is opened.
c. Copy the desired drive components from the footprint drawings for your panel layout drawing.
DIRTY
D6
CLEAN
C2
LIM Module
AC Line F
ilt
er
CLEAN wireway for noise sensitive device
circuits.
DIRTY wireway for noise generating
device circuits.
Drives Section
