FactoryTalk View ME Configuration
Chapter 5
13.

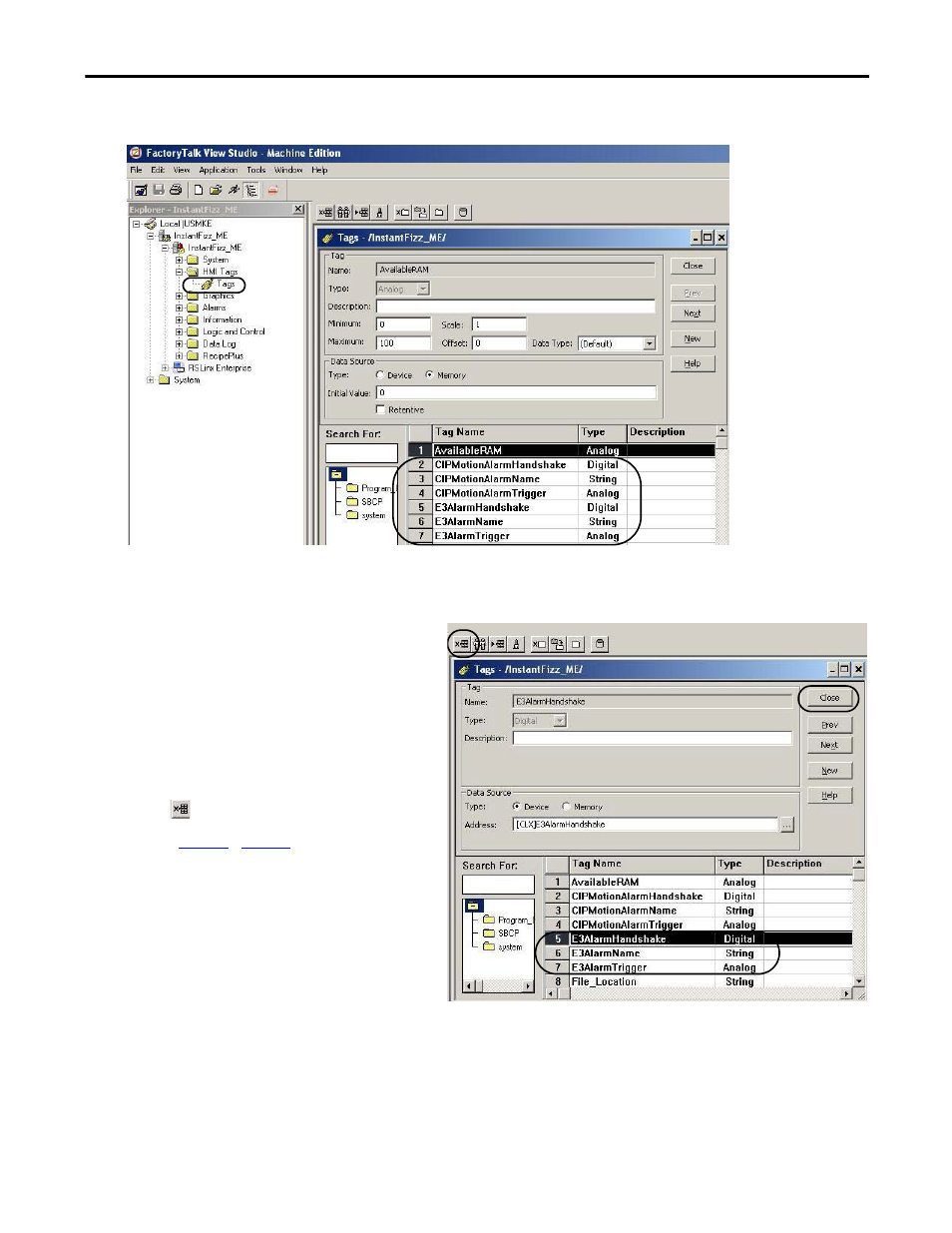

Expand the HMI tags folder in project Explorer™ and double-click Tags.
The HMI Tags editor appears in the workspace.
14.
Verify a number of Alarm Tags have been added to the HMI tags listing.
15.
Select each of the
xxxAlarmHandshake,
xxxAlarmName, and xxxAlarmTrigger tags
associated with each of the Alarm Triggers
that were deleted in the previous section.
For example, the circled tags are three tags
you would delete if the E3AlarmTrigger had
been deleted previously.
16.
Click
to delete the tags.
17.
for all unused Alarm
tags associated with unused Alarm Triggers.
18.
Click Close to complete tag editing.
