Rockwell Automation Publication IASIMP-QS019E-EN-P - August 2013
323
Controller, Network, and Device Configuration Without the DMAT Wizard
Appendix G
12.
Verify your device configuration and save the file.
Refer to the Bulletin 193 EtherNet/IP Communications Auxiliary User Manual,
, for details on
how to configure parameters.
SMC-50 Soft Starter Configuration
SMC-50 soft starter configuration includes these procedures.
•
Update SMC-50 Add-On Profiles
•
Add SMC-50 Devices to your Logix Designer Project
•
Configure SMC-50 Devices
Update SMC-50 Add-On Profiles
Add-On profiles (AOP) are available for download at the Custom Downloads Add-On Profiles website:
Follow these steps to download SMC-50 Add-On profiles.
1.
Login to the Custom Download Add-On Profiles website.

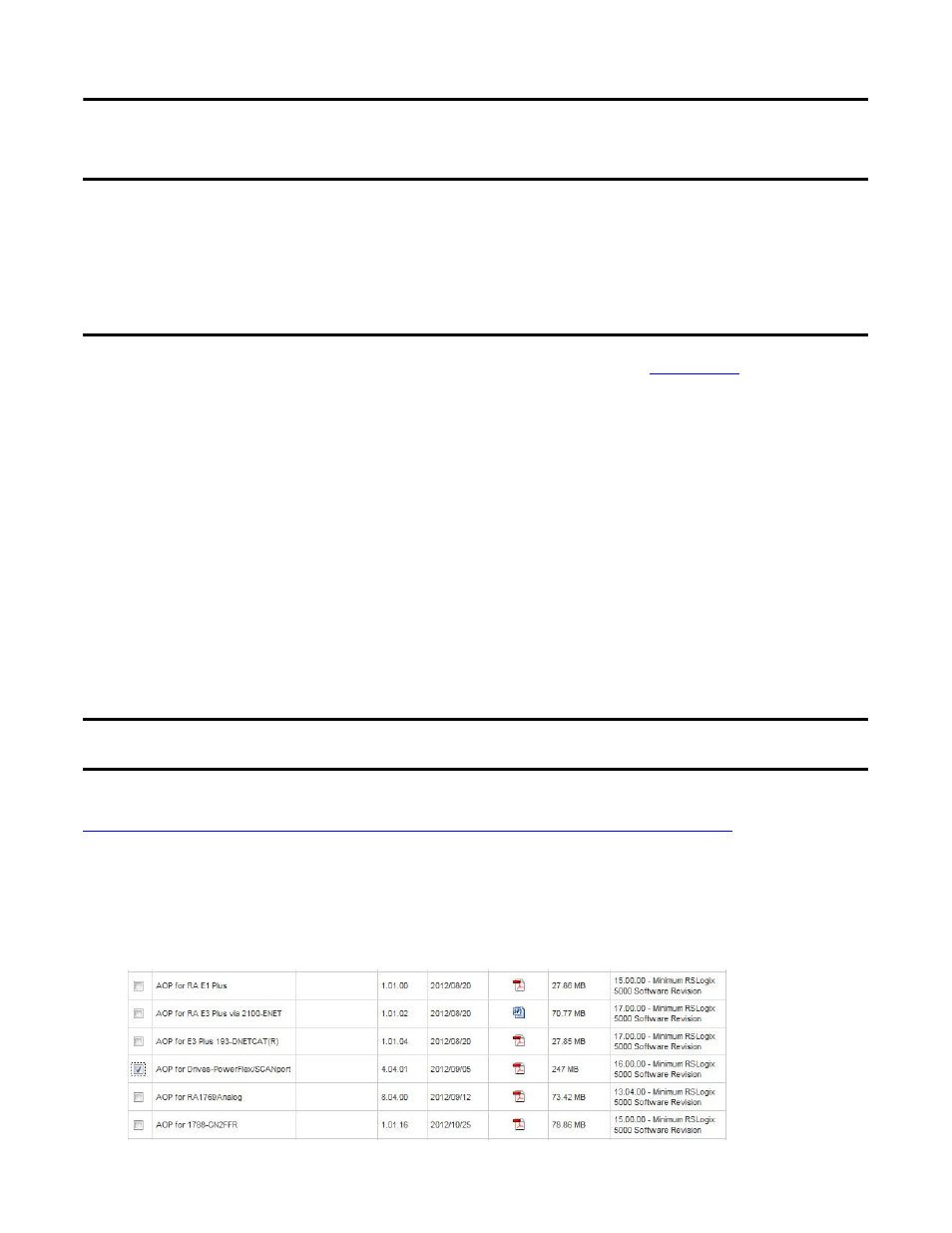

The Custom Download Files dialog box opens.
IMPORTANT
You must set the following parameters in the E3 Plus overload relay or the AOI does not function properly in your Logix Designer
application:
• Param 59, Output Assembly = 105
• Param 60, Input Assembly = 100
• Param 61, Assy Word 0 Param = 21 (supplies status of Inputs and Outputs)
• Param 62, Assy Word 1 Param = 4 (supplies Avg current)
• Param 63, Assy Word 2 Param = 14 (supplies Trip Status)
• Param 64, Assy Word 3 Param = 15 (supplies Warning Status)
IMPORTANT
The SMC-50 Add-On Profiles are independent of RSLogix 5000 software or Logix Designer application releases. Update your
SMC-50 Add-On Profiles to make sure your application runs correctly.
