Chapter 7 System Application Guide
Fault Diagnostic Views

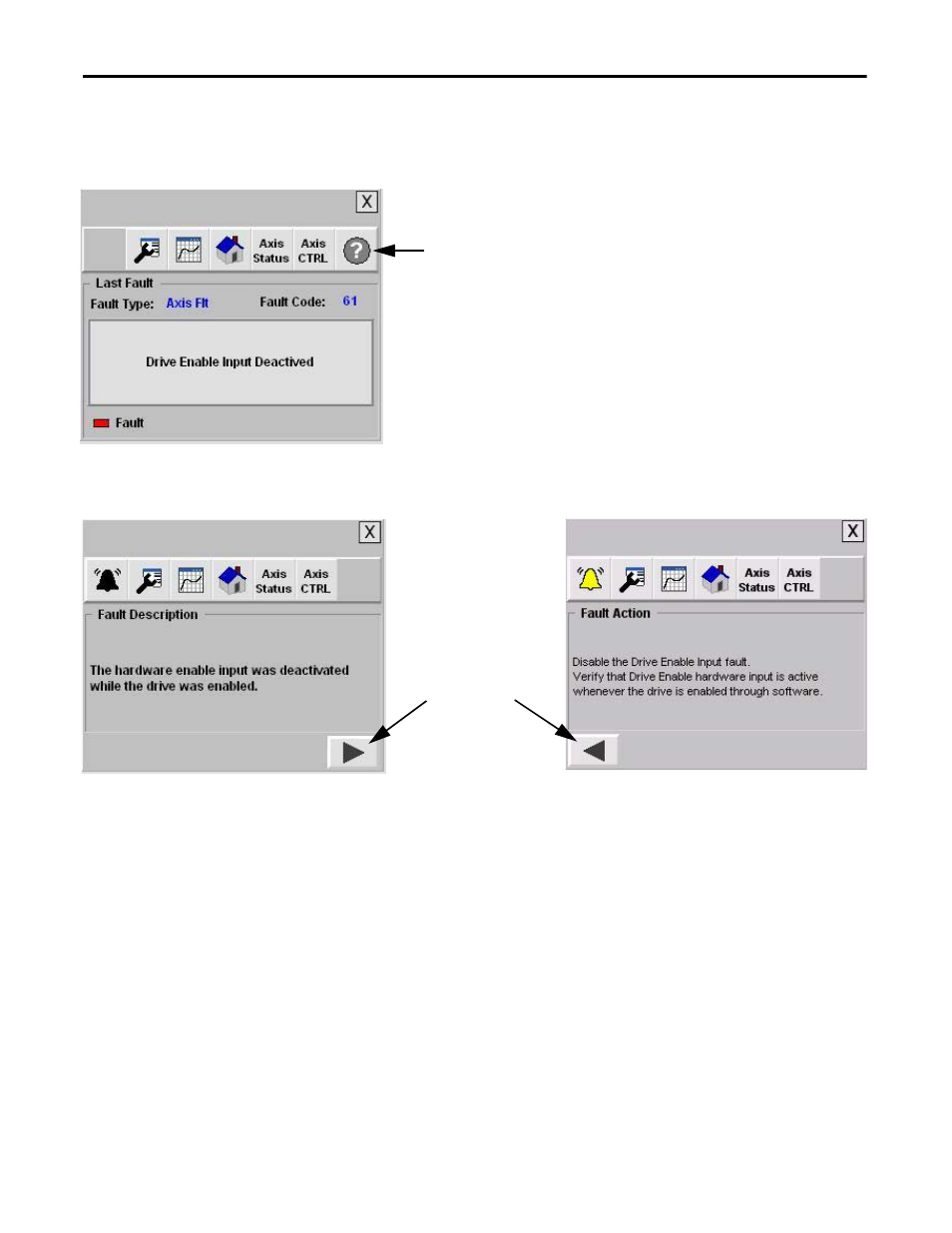

Last Fault View
Fault Description View Fault Actions View
The Last Fault view is displayed when you press
Alarm. The specific error being reported by the
module is indicated.
CIP Motion Drive
Help Button
Press Help to go to Fault Description
views.
Press arrows to toggle
between display views.
CIP Motion Drive CIP Motion Drive
This diagnostic information is triggered by the reported module error code. The input
and output error code information provided is in accordance with the fault
descriptions and actions found in the drive specific user manual.
