Chapter 7
System Application Guide
Fault Diagnostic Views

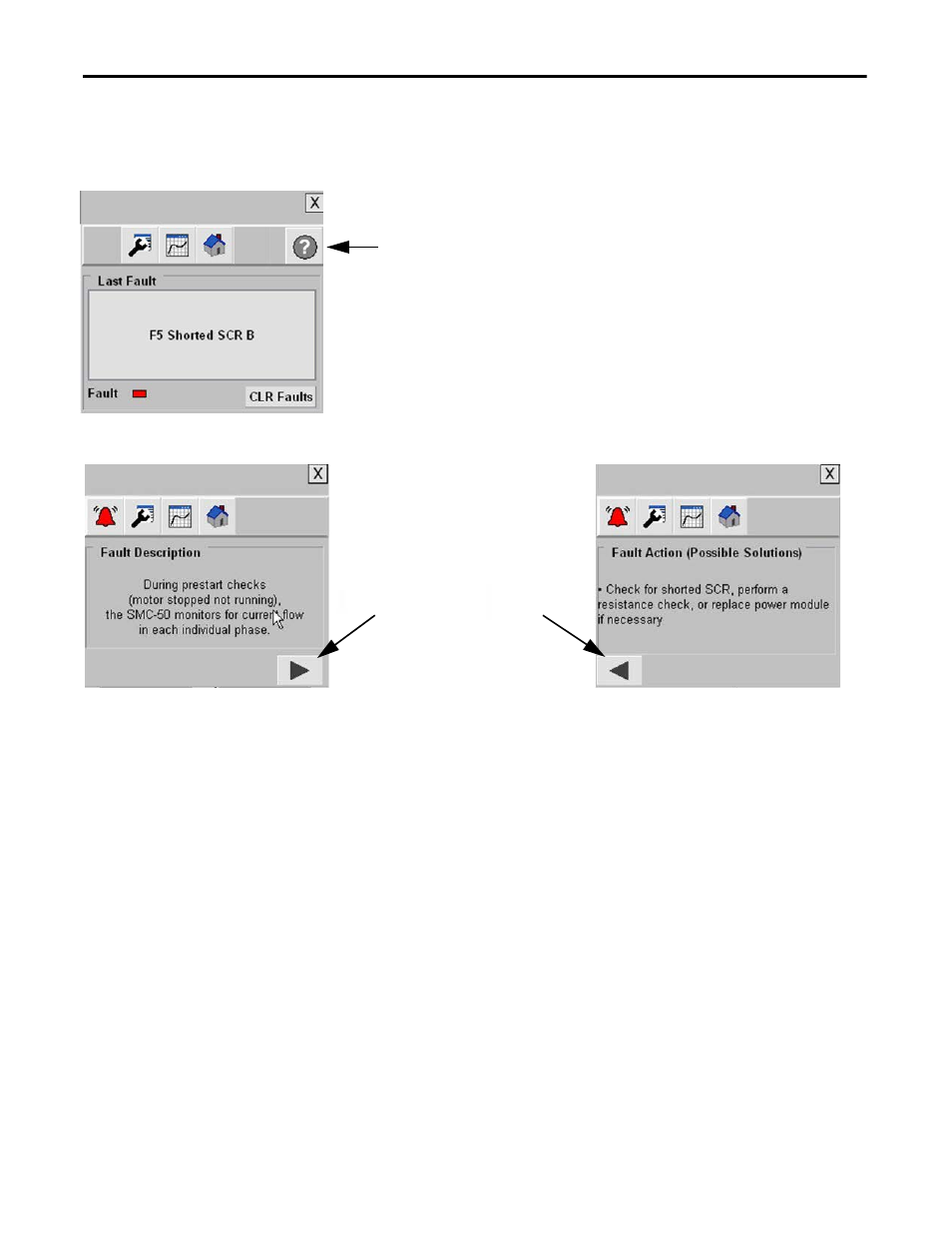

Last Fault View
Fault Description View
Fault Action View
The Last Fault view is displayed when you press
Alarm. The specific error being reported by the
module is indicated.
SMC-50 Soft Starter
Help Button
Press Help to go to Fault
Description views.
SMC-50 Soft Starter
Press arrows to toggle between
display views.
This diagnostic information is triggered by the
reported module error code. The input and output
error code information provided is in accordance
with the fault descriptions and actions found in the
SMC-50 soft starter user manual.
SMC-50 Soft Starter
