Appendix B
Logic Module Customization

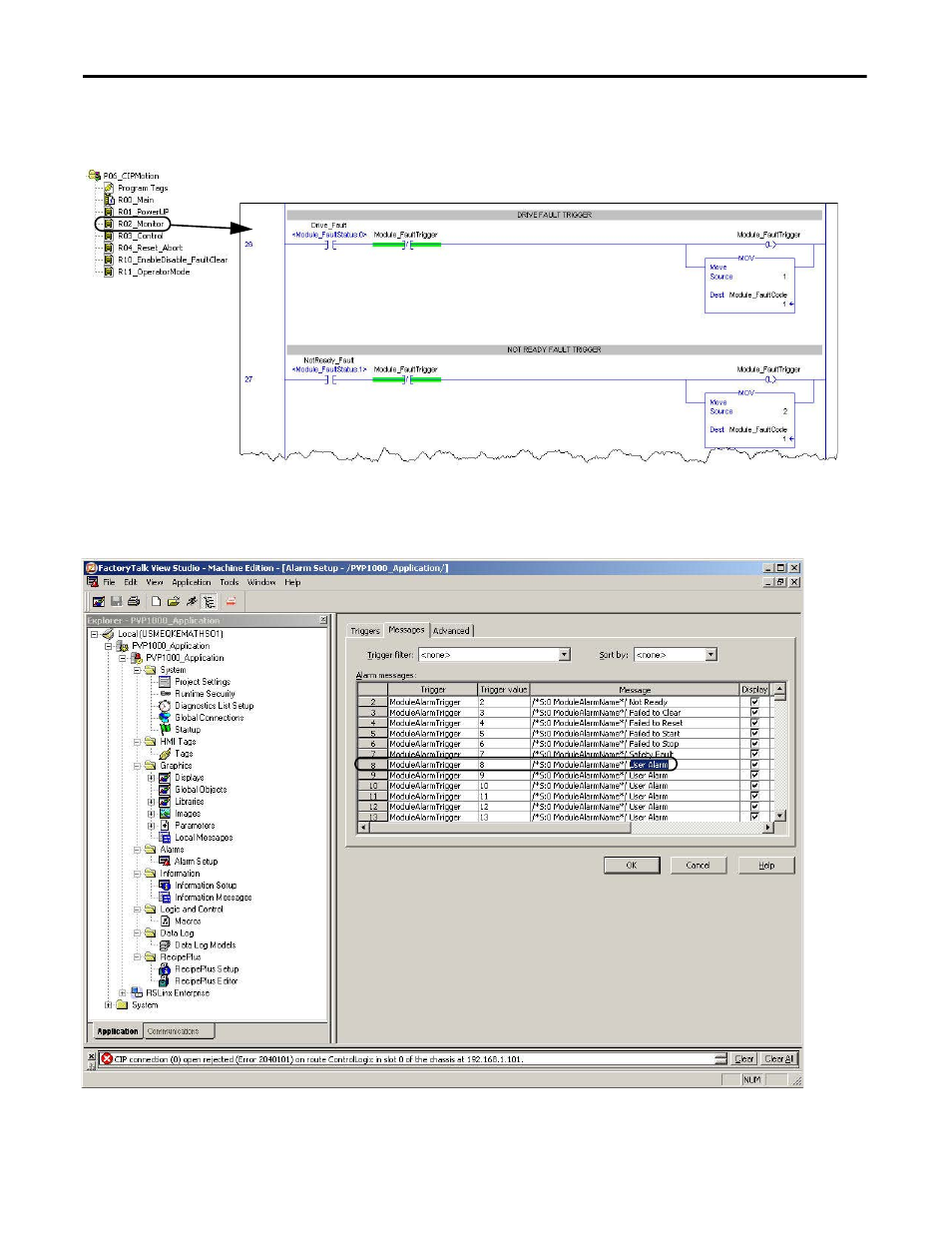

To add new module faults to the Alarm History faceplate, navigate to the fault trigger rungs and add the logic for
your new fault with the appropriate fault code number.
In addition to adding the logic for the new module faults, the alarm message within the HMI application needs
to be entered for the associated trigger value.
