E3 Plus Overload Relay with Communication Auxiliary Configuration
E3 Plus overload relay configuration applies to E3 Plus overload relays with the 193-DNENCAT
communication auxiliary module, and includes these procedures.
•
Update E3 Plus Add-On Profiles
•
Add E3 Plus Devices to your Logix Designer Project
•
Configure E3 Plus Devices
Update E3 Plus Add-On Profiles
Add-On profiles (AOP) are available for download at the Custom Downloads Add-On Profiles website:
Follow these steps to download E3 Plus Add-On profiles.
1.
Login to the Custom Download Add-On Profiles website.

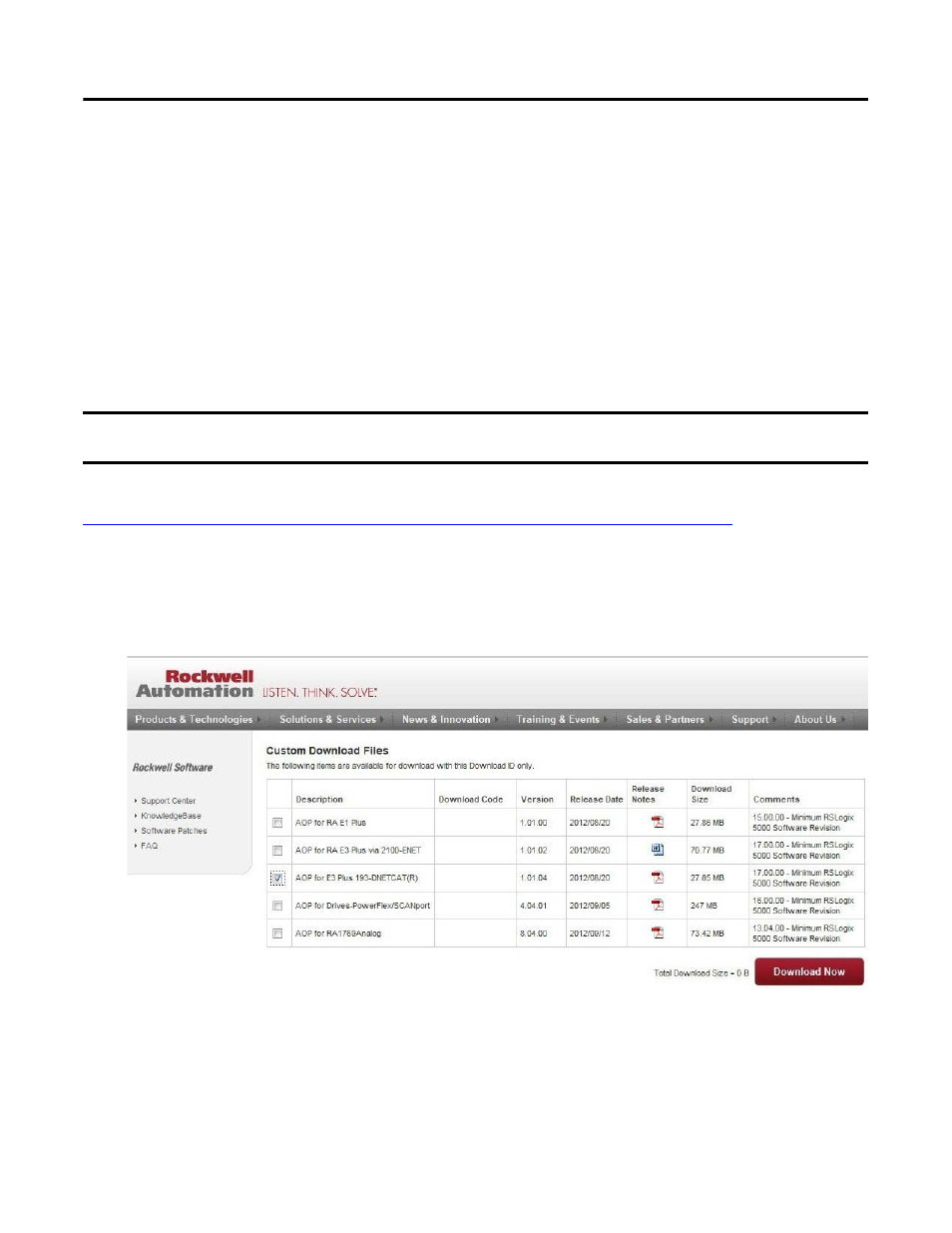

The Custom Download Files dialog box opens.
2.
Check AOP for E3 Plus 193-DNENCAT(R).
3.
Click Download Now and accept the user license agreement.
If prompted to install the Download Manager, allow the installation.
4.
Click the Add-On Profile icon and follow the download instructions.
5.
Extract the AOP zip file and run MPSetup.
IMPORTANT
The E3 Plus Add-On Profiles are independent of RSLogix 5000 software or Logix Designer application releases. Update your E3 Plus
Add-On Profiles to make sure your application runs correctly.
