Rockwell Automation Publication IASIMP-QS019E-EN-P - August 2013
149
System Commissioning
Chapter 6
2.

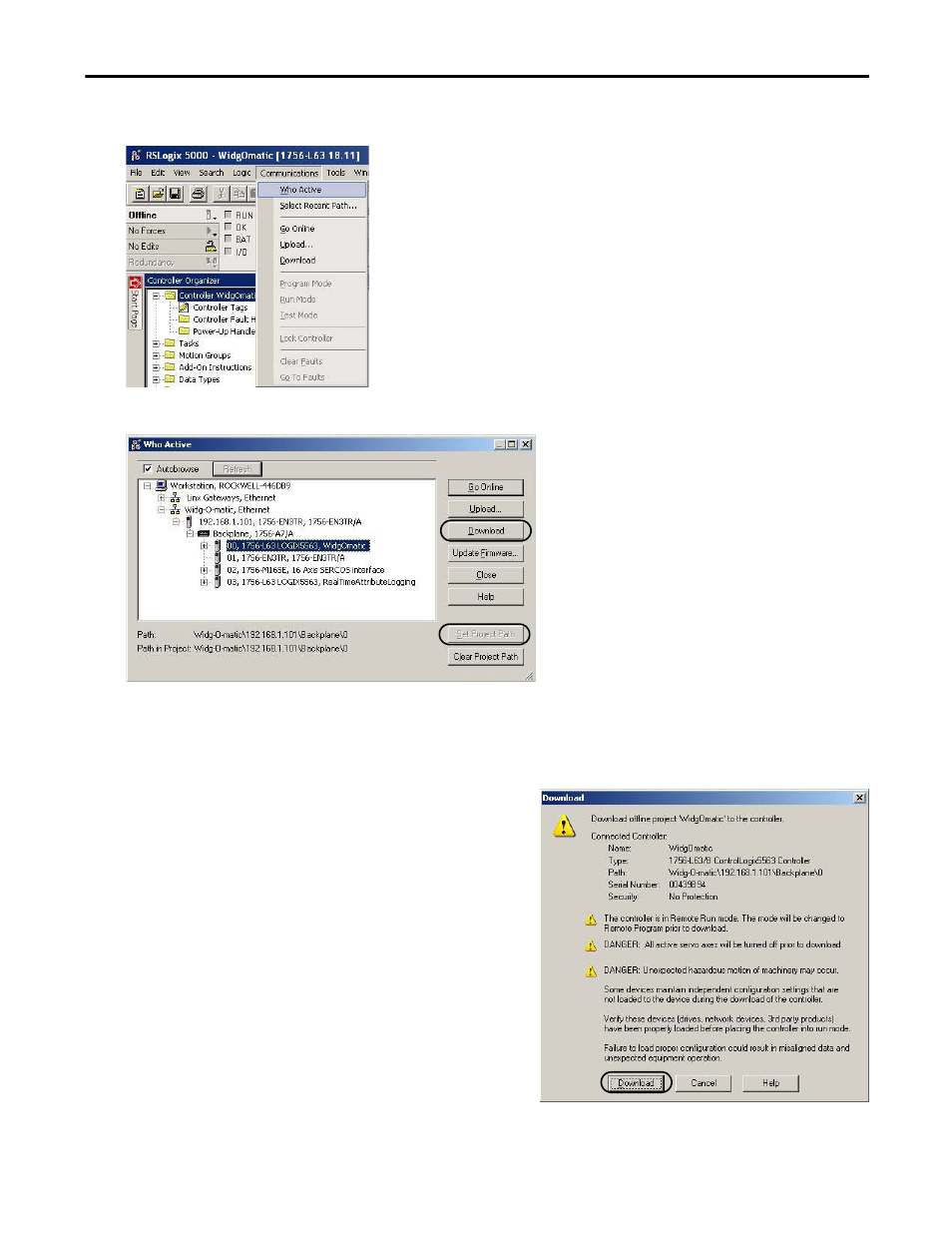

From the Communications menu, choose Who Active.
The Who Active dialog box opens.
3.
Browse to and select your Logix5000 controller and click Set Project Path.
4.
Verify the key switch on your controller module is in the REM (remote) position.
5.
Click Download.
The Download dialog box opens.
6.
Click Download.
7.
From the Communications menu, choose Run mode to
switch the controller to Run mode
.
