Page 261

Rockwell Automation Publication IASIMP-QS019E-EN-P - August 2013
261

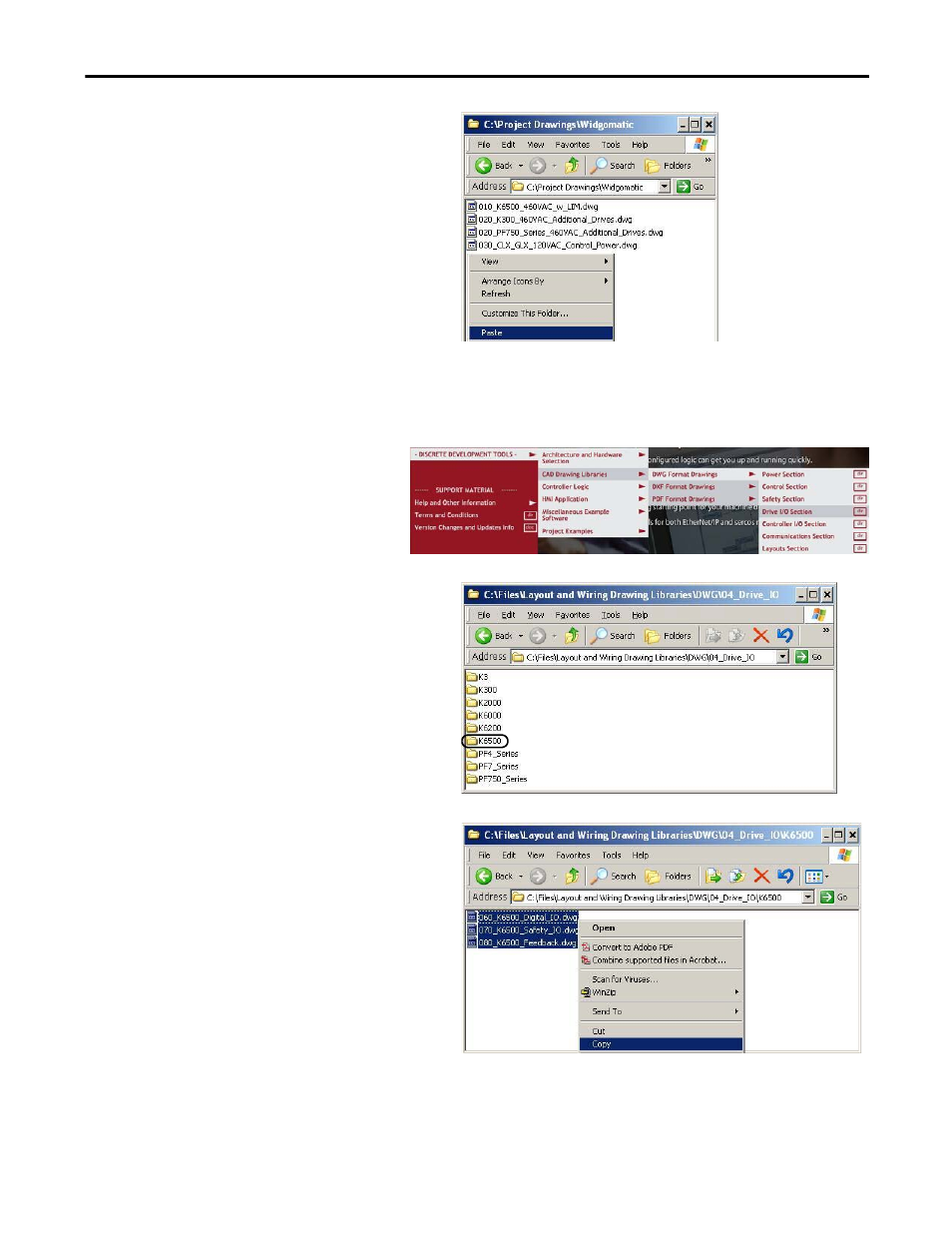

Assemble Project Drawing Set Without the DMAT Wizard
Appendix F
3.
Paste the drawing into your Project Drawings
folder.
Select Drive I/O Drawings
1.
Navigate to the desired (DWG, DXF,
or PDF) file type folder on the toolkit
DVD and select Drive I/O Section.
2.
Double-click the folder matching your
initial drive family.
For the Widg-O-matic machine application
example, the K6500 folder was selected for the
Kinetix 6500 drives.
3.
Copy the drive I/O drawings required for your
specific application.
For the Widg-O-matic machine application
example, all of the drive I/O drawings were
selected.
