Controller, Network, and Device Configuration Without the DMAT Wizard
Appendix G
8.
Replace Final Tag Names with the associated drive and machine names you have already configured.
a. Where applicable, replace _DriveName with the name of PowerFlex drive in I/O tree.
b. Replace _DriveName of _DriveName:I, _DriveName:O, and _DriveName_FP tags with the name your
PowerFlex drive.
c. Replace _MachineName of _MachineName tag with the machine name of your project.
d. Replace _ModuleName of _ModuleName tag with the device name of your drive.
e. If a device module with energy support was selected, there will be additional tags named
_DriveName_BEO (base energy object). Replace _DriveName in all of these tags with the name of your
PowerFlex drive.
For the Widg-O-matic example, _DriveName_BEO was replaced with ConveyorDrive_BEO.

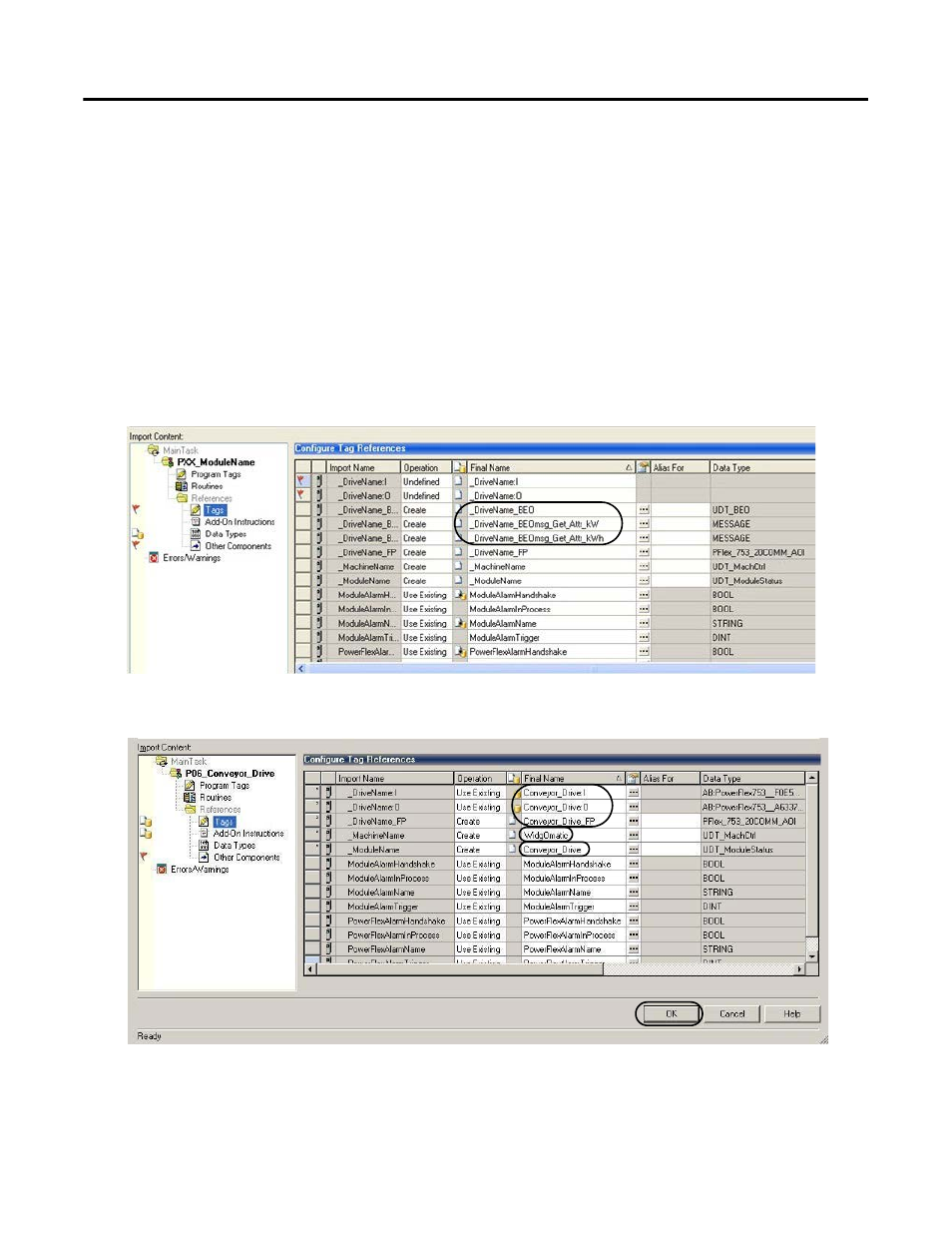

For the Widg-O-matic application example, the following tag names were entered.
