248 Rockwell Automation Publication IASIMP-QS019E-EN-P - August 2013
Appendix E Create and Add BOM Device Modules Without the DMAT Wizard
For the Widg-O-matic application example,
the 400 Class VAC with LIM Initial BOM
file was renamed Widgomatic_BOM.

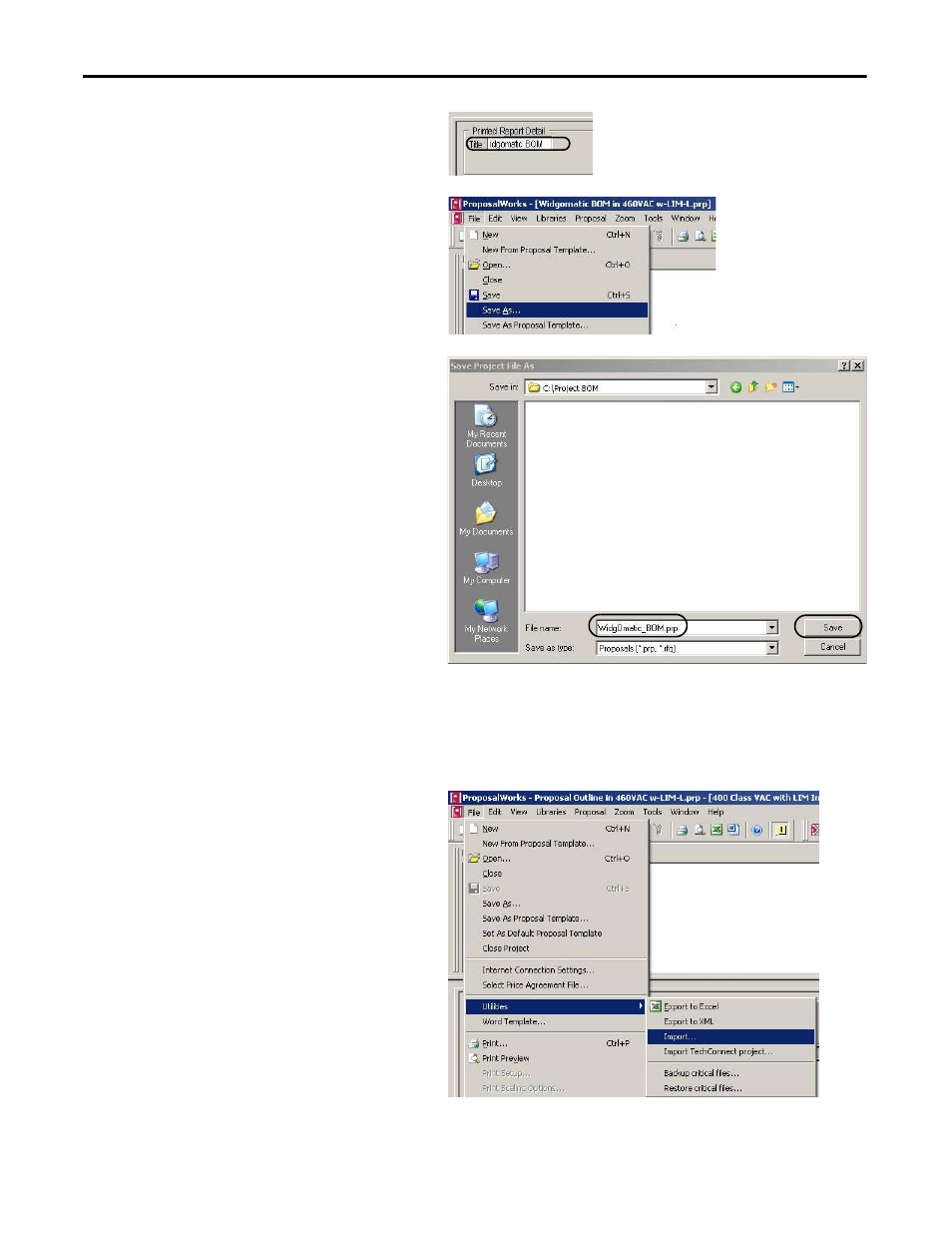

3. Rename and save the BOM project file.
a. Click the File menu and choose Save As.
b. Type a new BOM project file name.
By creating a new BOM project file
specifically for your application, you
preserve the initial toolkit BOM file for
future reference.
In this example, the 400 Class VAC with
LIM Initial BOM file was renamed
WidgOmatic_BOM.
Add BOM Device Modules
Follow these steps to add BOM device modules.
1. Import drive BOM files.
a. Click File and choose Utilities>Import.
The Import Equipment List from File dialog box opens.
