Logix Designer Communication and Controller Configuration
Appendix D
Load the Controller Firmware
1.
Apply input power to the CompactLogix controller power supply.
2.

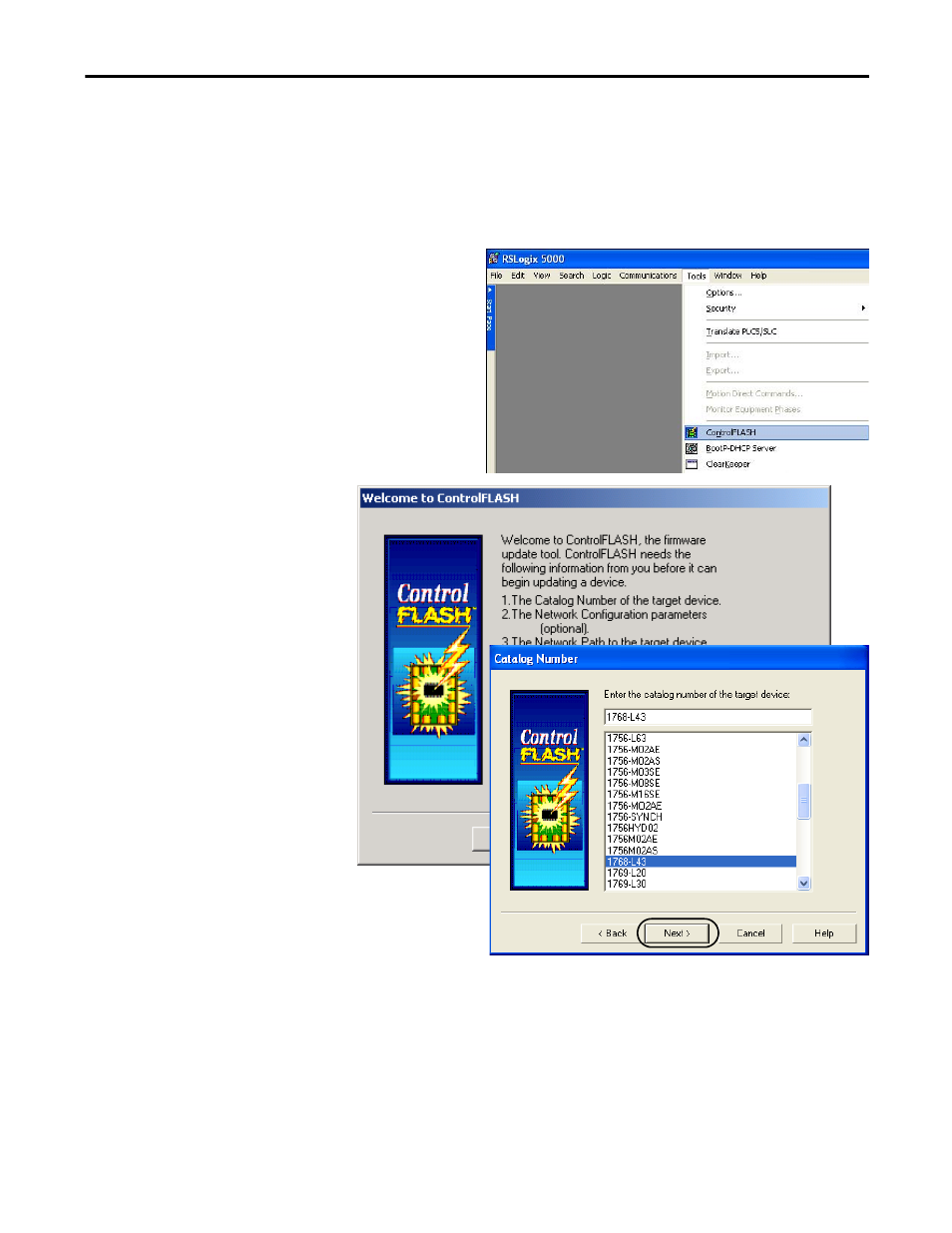

From the Tools menu, select ControlFLASH.
The Welcome to ControlFLASH dialog box
opens.
3.
Click Next.
4.
Select your controller catalog
number.
In this example, 1768-L43 is
the controller catalog number.
The steps to download other
Logix5000 controller firmware
are similar.
5.
Click Next.
TIP
This procedure shows how to load firmware in the controller using a serial connection. It is faster to load the firmware using an
EtherNet/IP connection. For details, see the controller installation instructions.
