Appendix F Assemble Project Drawing Set Without the DMAT Wizard

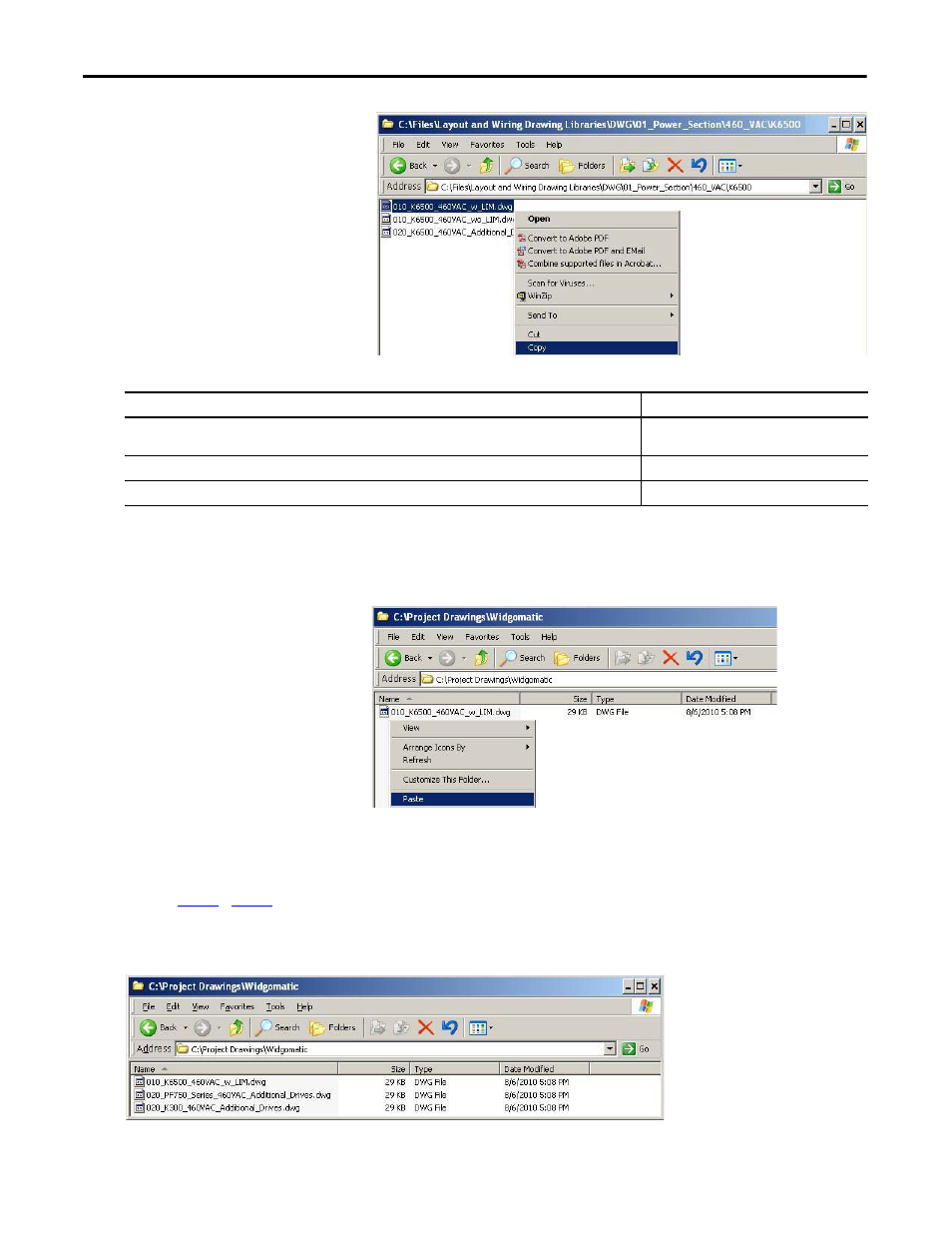

Copy the power drawing for your
drive family based on the Power
Distribution Layout table.
Power Distribution Layout
For the Widg-O-matic machine application example, the Kinetix 6500 drawing with LIM module was
selected. Because the Kinetix 6500 drive is the initial drive family, a LIM module was selected as the main
power distribution component. The LIM module can also supply power to the other drives in the system.
6. Paste the drawing you copied into
the Project Drawings folder.
7. Copy and paste the 020_
xxxx_xxxVAC_Additional_Drives.xxx drawing if you have more than three
drives of the same family and for every four additional drives you have in your system.
8. Repeat step 5 … step 7 for every drive family in your system.
For the Widg-O-matic machine application example, the following drawings were copied to accommodate
the two Kinetix 6500 servo drives, one PowerFlex 753 drive, and one Kinetix 300 drive.
Power Distribution Layout Options Power Drawing
Initial drives including a Bulletin 2094 line interface module (LIM) for main power/control distribution
(includes 3 drives)
010_xxxx_xxxVAC_w_LIM.xxx
Initial drives including traditional main power distribution components (includes 3 drives) 010_xxxx_xxxVAC_wo_LIM.xxx
Additional drive drawings without main power distribution components (includes 4 drives) 020_xxxx_xxxVAC_Additional_Drives.xxx
