FactoryTalk View ME Configuration Chapter 5

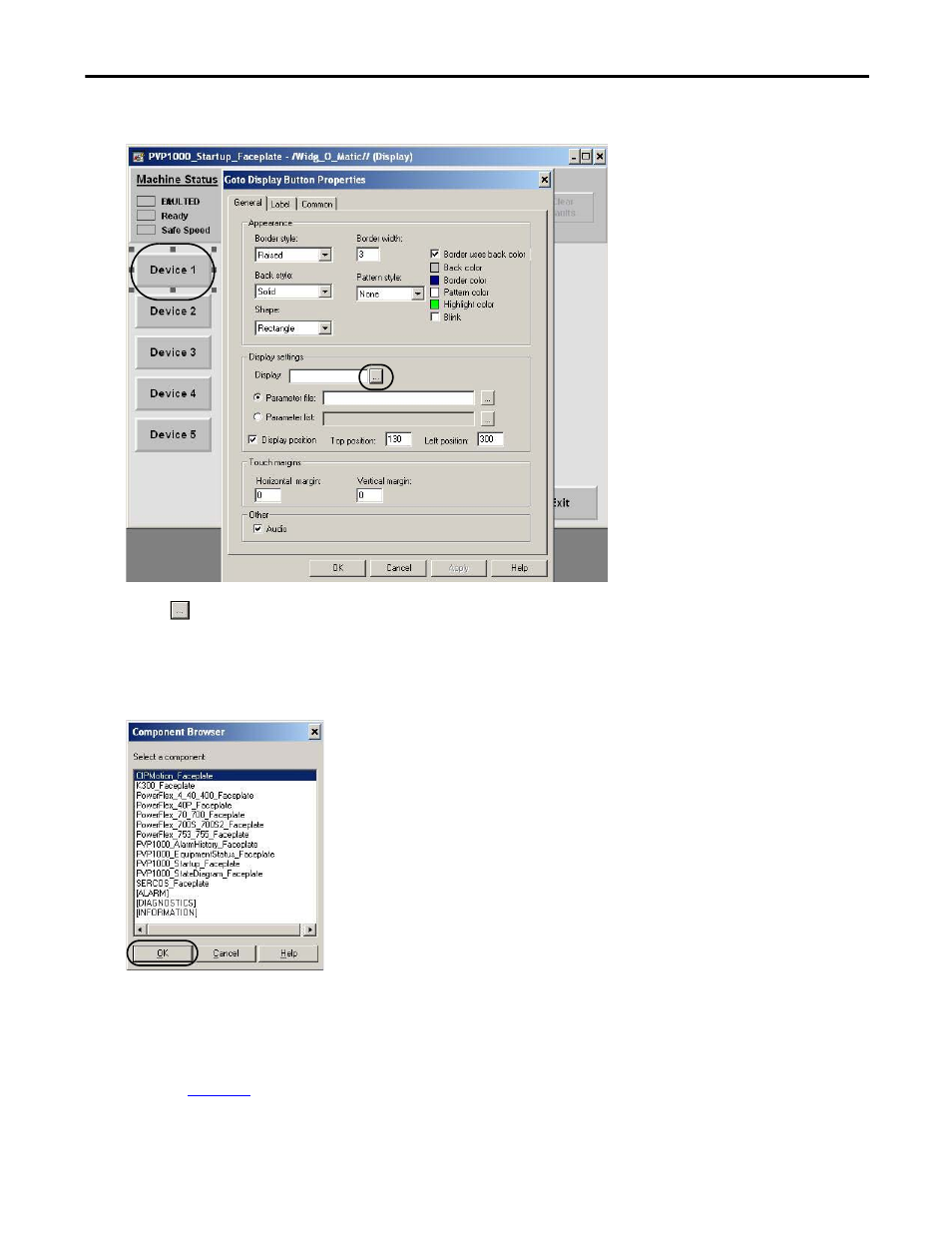

The Goto Display Button Properties dialog box opens.
3. Click to browse for the desired display.
For the Widg-O-matic machine application example, the Device 1 button is selected and configured to
launch a faceplate for the Gantry X device.
The display Component Browser dialog box opens.
4. Select the desired display to launch when this device button is pressed.
For the Widg-O-matic machine application example, the CIPMotion_Faceplate display is selected as it
supports the Gantry X device (Kinetix 6500 drive). Refer to the Determine the required faceplates for your
application based on the Determine the required faceplates for your application based on the table. table.
table on
page 117 for faceplate supported devices.
5. Click OK to close the Component Browser dialog box.
