Rockwell Automation 193 Drives and Motion Accelerator Toolkit Quick Start User Manual
Page 35

Rockwell Automation Publication IASIMP-QS019E-EN-P - August 2013
35
Initial System Configuration Using the DMAT Wizard
Chapter 1
6.
Edit the Low-Voltage Drive configurations.

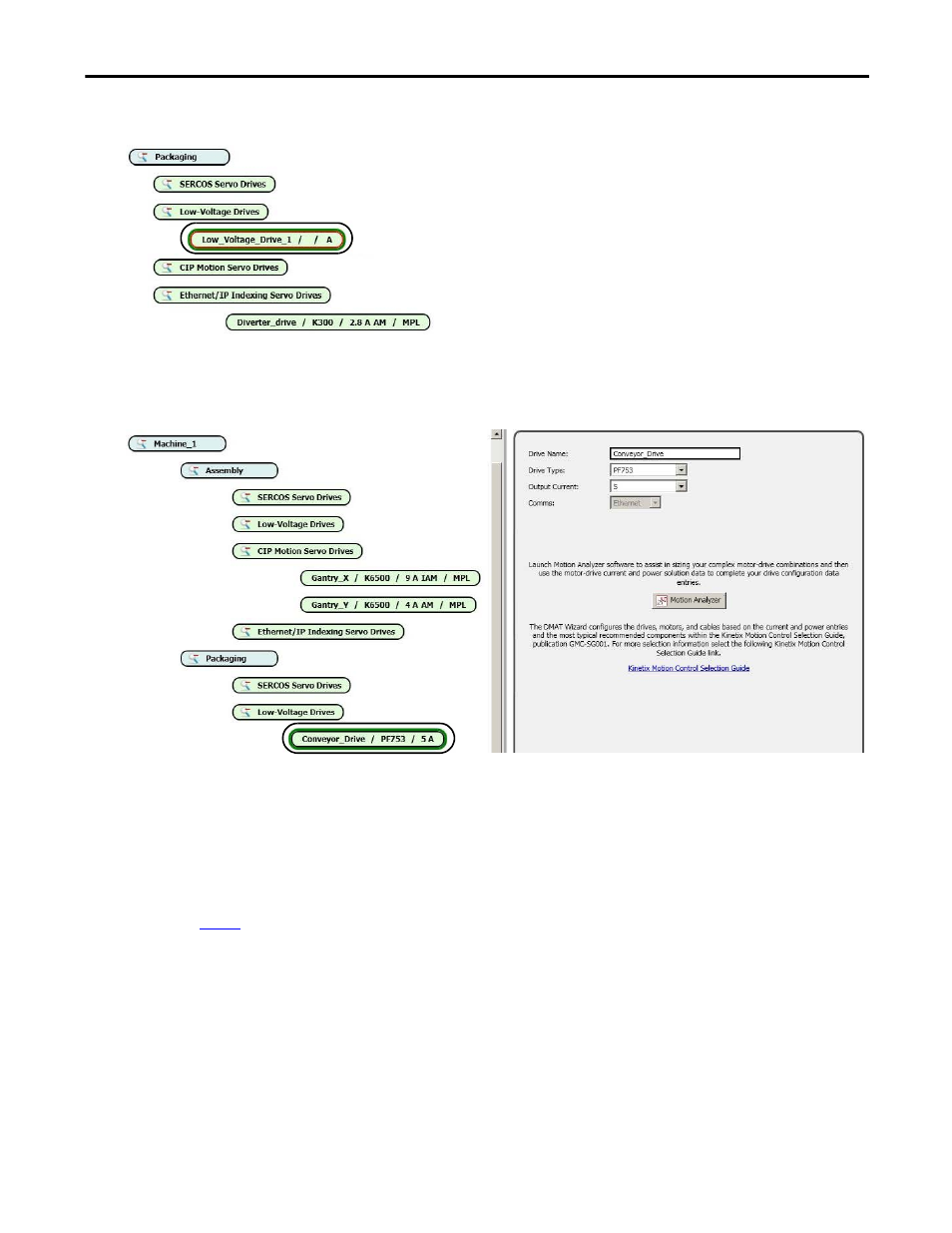

a. Select Low_Voltage_Drive_
x in the project configuration tree.
For the WidgOmatic example, Low_Voltage_Drive_1 was selected. The drive editing window appears
to the right of the project configuration tree.
b. Click the Drive Name edit field and enter the desired drive name.
For the WidgOmatic example, Conveyor_Drive was entered as the initial drive name.
c. From the Drive Type pull-down menu, choose the drive family.
For the WidgOmatic example, the PowerFlex 753 (PF753) drive is selected.
d. Select the appropriate output current for the drive.
e. Repeat
for all of the remaining low-voltage drives in your project.
7.
Edit all electronic overload relays and soft starter modules in your application.
Current and other selection pull-down menus are similar to the drive menus.
