Rockwell Automation Publication IASIMP-QS019E-EN-P - August 2013
67
System Layout and Wiring
Chapter 3
4.
Inspect control section for required control components and proper footprints.
a. Open the panel layout drawing for your application.

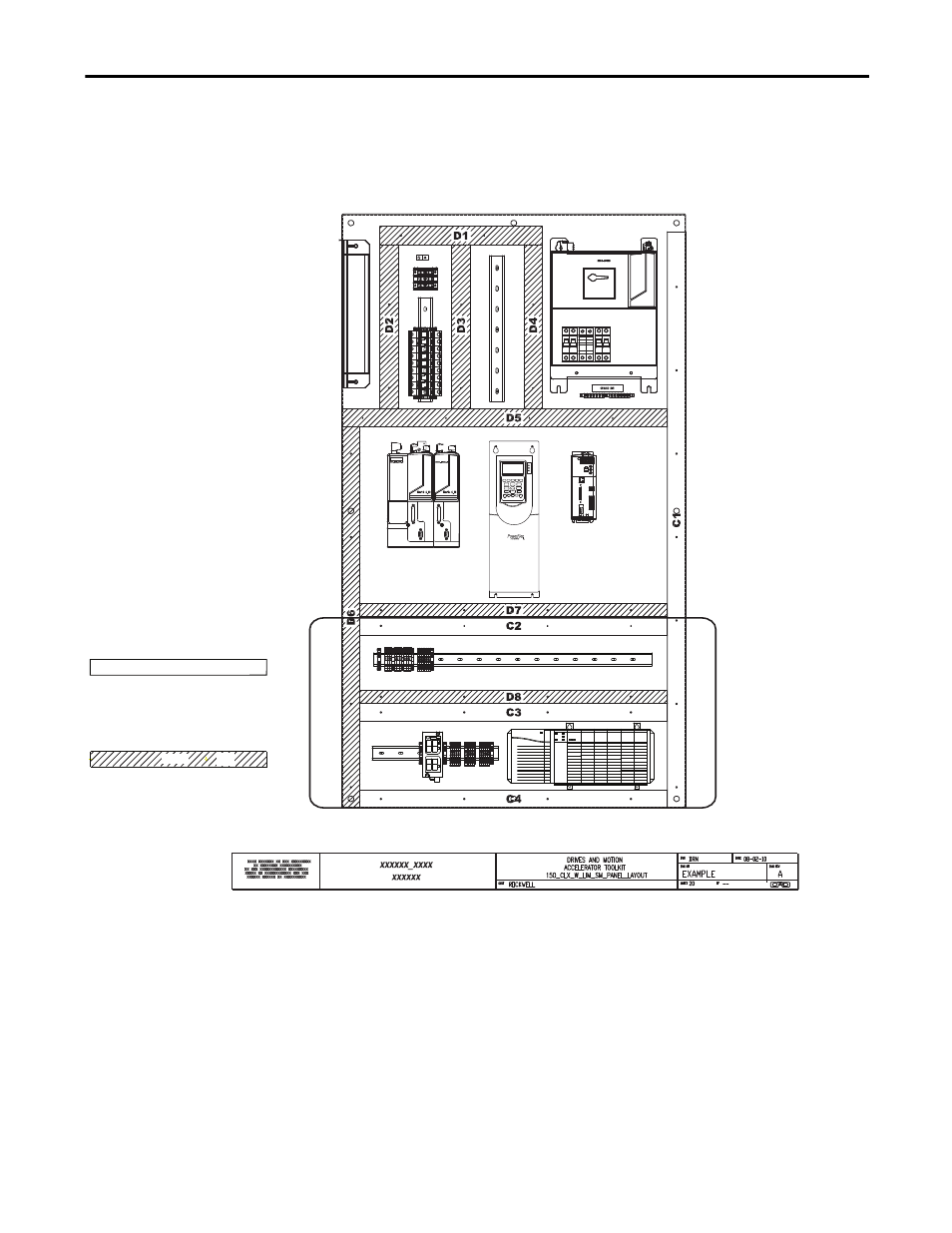

Small Panel Layout Drawing (control)
b. Inspect controller for required processor, I/O chassis, and I/O and communication modules, and add
footprints from the standard library as required.
c. Add any other required control components for your system.
DIRTY
D6
CLEAN
C2
LIM Module
AC Line F
ilt
er
CLEAN wireway for noise sensitive device
circuits.
DIRTY wireway for noise generating
device circuits.
Controller and I/O
Section
