Rockwell Automation Publication IASIMP-QS019E-EN-P - August 2013 187
System Application Guide Chapter 7

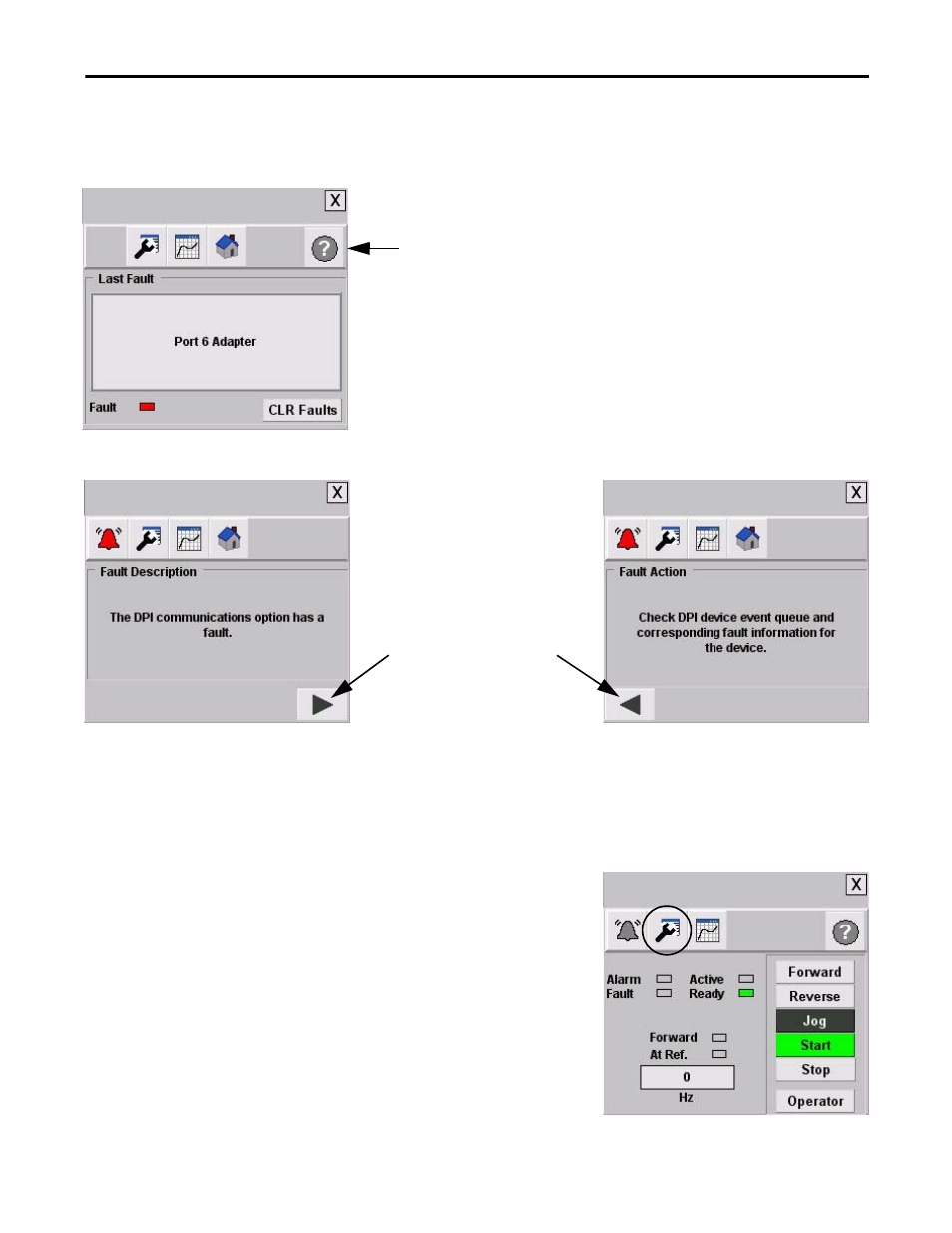

Fault Diagnostic Views
Last Fault View
Fault Description View Fault Actions View
Configuration Views
You can use the Configuration button to edit the faceplate name or device descriptions.
1. Press the Configuration button on the toolbar.
The Configuration button becomes highlighted.
The Last Fault view is displayed when you press
Alarm. The specific error being reported by the
module is indicated.
PowerFlex Drive
Help Button
Press Help to go to Fault Description
views.
PowerFlex Drive
Press arrows to toggle between
display views.
This diagnostic information is triggered by the
reported module error code. The input and output
error code information provided is in accordance
with the fault descriptions and actions found in the
drive specific user manual.
PowerFlex Drive
PowerFlex Drive
