Page 161: Start-up routines

Rockwell Automation Publication IASIMP-QS019E-EN-P - August 2013
161
System Commissioning
Chapter 6
Commissioning PowerFlex 5-class Drives
These commissioning procedures apply to PowerFlex 525 AC drives.
For more information on drive commissioning, refer to the appropriate user manual listed in
.
Apply Power to the Drive
Apply single or three-phase power to the respective PowerFlex 525 AC drive.
Status Indicators
Verify that the drives are ready.

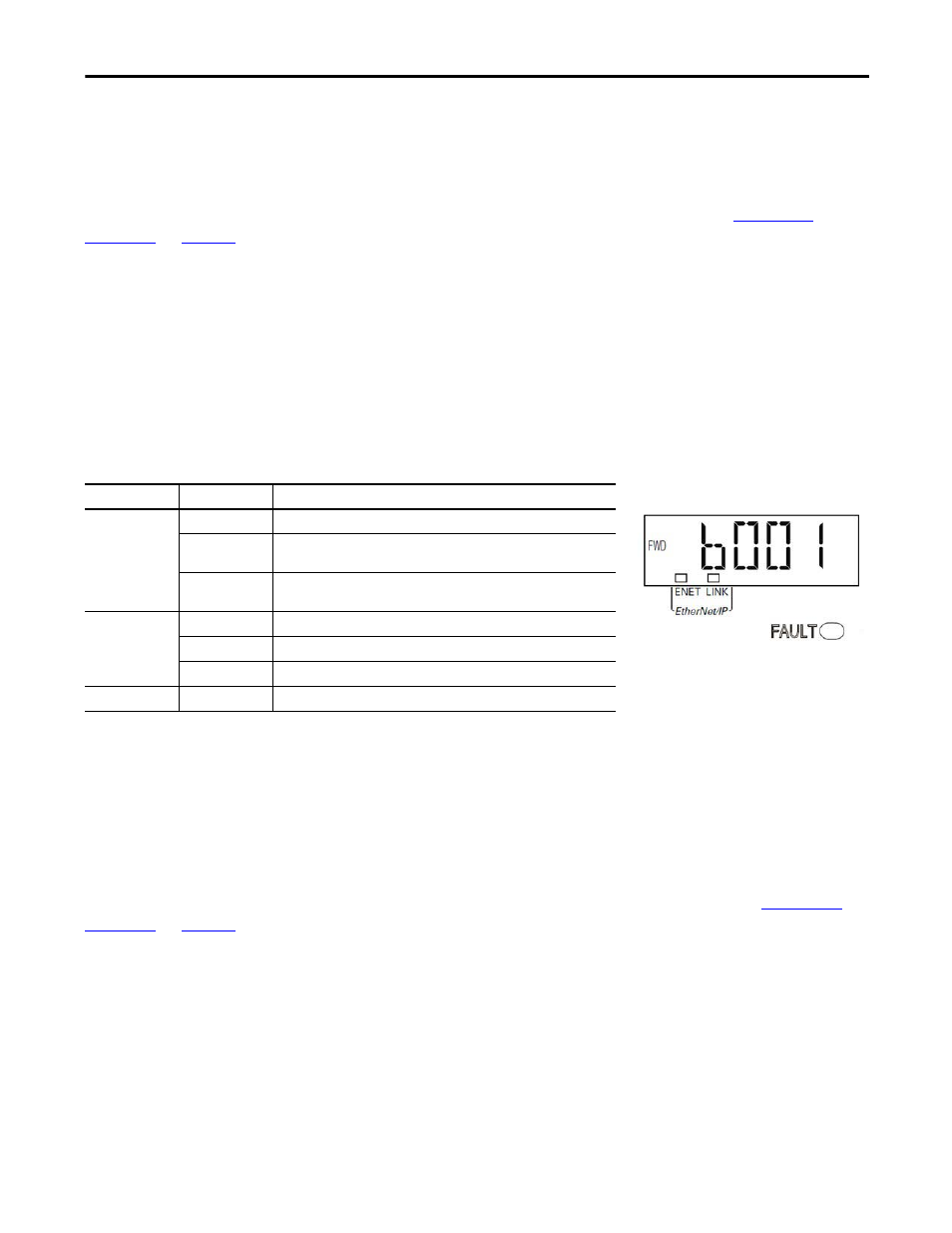

PowerFlex 525 Status Indicators
Start-up Routines
The drive integral keypad and LCD display can assist in configuration and start-up by organizing the commonly
used parameters into the basic group. A software-based start-up wizard is available in Connected Components
Workbench™ software, or with the RSLogix 5000 / Studio 5000 Add-On Profile (AOP) for the PowerFlex 525
AC drive. The start-up wizard steps you through configuration and tuning.
For more information on the PowerFlex 525 drives, refer to the appropriate user manual listed in
.
Display
Display State
Description
ENET
Off
Adapter is not connected to the network.
Steady
Adapter is connected to the network and the drive is controlled through
Ethernet.
Flashing
Adapter is connected to the network, but the drive is not controlled through
Ethernet.
LINK
Off
Adapter is not connected to the network.
Steady
Adapter is connected to the network, but not transmitting data.
Flashing
Adapter is connected to the network and transmitting data.
FAULT
Flashing red
Indicates the drive is faulted.
PowerFlex 525 Status Indicators
