Rockwell Automation 193 Drives and Motion Accelerator Toolkit Quick Start User Manual
Page 320

320
Rockwell Automation Publication IASIMP-QS019E-EN-P - August 2013
Appendix G
Controller, Network, and Device Configuration Without the DMAT Wizard
21.

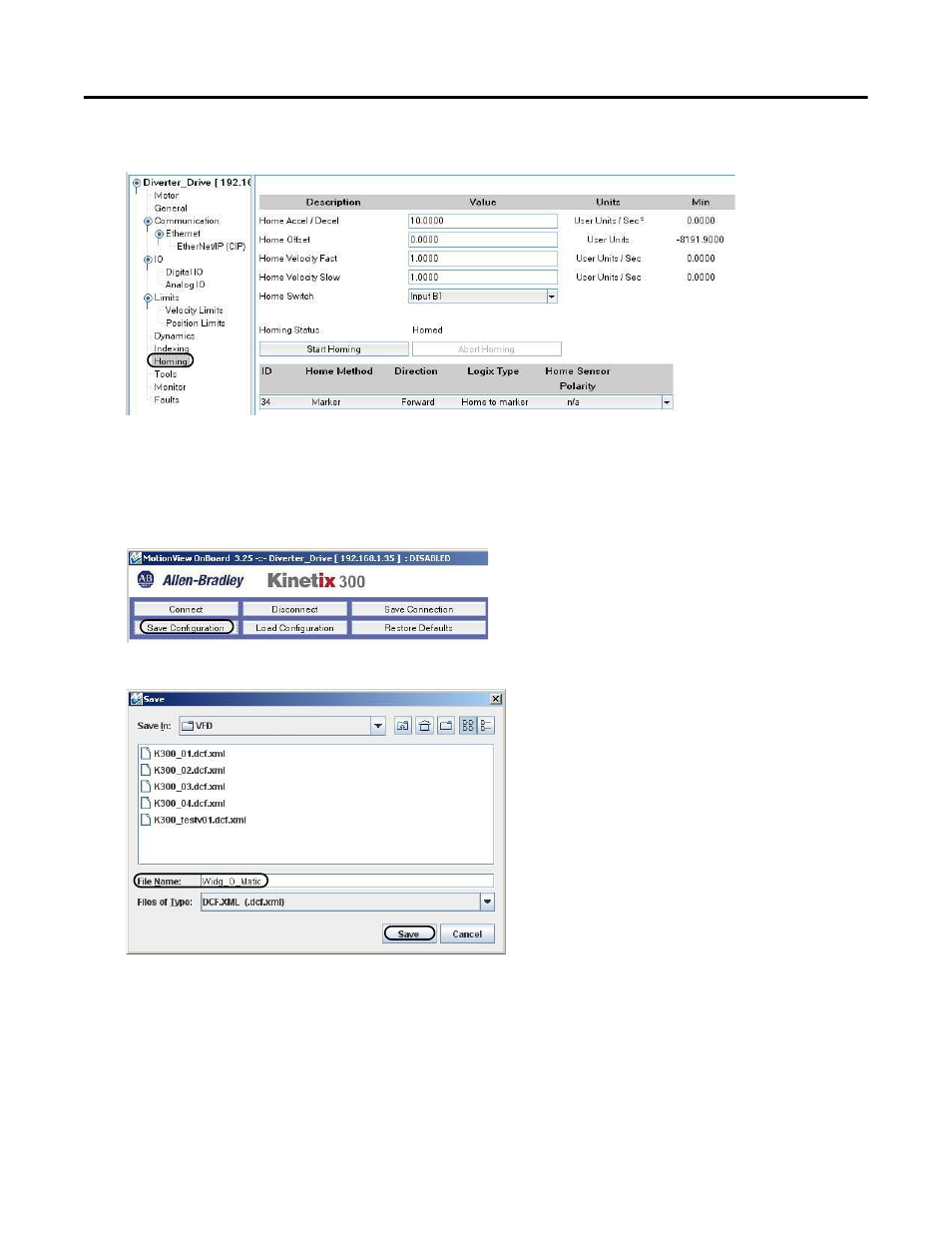

Select Homing in the drive organizer.
22.
Enter values for the Homing parameters according to your application.
The values shown were used to configure the homing parameters for the Kinetix 300 demo box used in the
Widg-O-matic application example.
23.
From the MotionView menu bar, click Save Configuration.
The Save dialog box opens.
24.
Enter a file name.
For the Widg-O-matic application example, the file name is Widg_O_Matic.
25.
Click Save.
