Rockwell Automation Publication IASIMP-QS019E-EN-P - August 2013
135
FactoryTalk View ME Configuration
Chapter 5
10.

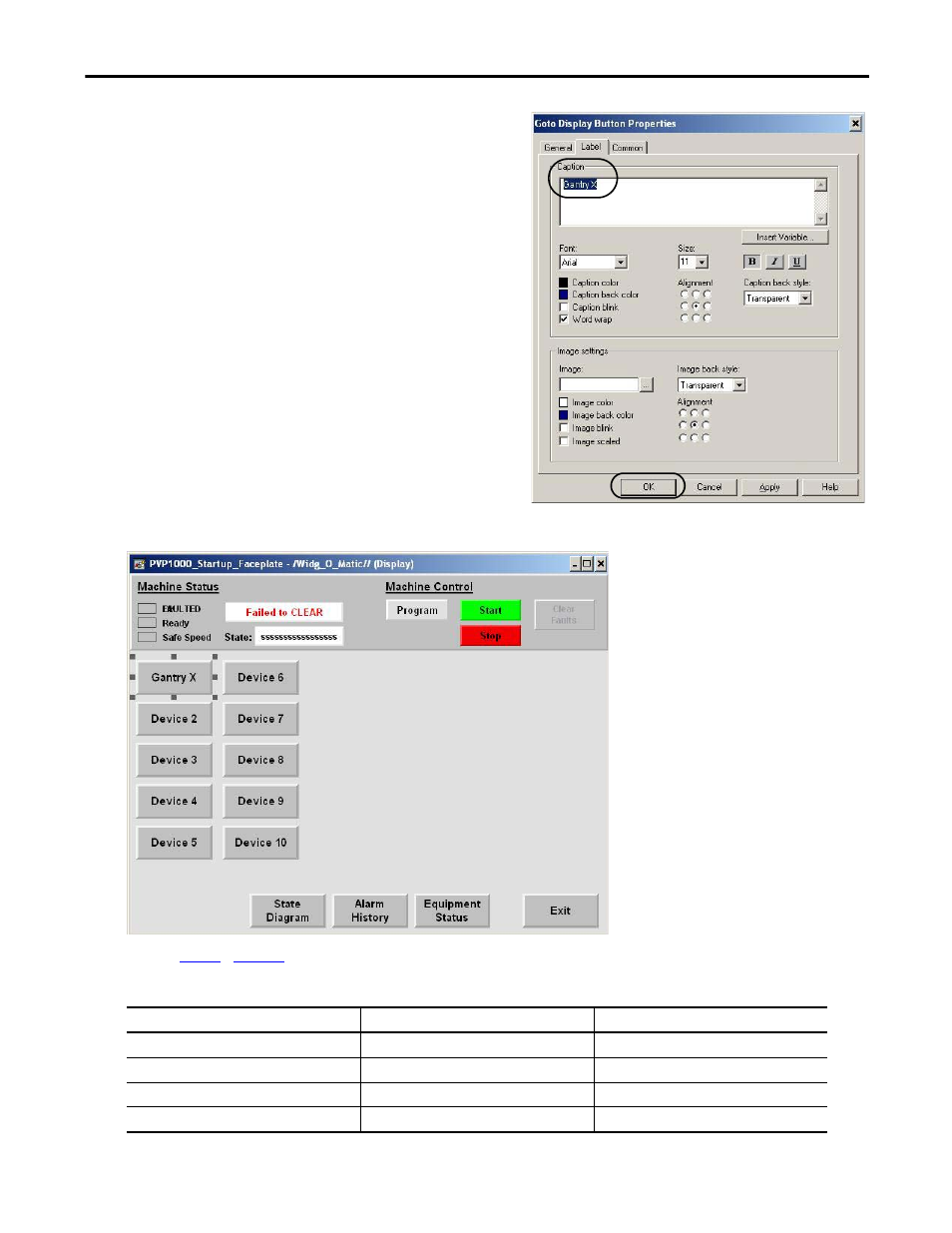

The Label tab dialog box opens.
11.
Type the desired text in Caption field.
For the Widg-O-matic machine application example,
Gantry X is entered.
12.
Click OK to save button properties.
The display updates with button changes. Device 1 is now Gantry X.
13.
for each Goto Display Button required for your application.
For the Widg-O-matic machine application example, the four Goto display buttons were configured.
Device Goto Display Button
Display Setting
Parameter Setting
Gantry X
CIPMotion_Faceplate
Gantry_X_Axis
Gantry Y
CIPMotion_Faceplate
Gantry_Y_Axis
Conveyor
PowerFlex_753_755_Faceplate
Converyor_Drive
Diverter
K300_Faceplate
Diverter_Drive
