Add Parameter Files
1.
Determine required parameter files for your application.
Refer to the Determine the required faceplates for your application based on the Determine the required
faceplates for your application based on the table. table. table on
for the parameter file required
for each faceplate.
2.

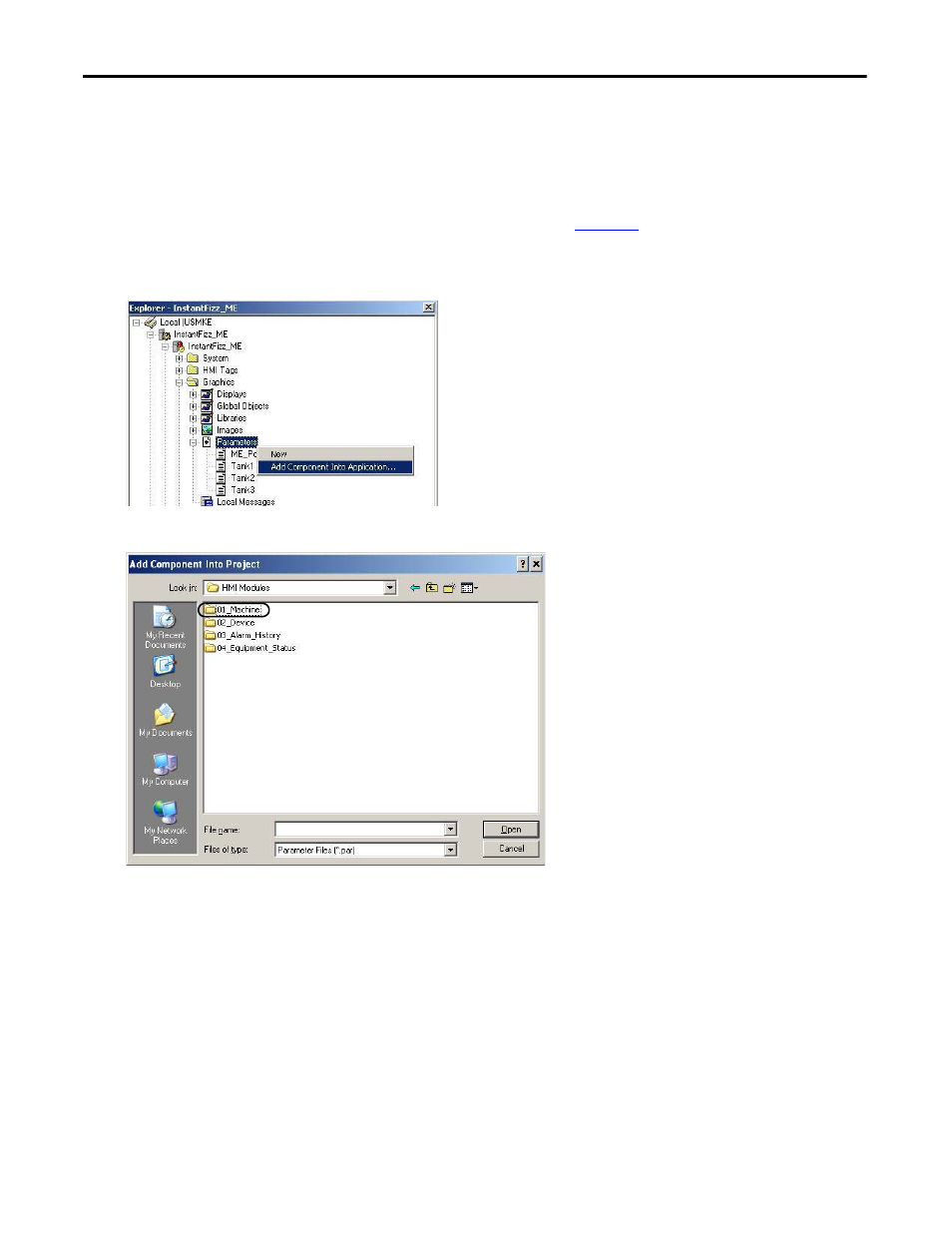

Right-click Parameters within the Graphics folder and select Add Component Into Application.
3.
Navigate to the HMI Modules folder within the toolkit’s files folder.
Your personal computer’s harddrive path is
C:\Program Files\RA_Simplification\DMAT\B-Files\5-HMI\ME\HMI Modules.
4.
Select the folder representing the type of the first parameter you desire to add.
For this example, the 01_Machine folder was selected for the Startup_Parameter supporting the
PVP1000_Startup_Faceplate.
