Chapter 5
FactoryTalk View ME Configuration
Restore and Open a Preconfigured HMI Application
Follow these steps to restore the preconfigured HMI file and open in FactoryTalk View Studio software.
1.
Navigate to the HMI application files within the toolkit’s file folder and open either the
PanelView Plus 1000 or PanelView Plus 600 folder, based on the terminal size and faceplate requirements
of your application.
Your personal computer’s harddrive path is
C:\Program Files\RA_Simplification\DMAT\B-Files\5-HMI\ME\HMI Applications.
For the Widg-O-matic machine application example, the PanelView Plus 1000 folder was selected.

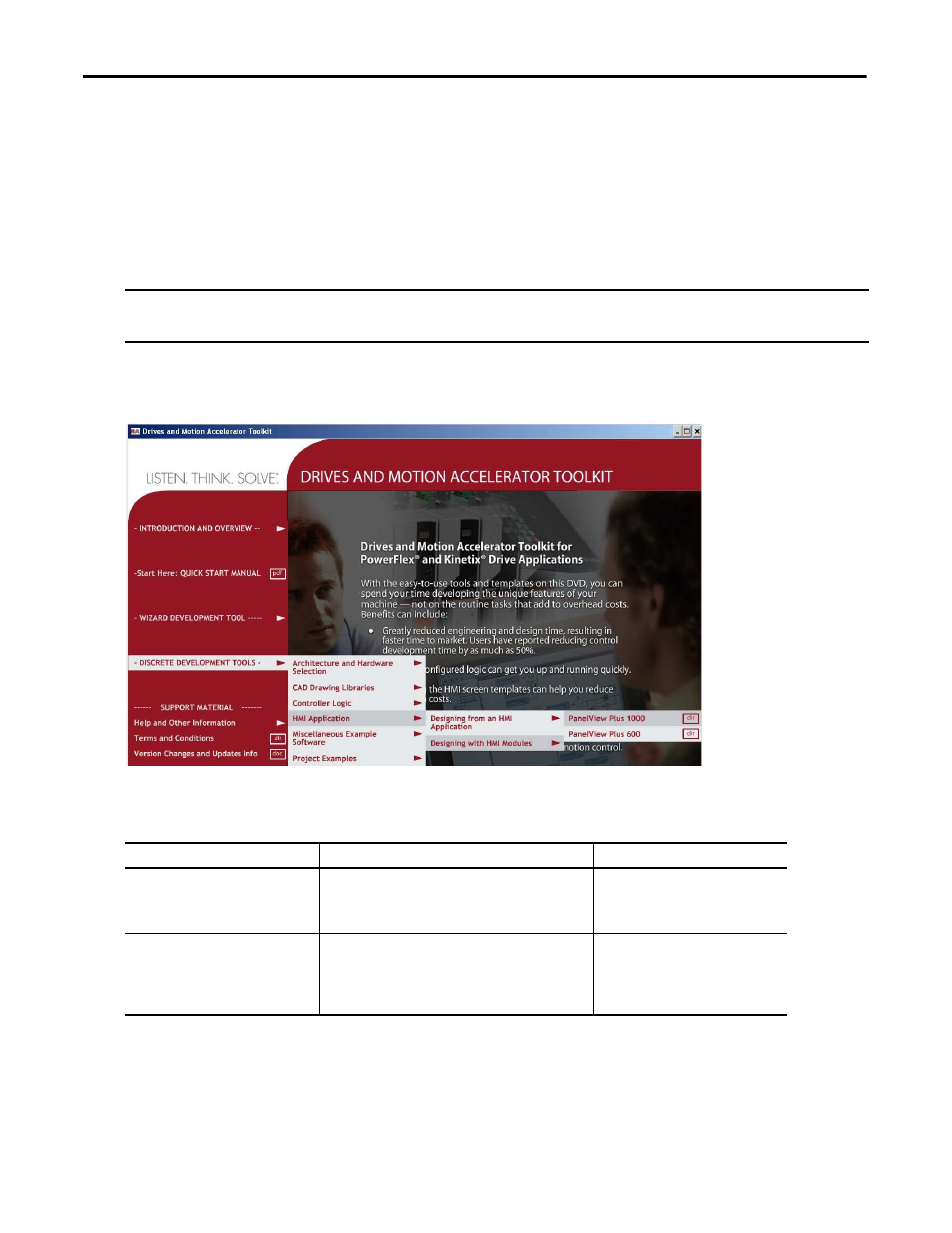

PanelView Plus Terminal and Faceplates Compatibility
2.
Double-click the PVP
xxxx_Application.apa archive file.
For the Widg-O-matic machine application example, the PVP1000_Application.apa file was opened.
IMPORTANT
The Equipment Status faceplate is compatible with PanelView Plus 700 or larger terminals. To take full advantage of all
faceplates, choose the PanelView Plus 1000 folder.
Application Folder
PanelView Plus Terminals Supported
Faceplates Displays
PVP600
• PanelView Plus 400
• PanelView Plus 600
• Machine Startup Display
• Machine State Diagram Display
• All Device Displays
• Alarm History Display
PVP1000
• PanelView Plus 700
• PanelView Plus 1000
• PanelView Plus 1250
(1)
• PanelView Plus 1500
(1) The PanelView Plus 1000 Machine, Alarm History, and Equipment Status faceplate displays are sized at 640x480 (VGA) resolution. If full-sized displays are desired, open
display, select all (objects), group, and resize group. Some text editing for new display size may also be required.
• Machine Startup Display
• Machine State Diagram Display
• All Device Displays
• Alarm History Display
• Equipment Status Display
