System Layout and Wiring
Chapter 3
3.
Add standard or unique I/O devices and connections required for your application.

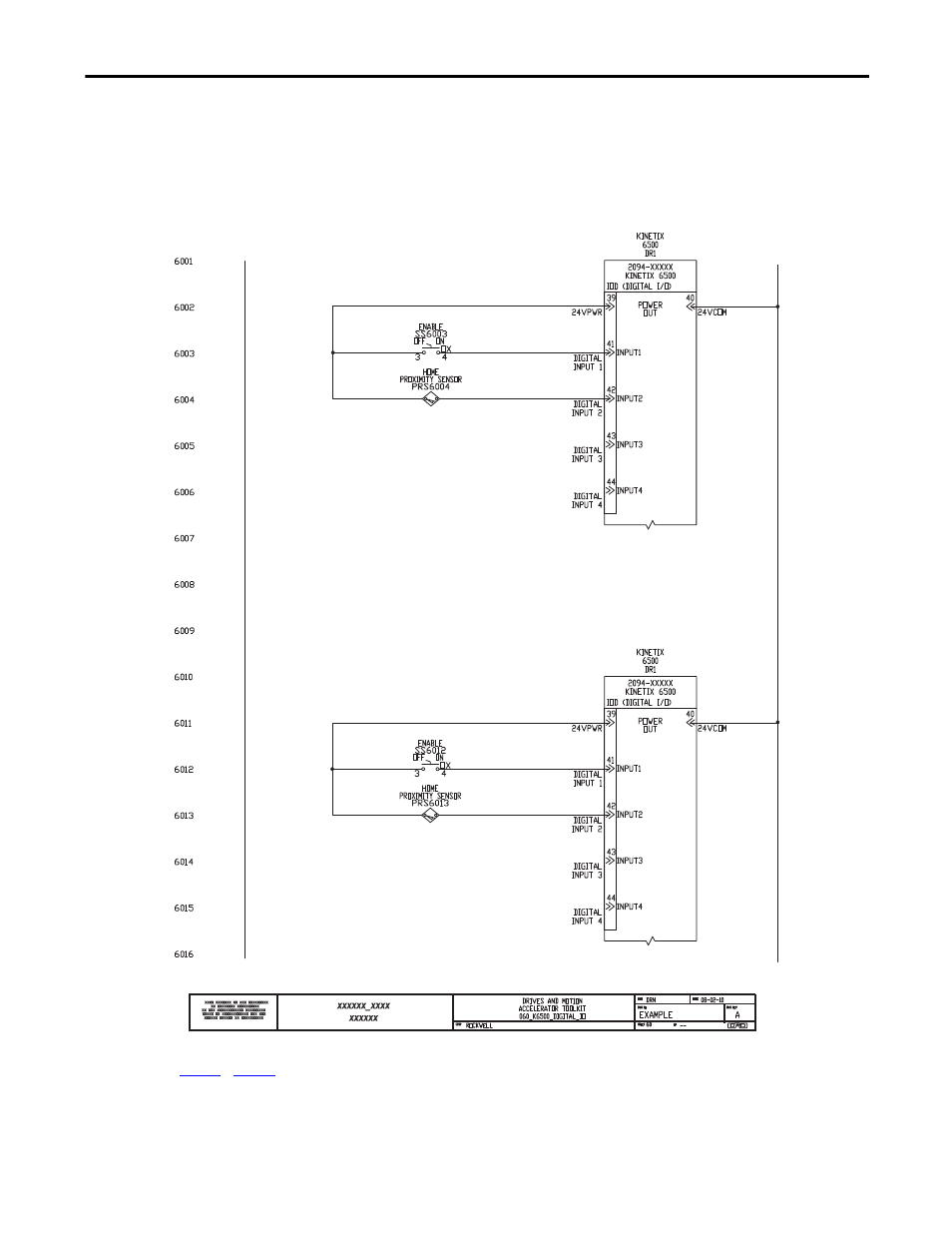

For the Widg-O-matic machine application example, the Enable on-off switches and Home proximity
switches are added to both Kinetix 6500 drives (input 1 and 2 respectively).
Kinetix 6500 Drives (add digital I/O devices)
4.
for all I/O drawings within your project.
