Rockwell Automation 193 Drives and Motion Accelerator Toolkit Quick Start User Manual
Page 231

Rockwell Automation Publication IASIMP-QS019E-EN-P - August 2013
231
Add Other Devices to the Equipment Status Faceplate
Appendix C
8.

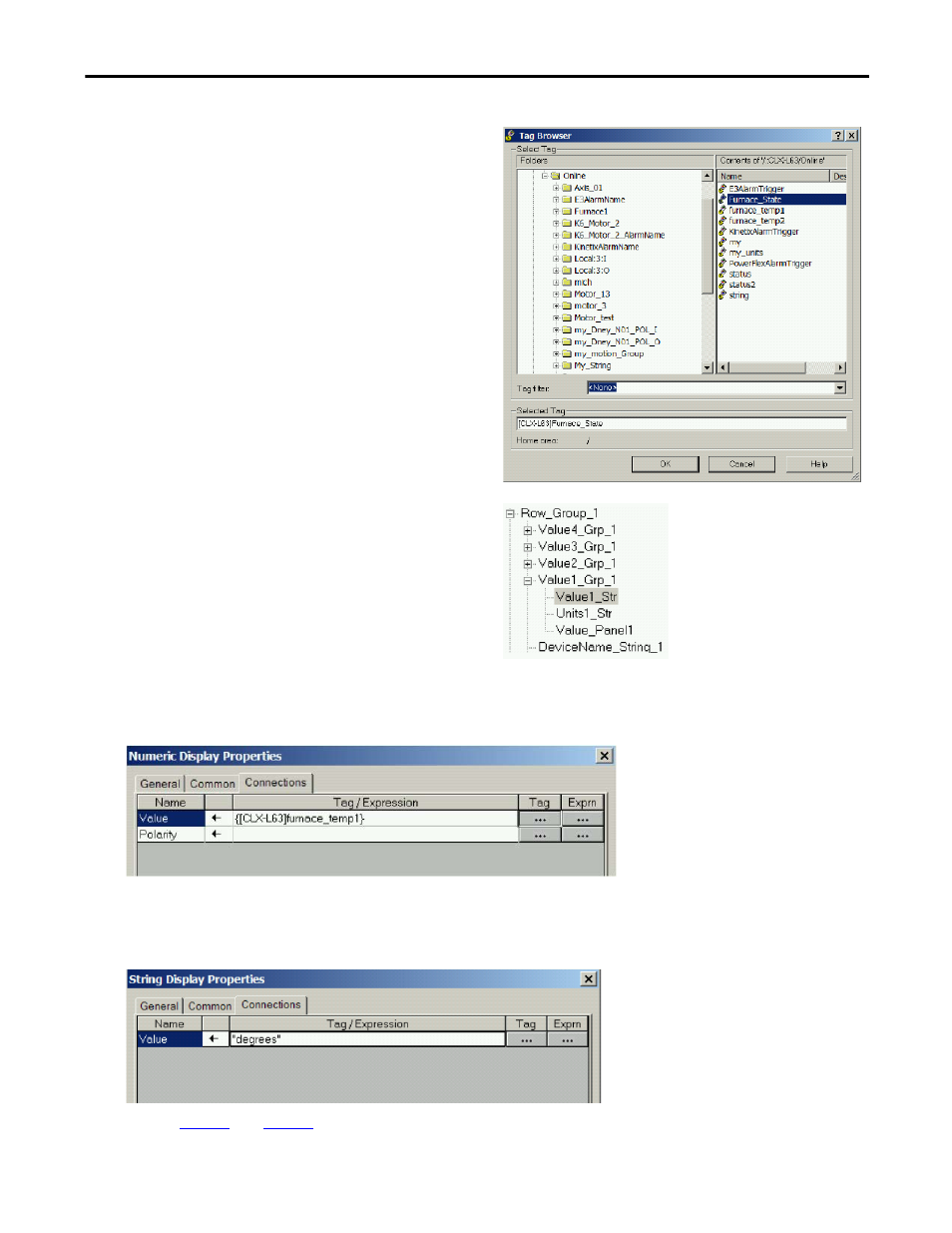

Click the Connections tab and assign a device tag to
the MSI by clicking the Tag browser.
9.
For your specific application, you may need to
consider deleting any states you are not using to
avoid any unwanted captions being displayed.
Lastly, there are four Value groups for each row that
contain a numeric display and a string object to
display units that you can configure.
10.
Expand the Value1_Grp group.
11.
Double-click the Value1_Str object to open its properties. Click the Connections tab and assign a tag to
the Numeric Display object.
12.
Double-click the Units1_Str object to open its properties. Click the Connections tab and assign a tag in
the controller that contains a String for the units, or simply type in a static sting by enclosing in quotes. In
this example, “degrees” is the tag name.
13.
and
for each Value
x_Grp group in your row.
