Appendix E
Create and Add BOM Device Modules Without the DMAT Wizard

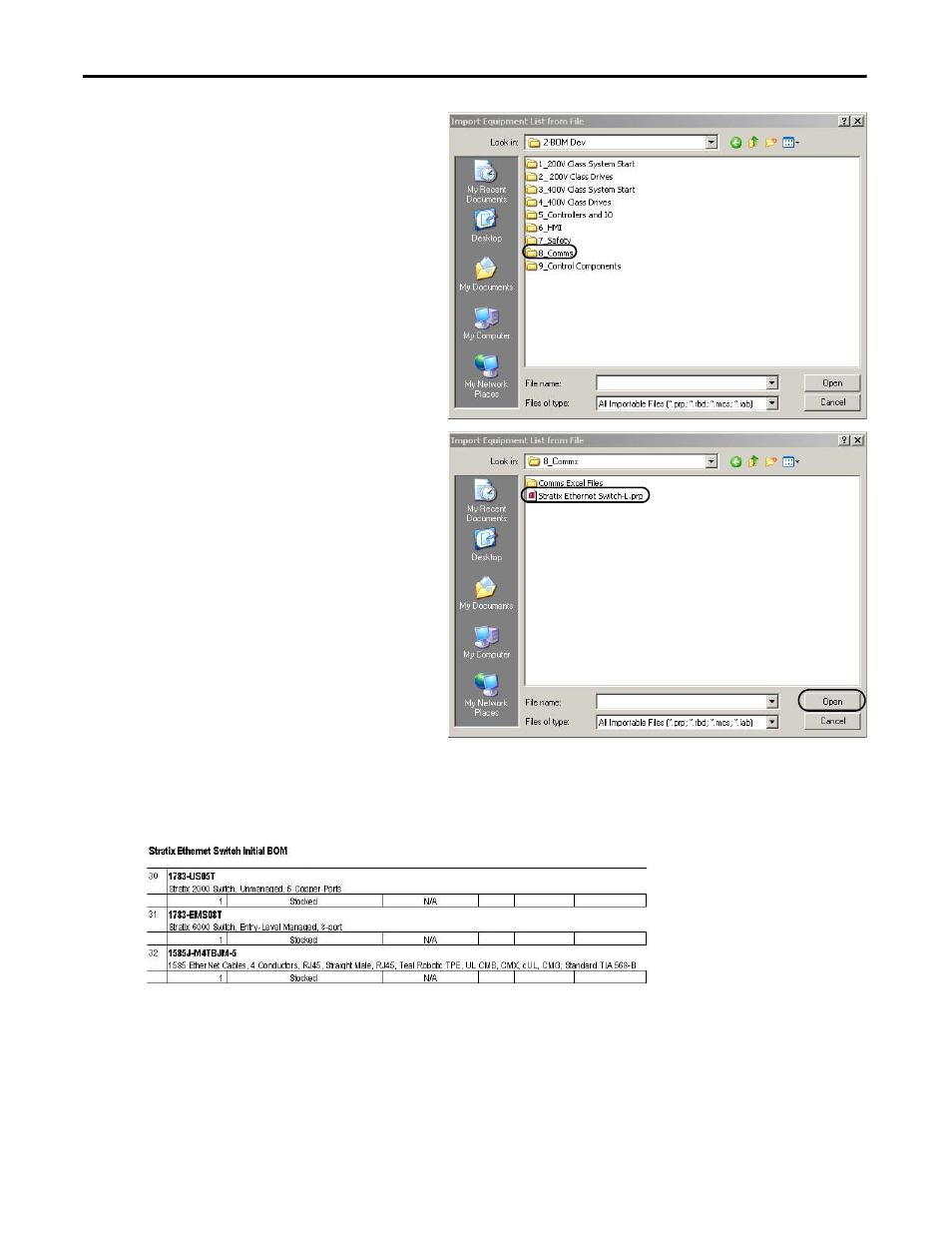

b. Navigate to the 2-BOM Dev folder
within the toolkit’s Files folder.
Your personal computer’s harddrive path
is C:\Program Files\RA_Simplification\
DMAT\B-Files\2-BOM Dev.
c. Double-click the 8_Comms folder.
d. Select the Stratix Ethernet Switch-L.prp
file.
e. Click Open.
The Import Completion Confirmation dialog box opens.
f. Click OK.
The Ethernet switch and cable hardware is added to the end of the initial BOM file.
6.
Save your assembled BOM file.
