Page 56

56
Rockwell Automation Publication IASIMP-QS019E-EN-P - August 2013
Chapter 3
System Layout and Wiring
Edit Drive, Controller, and Safety I/O Drawings
1.
Open all drive, controller, and safety I/O drawings as required for your application.
For the Widg-O-matic machine application example, the 060_K6500_Digital_IO.dwg file is opened.
2.
Delete devices not used in your project.
For the Widg-O-matic machine application example, only two Kinetix 6500 drives are required, so the
third and fourth I/O blocks are deleted.

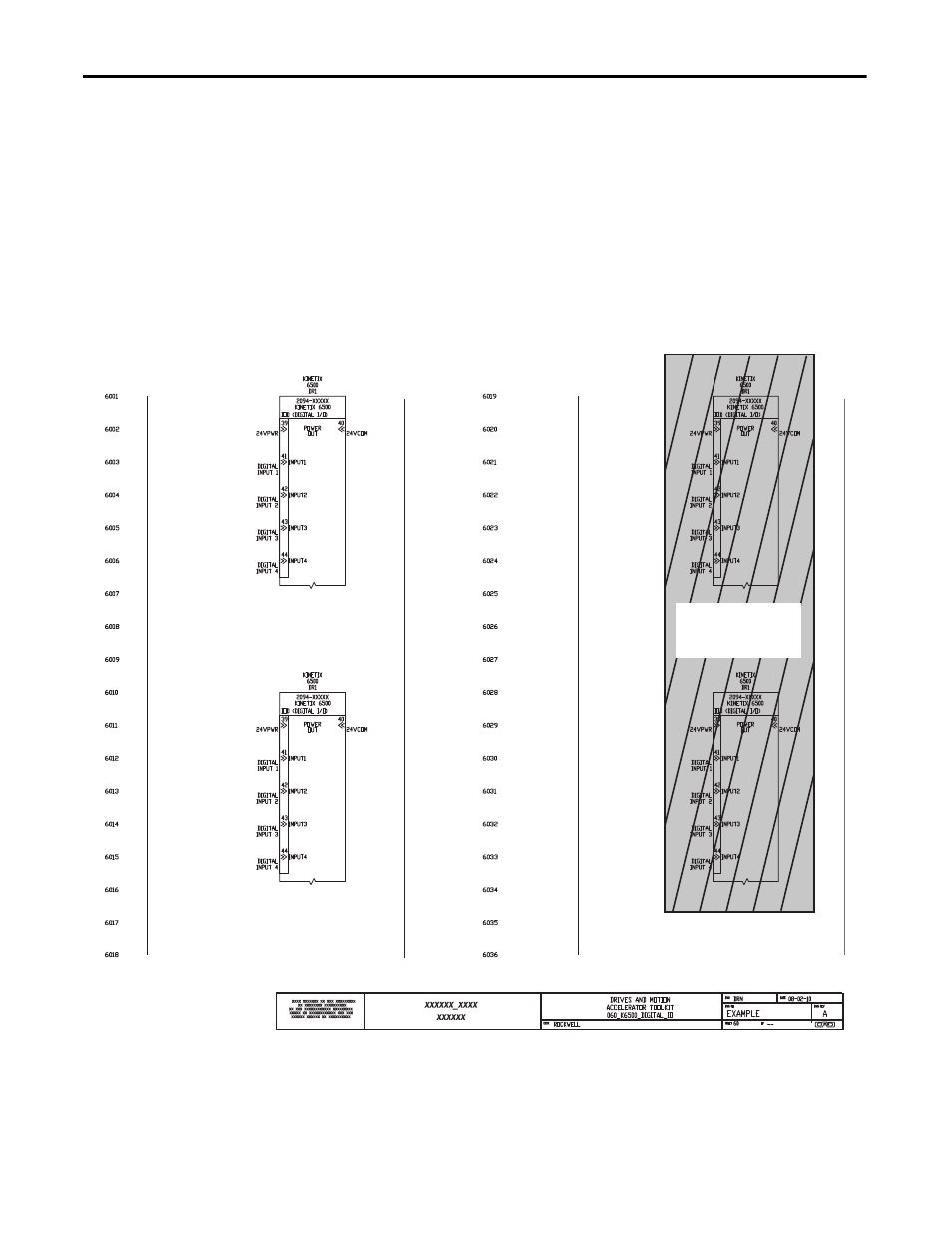

Kinetix 6500 Digital I/O Example
Select and delete these drive
I/O blocks.
