Appendix G Controller, Network, and Device Configuration Without the DMAT Wizard
Import and Configure PowerFlex Standard Drive Modules
Follow these steps to add preconfigured PowerFlex standard drive device logic modules to your Logix Designer
project.

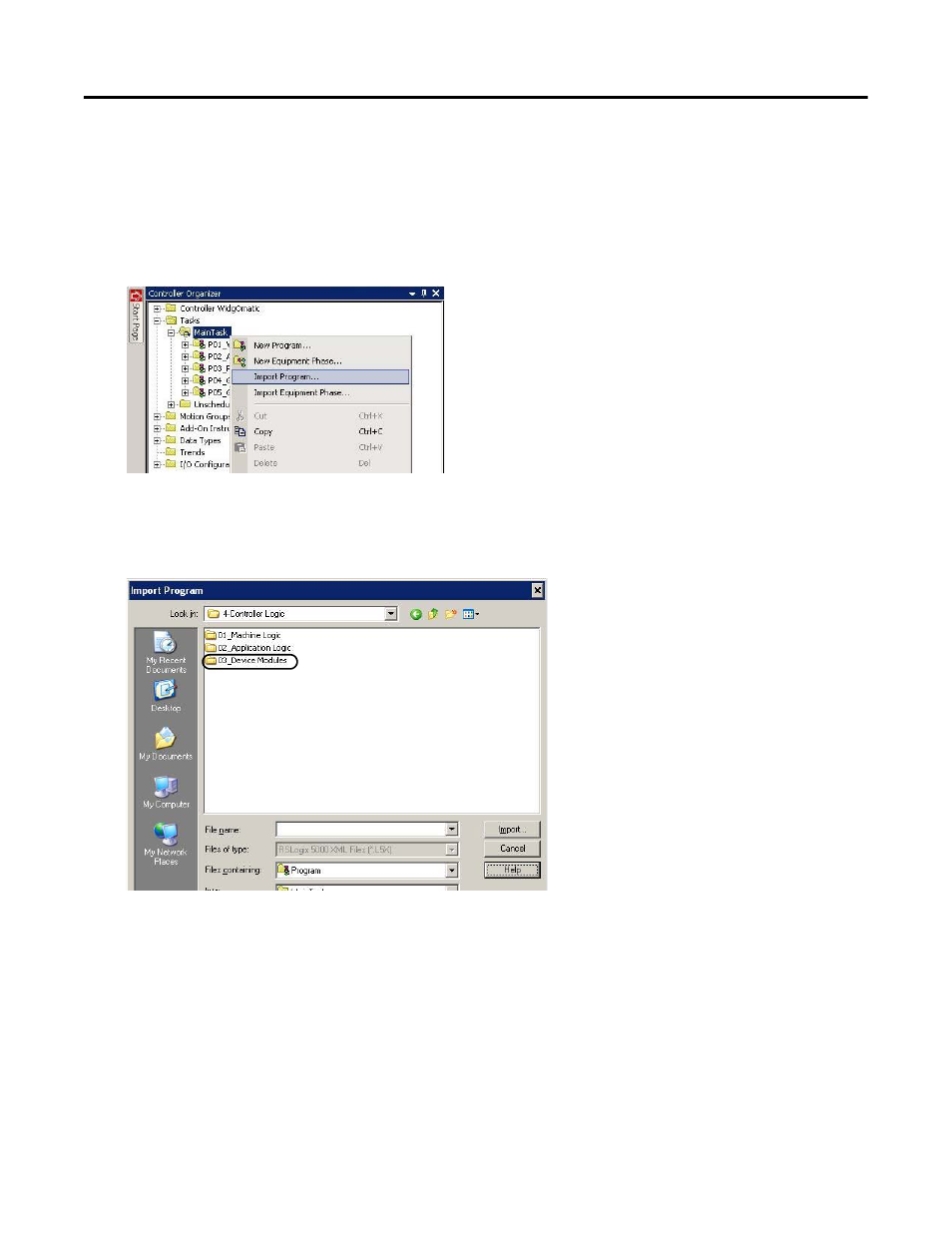

1. Expand the Tasks folder in your Controller Organizer and right-click the Main Task folder.
2. Choose Import Program.
3. Navigate to the 4-Controller Logic folder within the toolkit’s files folder and open the 03_Device Modules
folder.
Your personal computer’s harddrive path is
C:\Program Files\RA_Simplification\DMAT\B-Files\4-Controller Logic.
