Chapter 2
Bill of Materials Completion

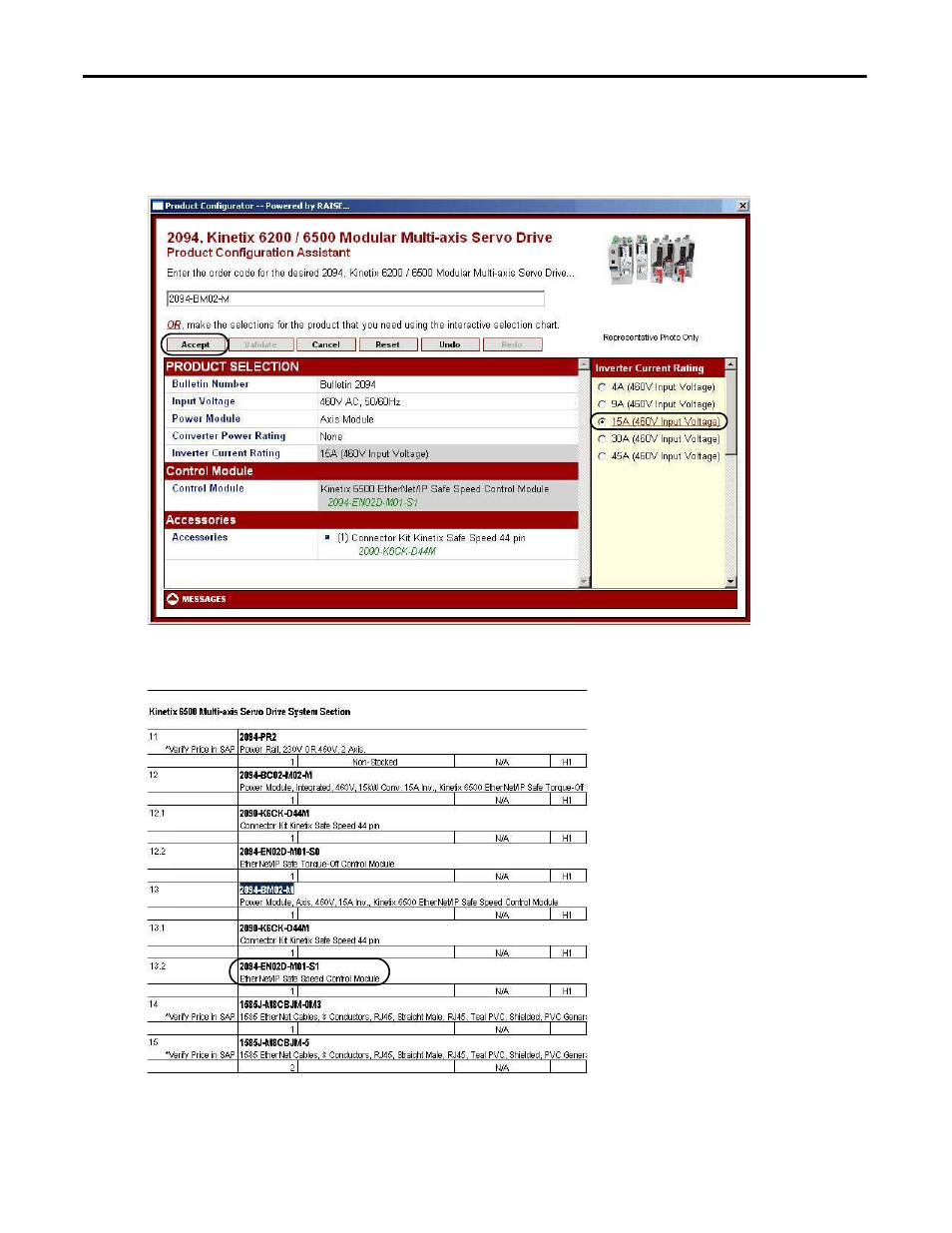

c. For this example, select 15 A under the Inverter Current Rating field.
The catalog number field was replaced with 2094-BM02-M. In addition, the 2094-EN02D-M01-S1
control module was chosen to replace the 2094-EN02D-M01-S0.
d. Click Accept to make the product change within the Product Configuration Assistant.
Sub item (13.2) also reflects the updated catalog number and description.
