Appendix G
Controller, Network, and Device Configuration Without the DMAT Wizard

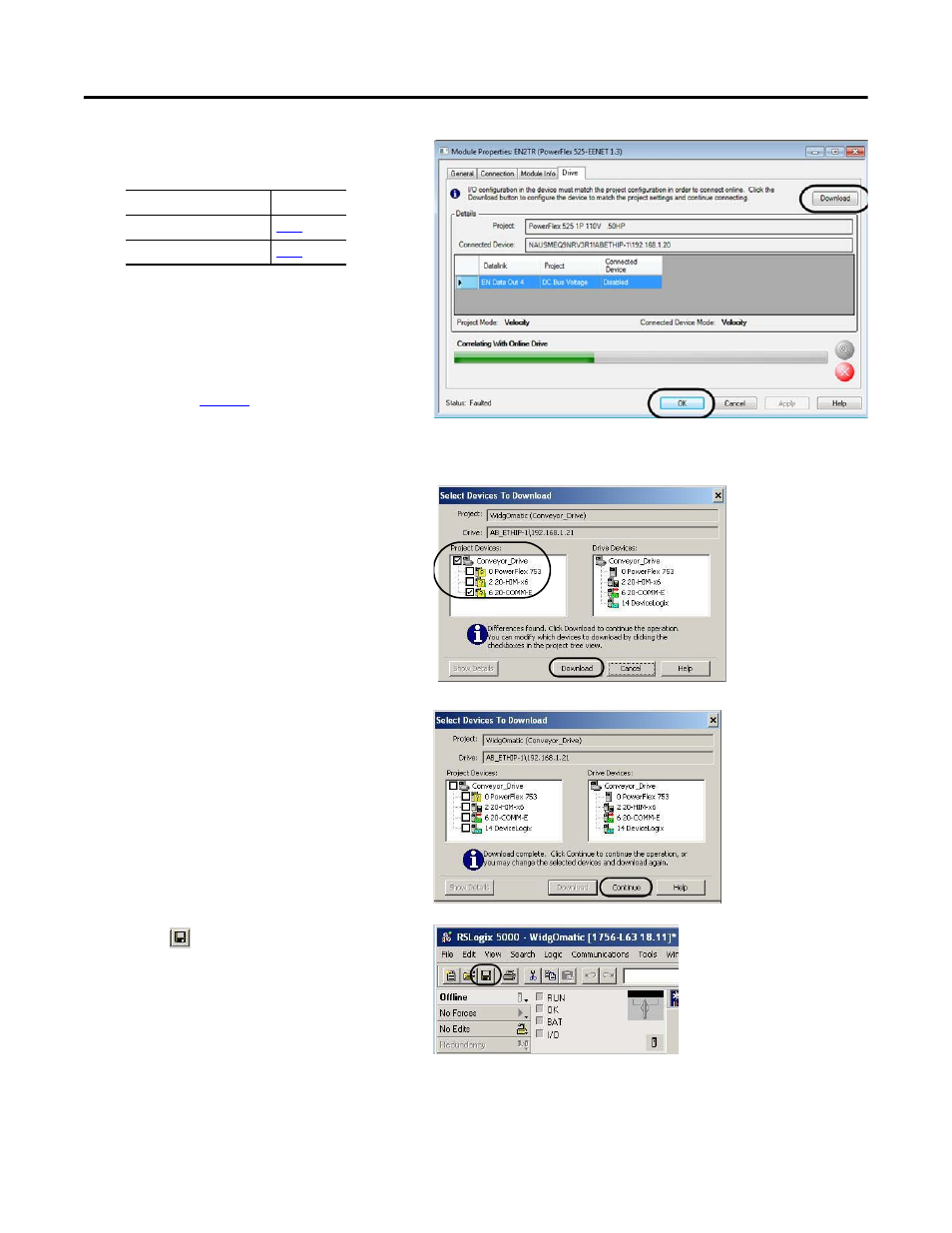

This I/O configuration dialog box applies
to the PowerFlex 525 drives.
a. Click Download.
b. Click OK.
c. Click OK to close the Module
Properties dialog box.
d. Skip to
6.
Click Use Project.
7.
Click Continue.
The Select Devices To Download dialog
box opens.
Project devices that are different than the
target drive devices are checked
automatically.
8.
Click Download.
9.
Click Continue.
10.
Click OK to close the Module Properties
dialog box.
11.
Click
to save your Logix Designer
application file.
To Configure
Go To
PowerFlex 525 drives
All other PowerFlex drives
