Controller, Network, and Device Configuration Without the DMAT Wizard
Appendix G
Add Kinetix 300 Drives to Your Logix Designer Project
Follow these steps to add each Kinetix 300 drive in your system to the Logix Designer project file. For the
Widg-O-matic machine application example, you add a single drive.
1.
Open your Logix Designer project file created in
.
2.

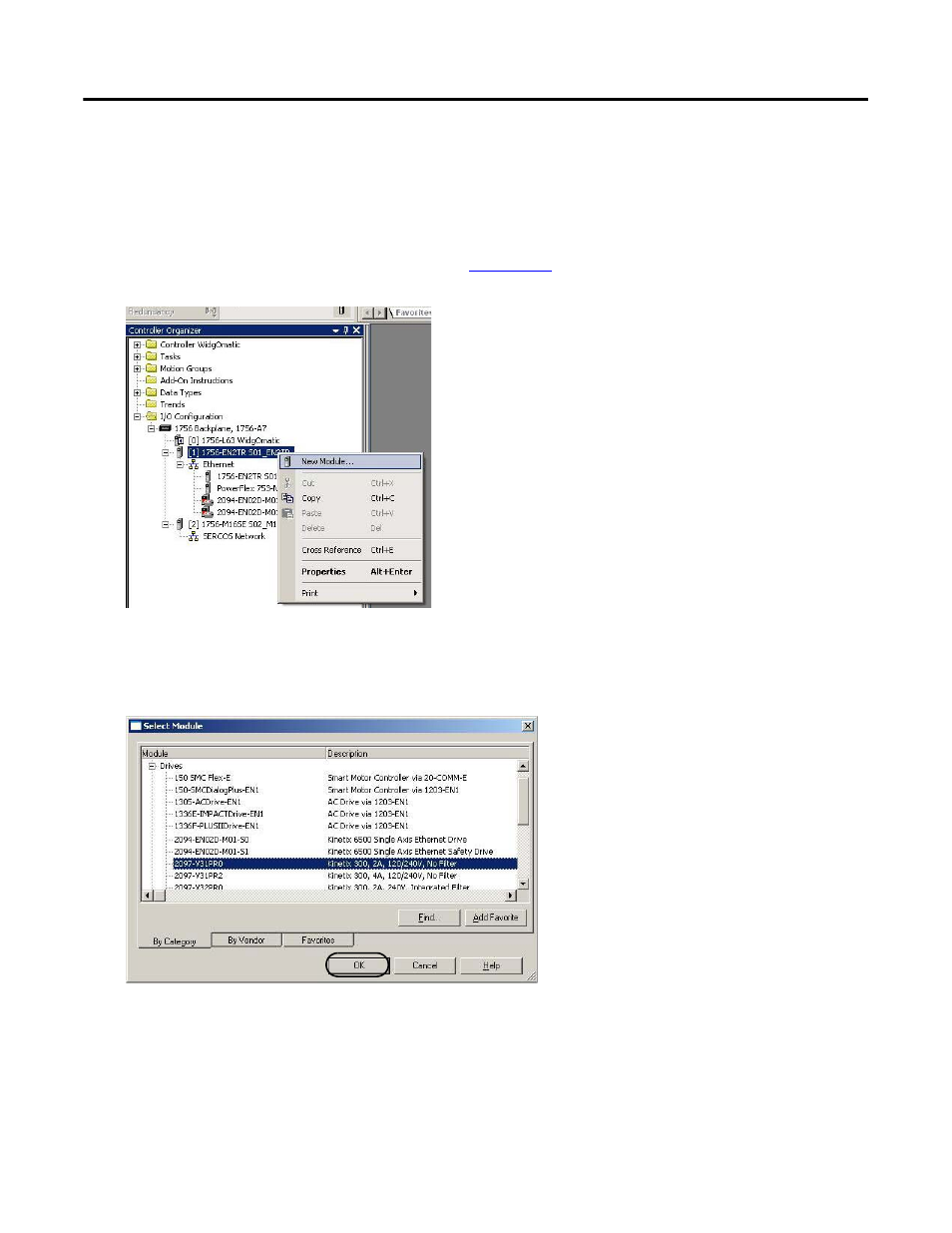

Expand the I/O Configuration folder in the Controller Organizer and browse to the controller backplane.
3.
Right-click the network communication module for your Kinetix 300 drive and choose New Module.
For the Widg-O-matic example, the 1756-EN2TR module is chosen.
The Select Module dialog box opens.
4.
Expand the Drives folder and select the appropriate Kinetix 300 drive for your application.
For the Widg-O-matic example, the 2097-V31PR0 drive is selected as the diverter drive.
5.
Click OK.
The New Module dialog box opens.
