Rockwell Automation Publication IASIMP-QS019E-EN-P - August 2013 259

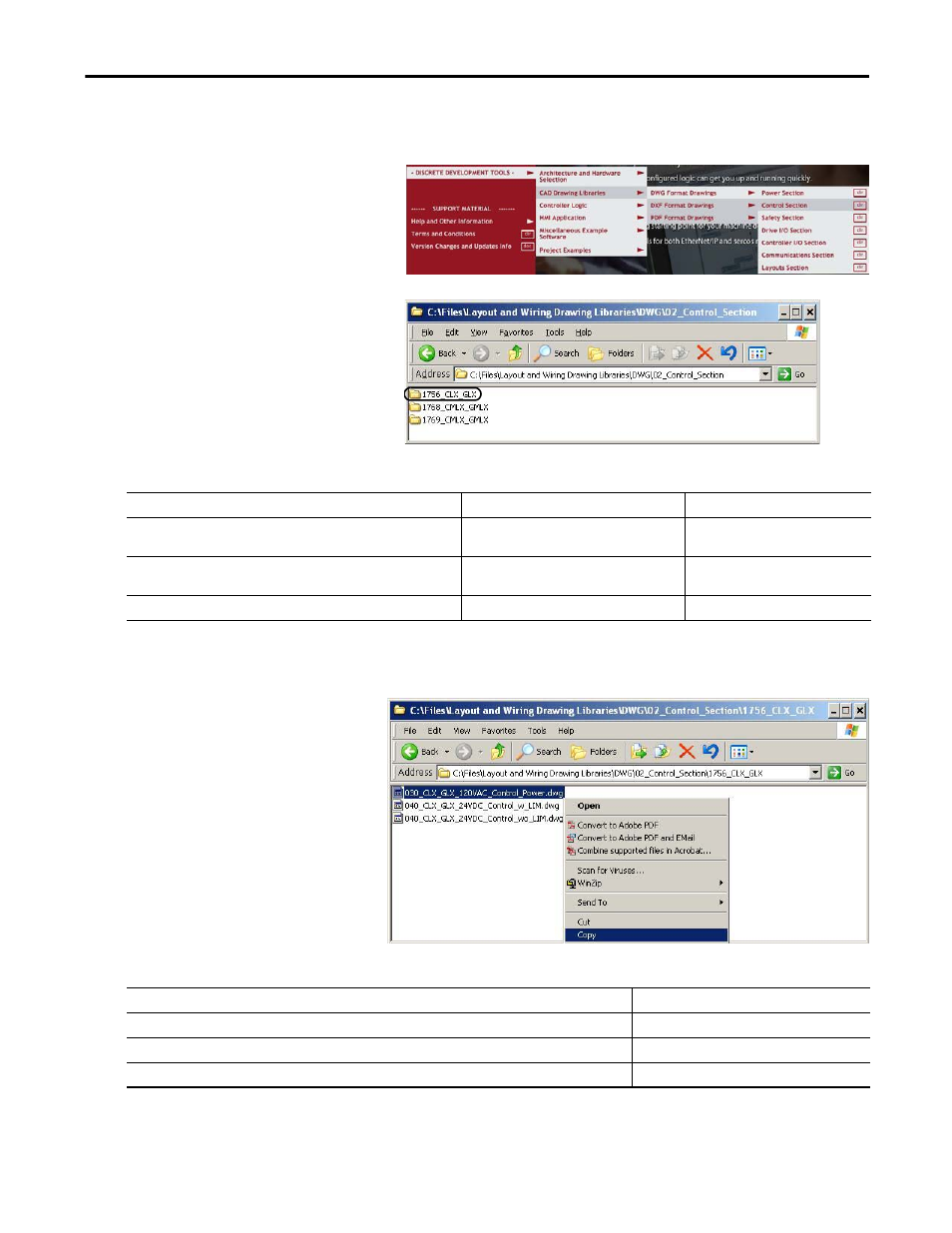

Assemble Project Drawing Set Without the DMAT Wizard Appendix F
Select Controller Power Drawings
1. Navigate to the desired (DWG, DXF,
or PDF) file type folder on the toolkit
DVD and select Control Section.
2. Double-click the controller folder
matching your actual Rockwell
Automation Logix5000 controller
based on the Logix5000 Controller
Selection table.
Logix5000 Controller Selection
For the Widg-O-matic machine application example, the 1756_CLX_GLX folder was chosen because
only the ControlLogix platform currently supports the Kinetix 6500 CIP motion drives.
3. Copy the controller drawing for
your actual controller platform
based on the Controller Power
Distribution Layout table.
Controller Power Distribution Layout
For the Widg-O-matic machine application example, the 120V AC drawing was chosen.
Logix5000 Controller Options Supported Drive Families Controller Folder
ControlLogix or GuardLogix controllers
All PowerFlex drives and all sercos and CIP motion
drives
1756-CLX_GLX
L4x CompactLogix or L4xS Compact GuardLogix controllers
All PowerFlex drives and all sercos interface drives
up to 8 drives, total
1768_CMLX_GMLX
L3x CompactLogix or L3xS Compact GuardLogix controllers All PowerFlex drives 1769_CMLX_GMLX
Controller Power Distribution Layout Options Power Drawing
120V AC controller power supply 03x_xxxx_xxx_120VAC_Control_Power.xxx
24V DC controller power supply when using a LIM module for main power/control 04x_xxxx_xxx_24VDC_Control_w_LIM.xxx
24V DC controller power supply when using traditional power distribution components for main power/control 04x_xxxx_xxx_24VDC_Control_wo_LIM.xxx
