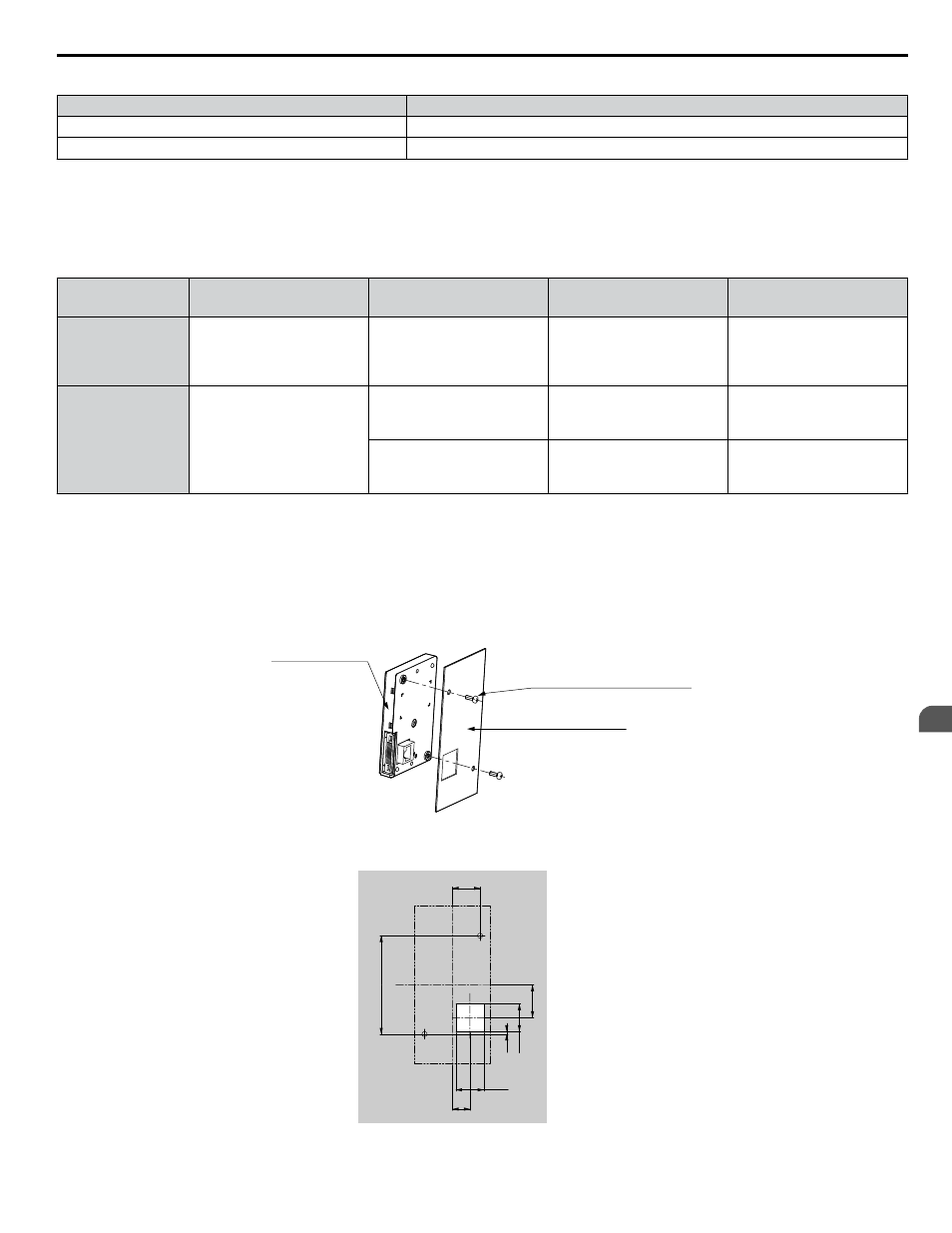

Table 2.2 Installation Environment
Keypad Kit Model
Description
UUX000526
Blank label on the front.
UUX000527
Yaskawa brand label on the front.
Installation Types and Required Materials
The digital operator mounts to an enclosure two different ways:
• External/face-mount installs the operator outside the enclosure panel
• Internal/flush-mount installs the operator inside the enclosure panel
Table 2.3 Digital Operator Installation Methods and Required Tools
Installation
Method
Description
Installation
Support Sets
Model
Required Tools
External/
Face-Mount
Simplified installation with
the digital operator is
mounted on the outside of
the panel with two screws.
–
–
Phillips screwdriver
(#1)
Internal/
Flush-Mount
Encloses the digital
operator in the panel. The
front of the digital operator
is flush with the outside of
the panel.
Installation Support Set A
(for mounting with screws
through holes in the panel)
EZZ020642A
Phillips screwdriver
(#1, #2)
Installation Support Set B
(for use with threaded studs
that are fixed to the panel)
EZZ020642B
Phillips screwdriver (#1)
Wrench (7 mm)
NOTICE:
Prevent foreign matter such as metal shavings or wire clippings from falling into the drive during installation and project construction.
Failure to comply could result in damage to the drive. Place a temporary cover over the top of the drive during installation. Remove the
temporary cover before drive start-up, as the cover will reduce ventilation and cause the drive to overheat.
External/Face-Mount
1.
Cut an opening in the enclosure panel for the digital operator as shown in
2.
Digital Operator
M3 x 6
Phillips recessed
pan head machine screw x 2
Enclosure panel
Unit: mm
Figure 2.11 External/Face-Mount Installation
22
22
14
26
22
78
2
Unit: mm
Figure 2.12 Panel Cut-Out Dimensions (External/Face-Mount Installation)
