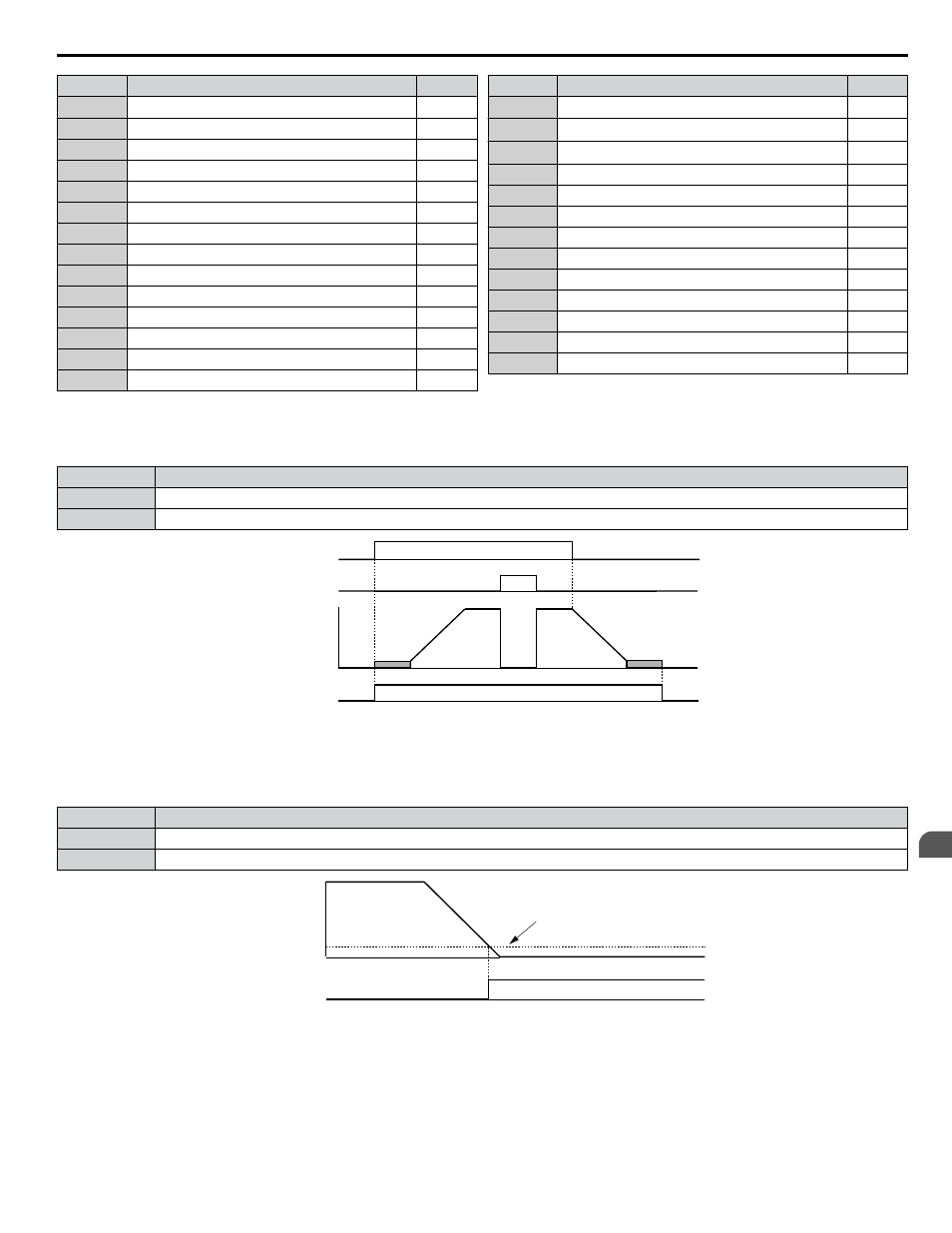

Yaskawa AC Drive-P1000 Industrial Fan - Manual (Page 215)

Setting Function
1E Restart Enabled 221
1F Motor Overload Alarm (oL1) 221
20 Drive Overheat Pre-Alarm (oH) 221
22 Mechanical Weakening Detection 221
2F Maintenance Period 221
37 During Frequency Output 221
38 Drive Enabled 222
39 Watt Hour Pulse Output 222
3C LOCAL/REMOTE Status 222
3D During Speed Search 222
3E PID Feedback Low 222
3F PID Feedback High 222
4A During KEB Operation 222
4C During Fast Stop 222
Setting Function
4D oH Pre-Alarm Time Limit 222
4E <2> Braking Transistor Fault (rr) 222
4F <2> Braking Resistor Overheat (rH) 222
50 Waiting to Run 222
51 Sequence timer 1 223
52 Sequence timer 2 223
53 Sequence timer 3 223
54 Sequence timer 4 223
58 UL6 Detected 223
60 Internal Cooling Fan Alarm 222
71 Secondary PI Feedback Low 223
72 Secondary PI Feedback High 223
100 to 192 Functions 0 to 92 with Inverse Output 223
<2> Not available in models 2A0169 to 2A0415 and 4A0088 to 4A1200.
Setting 0: During Run
Output closes when the drive is outputting a voltage.
Status Description
Open Drive is stopped.
Closed A Run command is input or the drive is in deceleration or DC injection.
ON
ON
OFF
OFF
ON OFF
Run command
Baseblock
command
Output
frequency
During Run
Figure 5.45 During Run Time Chart
Setting 1: Zero Speed
Terminal closes when the output frequency falls below the minimum output frequency set to E1-09 or b2-01.
Status Description
Open Output frequency is above the minimum output frequency set to E1-09 or b2-01
Closed Output frequency is less than the minimum output frequency set to E1-09 or b2-01
OFF
Output frequency
or
motor speed
Zero Speed
ON
E1-09 (Max. Output Frequency) or
b2-01 (Zero Speed Level)
Figure 5.46 Zero-Speed Time Chart
Setting 2: Speed Agree 1 (f
ref
/f
out
Agree 1)
Closes when the actual output frequency is within the Speed Agree Width (L4-02) of the current frequency reference regardless
of the direction.
5.7 H: Terminal Functions
