Three-phase 400 v class models 4a0930, 4a1200, Phase rectification, Removing the jumper – Yaskawa AC Drive-P1000 Industrial Fan User Manual

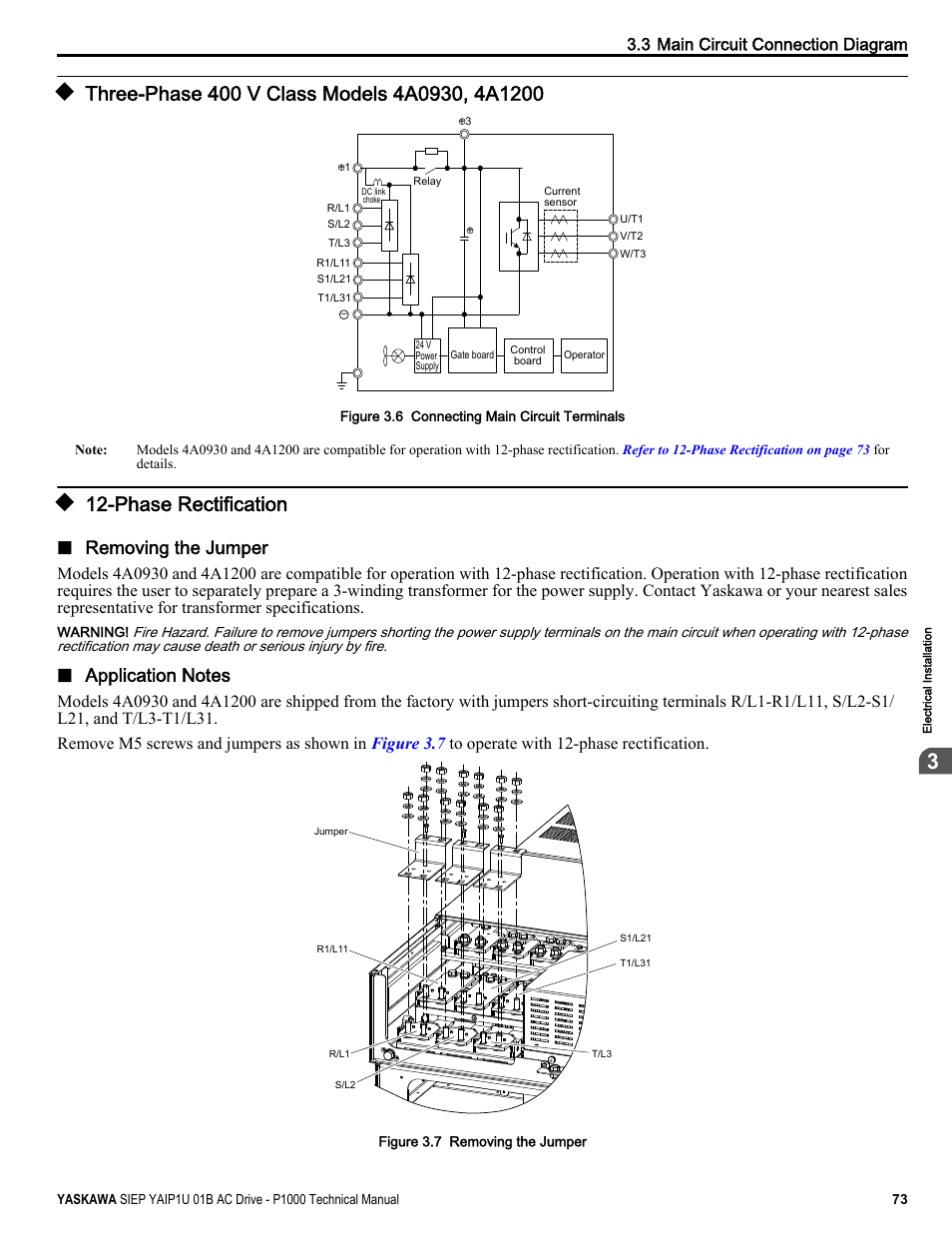

Page 73: 3 main circuit connection diagram
This manual is related to the following products:
