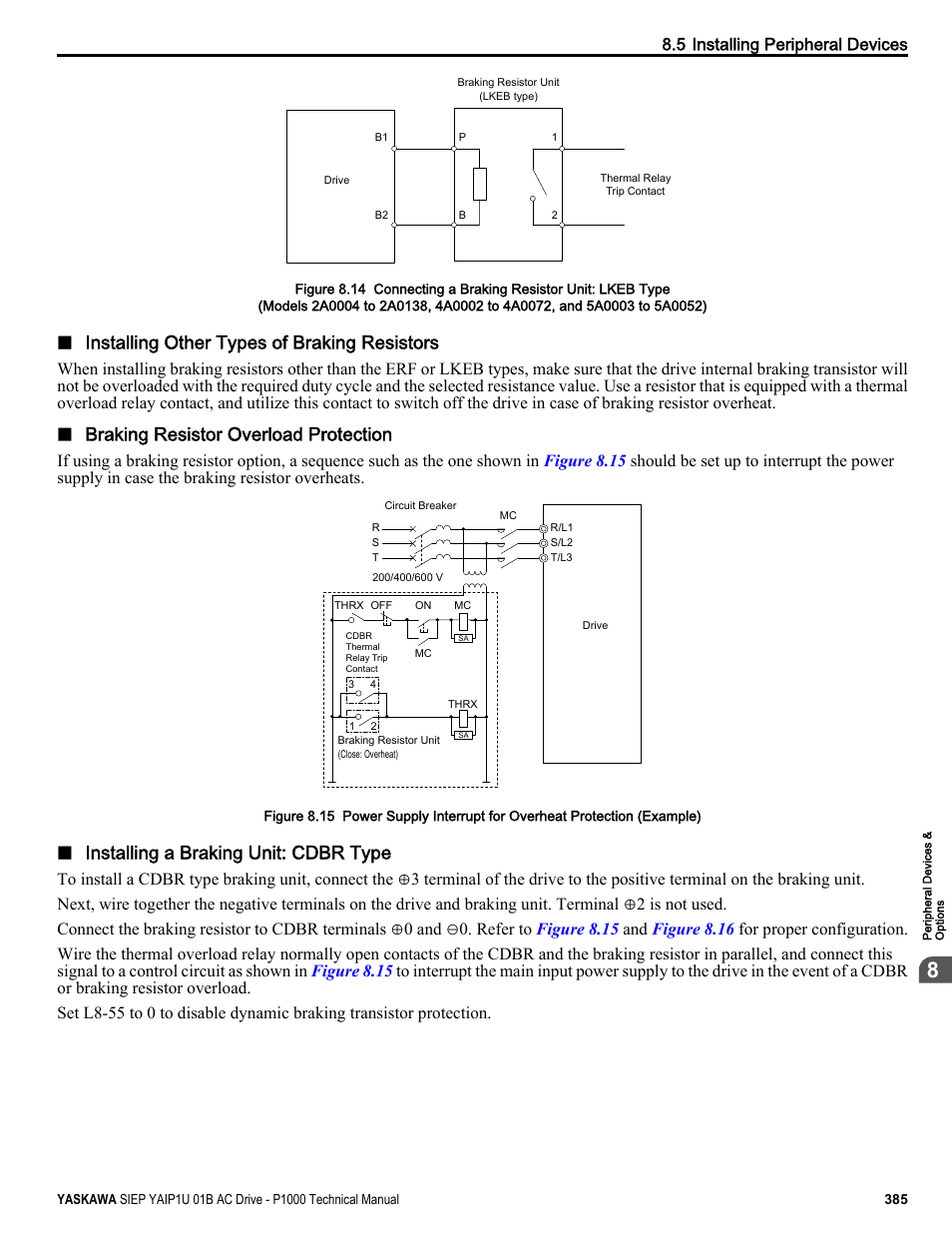

Drives b1 and b2 terminals as shown in, Figure 8.14, Installing other types of braking resistors – Yaskawa AC Drive-P1000 Industrial Fan User Manual
Page 385: Braking resistor overload protection, Installing a braking unit: cdbr type
