Station addressing for nodes connecting to Allen–Bradley devices

E–7

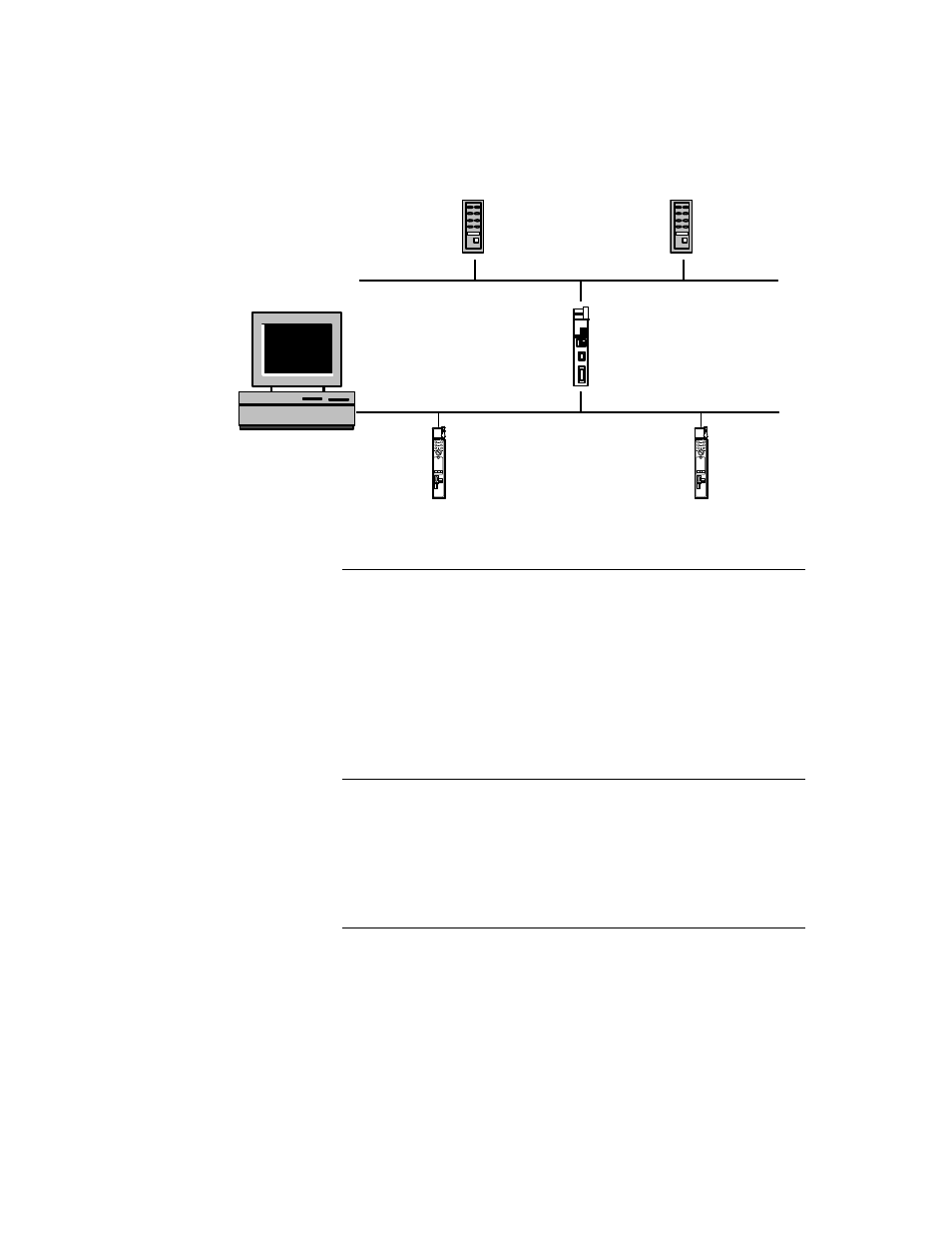

Multiple DH+ networks connected by a
Pyramid Integrator
The format of the station address for nodes on a remote DH+
network is:
1785-KA5
PLC-5/60
14 (decimal)
RSView32
with KT-family
card
PLC-5/40
SLC 5/03
DH-485 10
(decimal)
SLC 5/03
11
(decimal)
17 (octal)
DH+
7 (octal)
Link
1
Link 2
4 (octal)
(OS 301) (OS 301)
Station Address Valid Entries
ll:rrrrr.ss
lll local bridge address
rrrrr PI Link number
ss station address on remote
DH+
0 – 77 (octal)
0 – 65535 (decimal)
0 – 77 (octal)
