Creating graphic displays

11–9

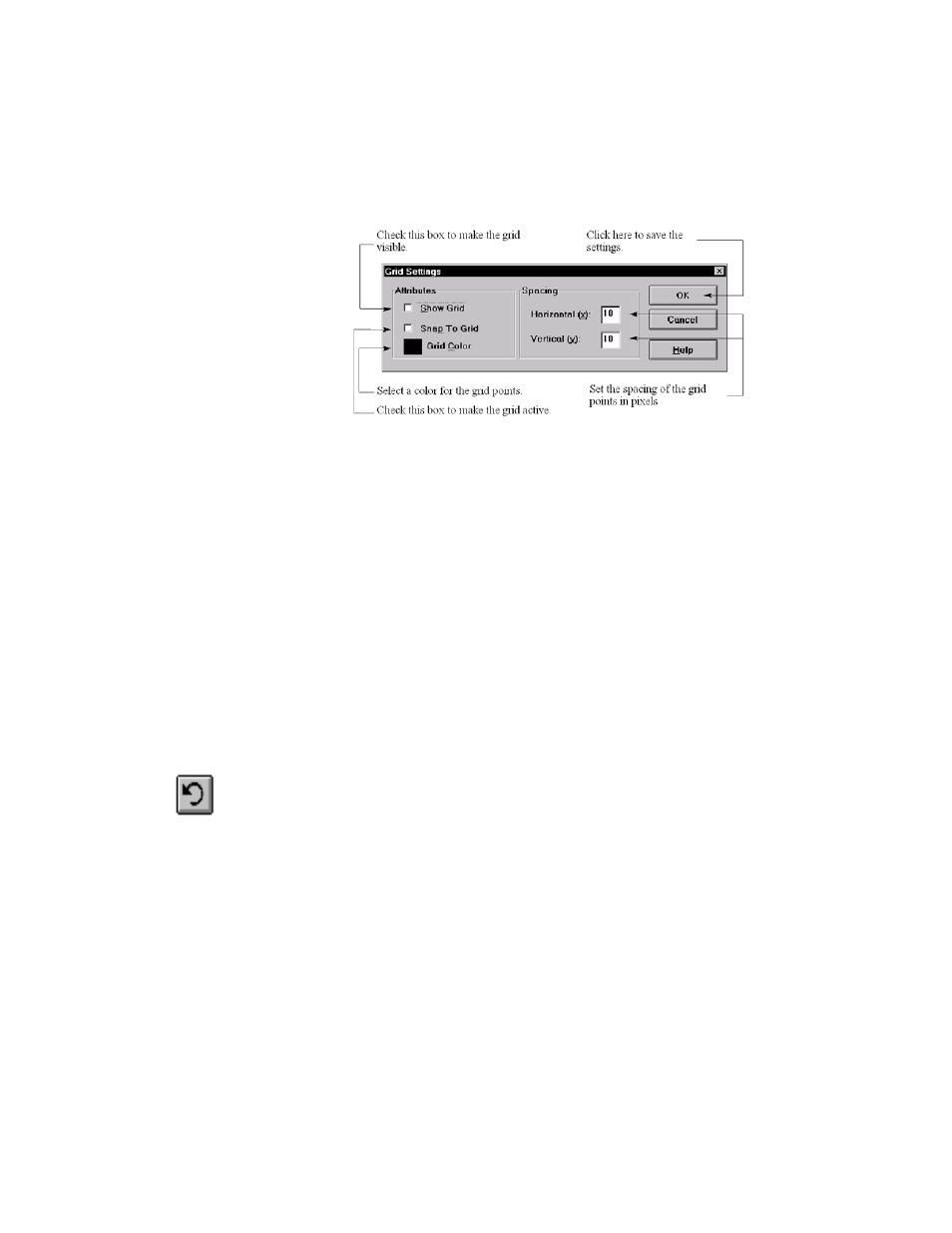

The grid can be active or passive. If you turn on Snap to Grid, the grid
is active and all the objects you draw or position are pulled to the
closest grid point. This makes it easy to align and size objects. If you
turn off Snap to Grid, the grid is passive and does not affect your
drawing or the position of your objects.
Turn off the grid to either draw or position an element between the
grid lines. Turn on the grid and the next object you draw or place will
automatically be aligned with the grid. Turning on the grid does not
affect the placement of existing objects.
You can click Show Grid and Snap On on the View menu.
Using the Rotate tool
Use this tool to rotate an object or group of objects around an anchor
point.
You can also use the Rotate tool when attaching rotation animation to
a graphic object. For details about rotation animation, see
“Configuring rotation animation” on page 12-25.
You cannot rotate OLE objects, ActiveX objects, bitmaps, and text.
Rotate tool
Rotate tool
