6–64

RSView32 User’s Guide
Positioning the button bar
To specify the location of the button bar, click Button Bar Position on

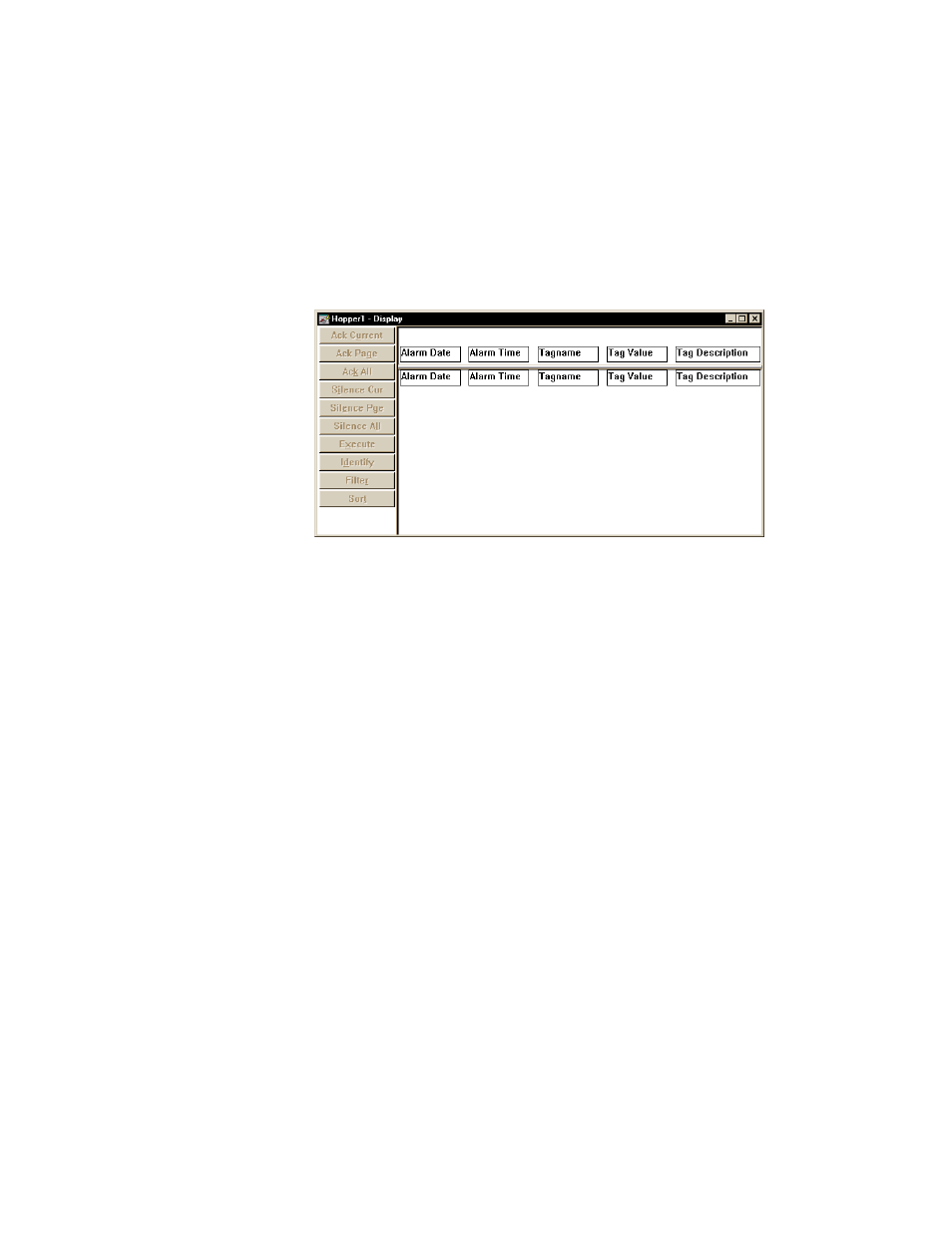

the Format menu, and then click a location. In the following
illustration, Left was chosen as the button bar position.
Choosing data
Use the Filter and Sort items in the Data menu to specify which alarm
information is displayed. Use Filter to filter out information—that is,
to specify information you do not want displayed in the alarm
summary. Use Sort to specify the order in which alarm information is
displayed.
Alarm information can be filtered and sorted at runtime, but changes
are not saved.
Filtering data
To filter data, click Filter on the Data menu. The Filter dialog box
opens. If a check box is selected, the information is included in the
alarm summary. Clear the check boxes for information you want
excluded from the alarm summary.
