Creating graphic displays

11–35
Reshaping simple objects
You can easily reshape any simple object.

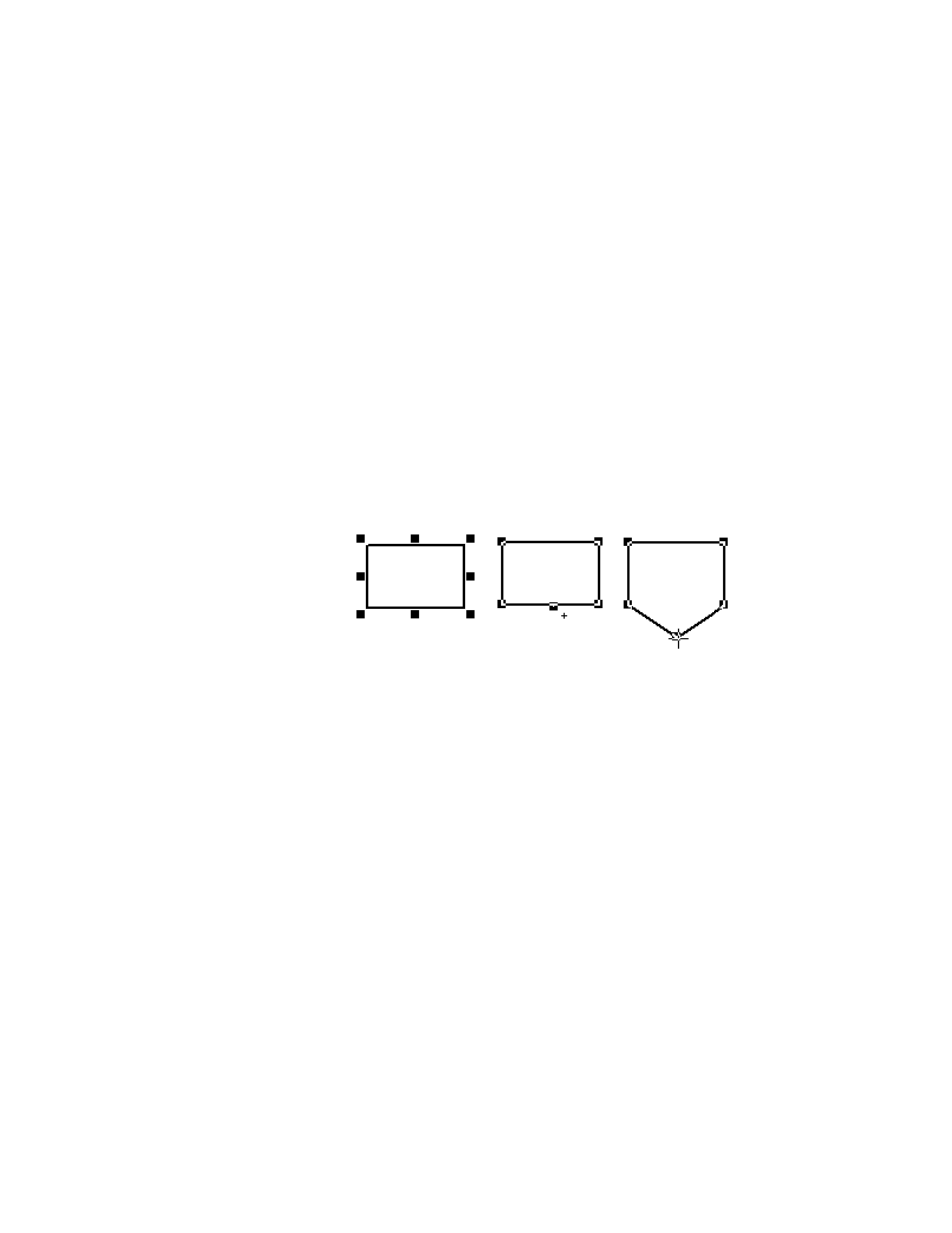

To reshape lines, rectangles, polylines, and polygons:
1. Place the pointer on the object you want to reshape and double–
click, or right–click and then click Edit Object.
The cursor changes to the Polygon tool.
2. Move the cursor over any line in the object.
A handle with a cross–hair appears.
3. Drag the handle until the object is the desired shape.
To maintain the aspect ratio of any object while resizing, grab a corner
handle, press Shift, and drag the mouse.
To reshape arcs, ellipses, and wedges:
1. Place the pointer on the object you want to reshape and double–
click, or right–click and then click Edit Object.
The cursor changes to the Arc or Wedge tool, and handles appear
on the object.
2. Place the pointer on one of the handles.
A cross–hair appears.
3. Drag the handle until the object is the desired shape.
