2. Specify a line width and style. Line styles are available only when
the line width is 1.
The styles are:
3. Click OK.
4. Click Line Color or Fill Color on the Attributes menu to apply line
or fill colors.
Line style uses both the line color and fill color attributes. Line
color applies to the line, and fill color applies to the spaces in the
line. For example, to obtain the dash–dot line, choose black as the
line color, and choose white as the fill color. Black is applied to the
dots and dashes and white is applied to the spaces between the
dots and dashes.
5. Select a color, then click OK.
For trend objects, you can also customize line width and color using
the Pen Configuration tab of the Trends dialog box.

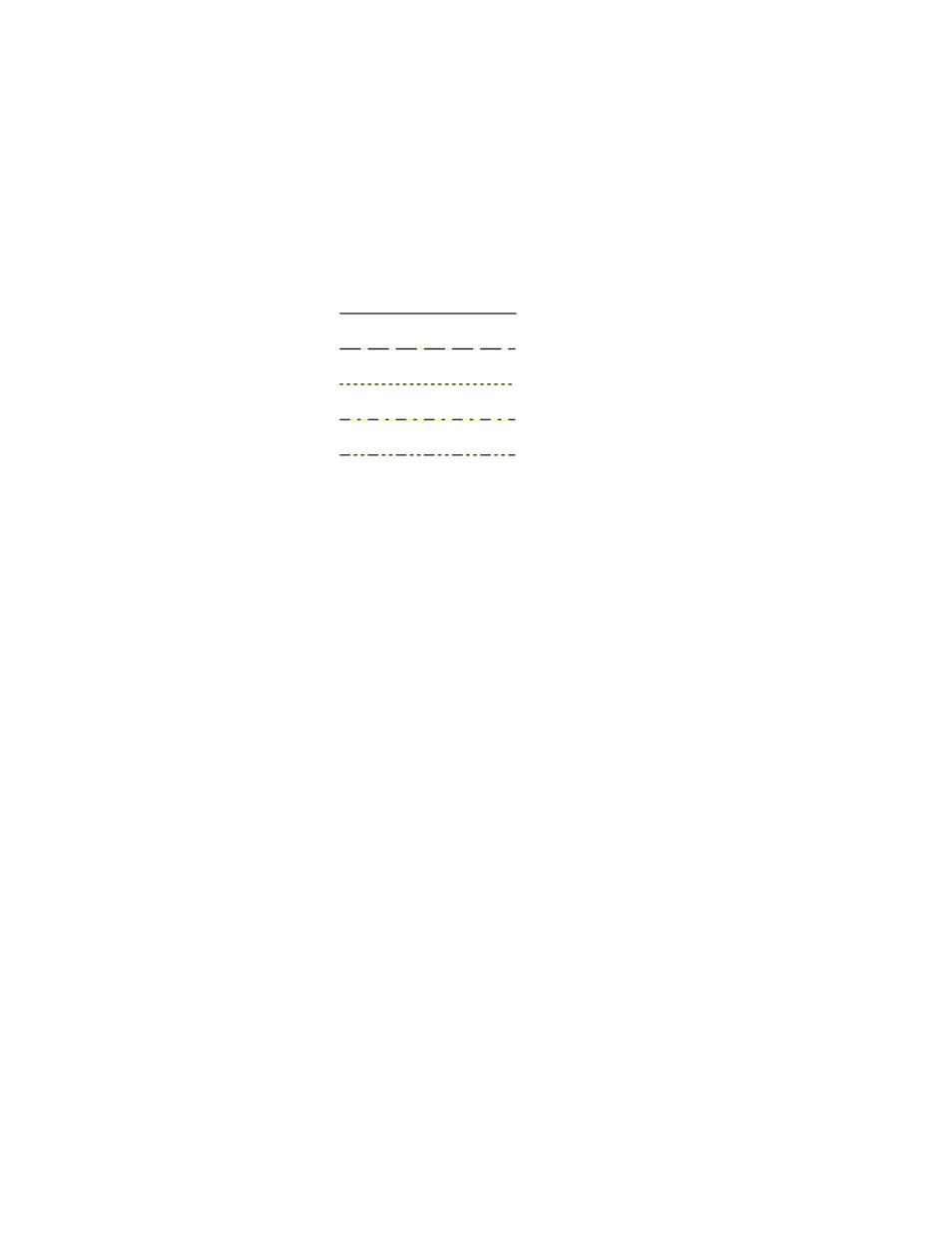

Solid
Dash
Dot
Dash-Dot
Dash-Dot-Dot
