12–26

RSView32 User’s Guide
halfway between the minimum and maximum values, the object will
rotate half the specified amount.
9.
Text, advanced objects except arrows, OLE objects, ActiveX objects,
and bitmaps cannot be rotated.
RSView32 does not support rotation animation for rounded
rectangles because of Windows limitation.

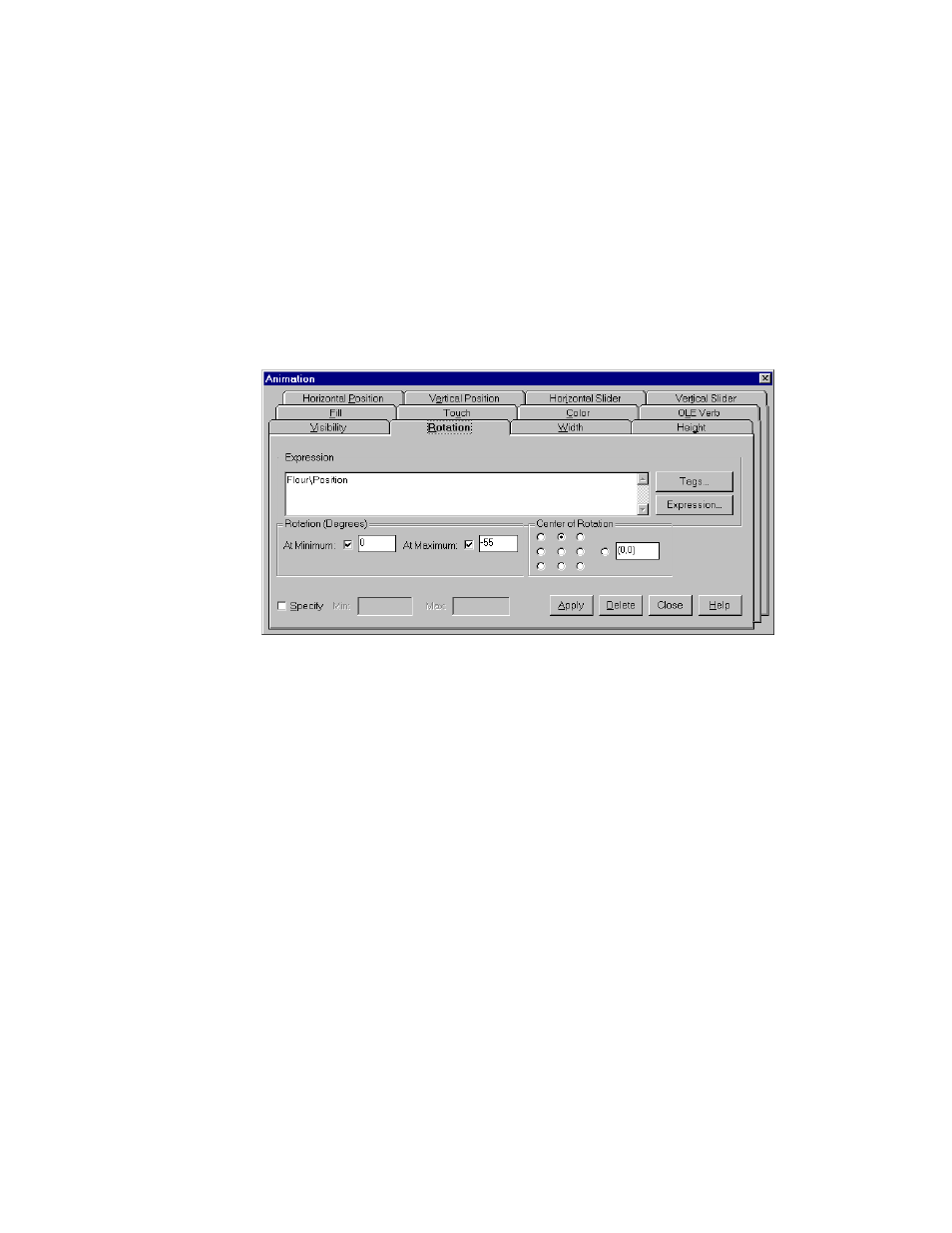

To configure rotation animation:
1. Select the object.
2. Click the Rotation tab in the Animation dialog box.
3. Create an expression. The expression can be a tag name or a more
complex expression. If a tag name is used, the tag’s value
determines the object’s rotation.
4. Set the center of rotation using one of the methods described
below. The center of rotation is the point around which the object
will rotate. This point can be inside or outside of the object. If it is
outside, the object will appear as if it is moving in an arc.
