Setting up navigation

15–5
Example of navigation methods
Following are examples of various navigation methods:
Example: Keyboard operation

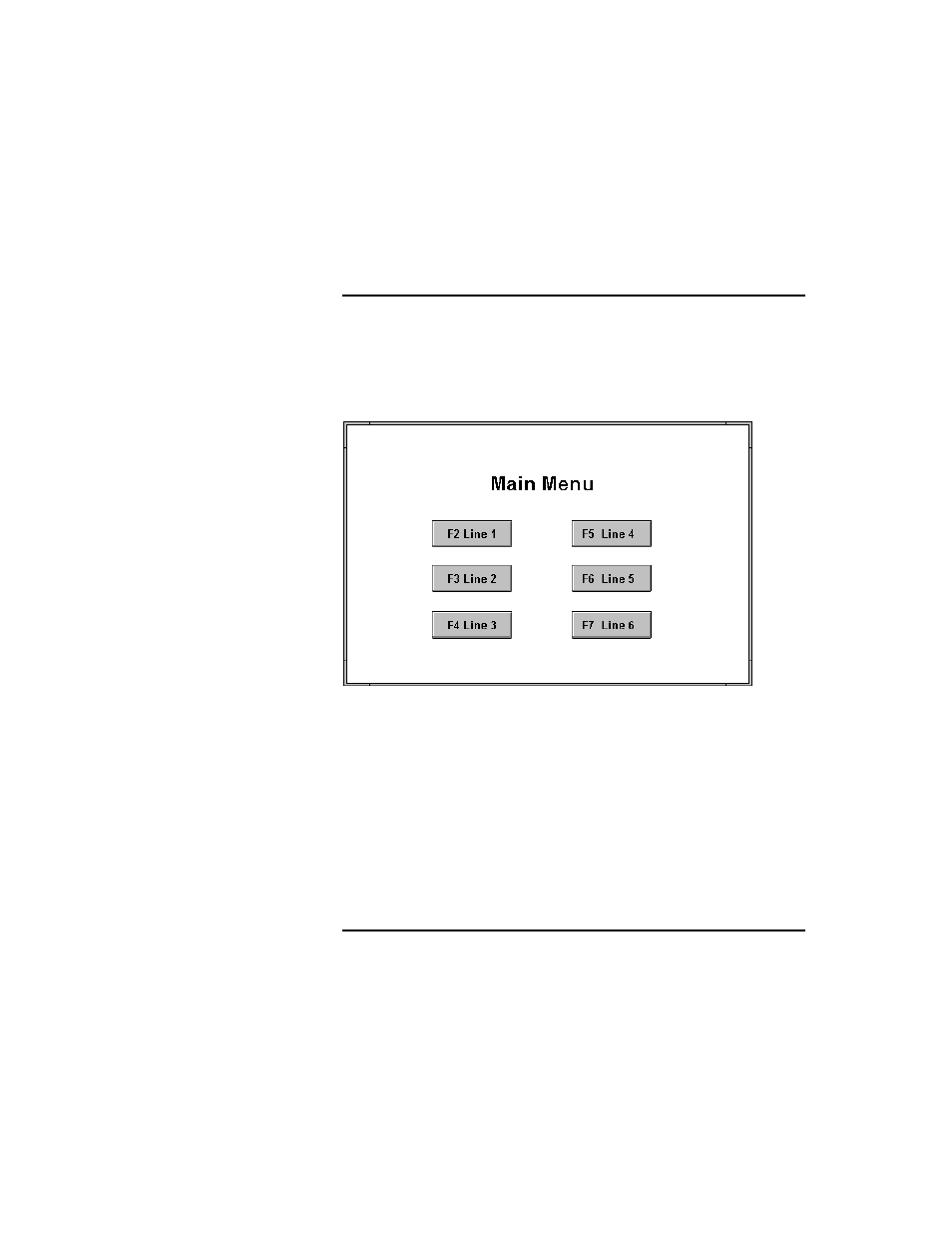

The following graphic display has been designed to act as a menu,
listing keys users can press to open different displays.
To create this display, the designer assigned various RSView32
commands to keys using the three types of key definitions: object,
display, and global. In all cases, keys (not mouse buttons) were defined
to run commands.
Object key and display key animation are configured in the Graphic
Display editor. For details, see Chapter 12, Animating graphic objects.
Global keys are created in the Global Keys editor. For details, see
“Creating global keys” on page 15-19.
