12–20

RSView32 User’s Guide
Configuring horizontal position animation
With horizontal position animation, an object moves horizontally
based on the result of an expression in relation to its minimum and
maximum values. The object’s horizontal position is proportional to
the value of the expression. For example, if the value of the expression
is halfway between the minimum and maximum values, the object will
be halfway between its minimum and maximum pixel offset.

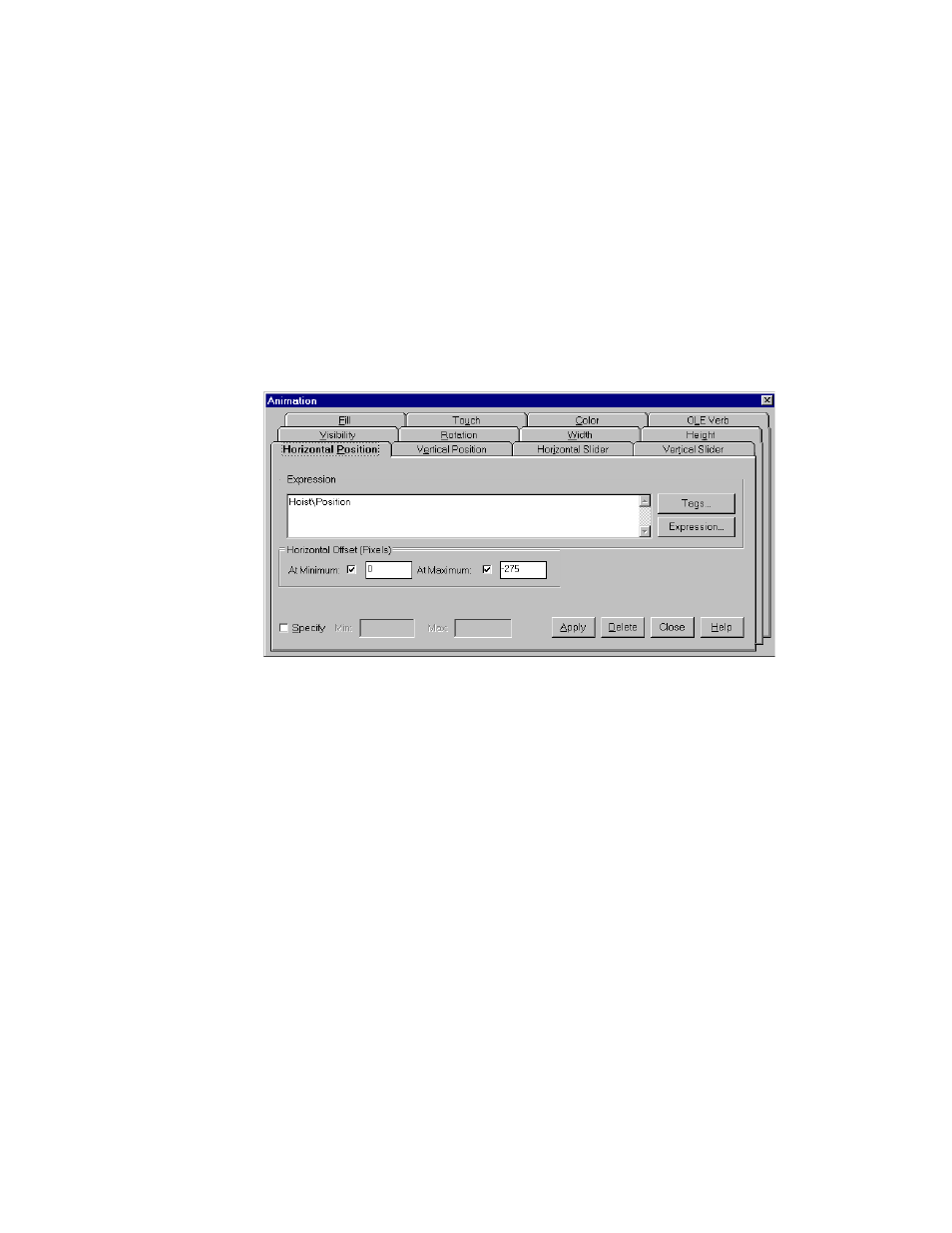

To configure horizontal position animation:
1. Select the object.
2. Click the Horizontal Position tab in the Animation dialog box.
3. Create an expression. The expression can be a tag name or a more
complex expression. If a tag name is used, the tag’s value
determines the horizontal position.
4. Set the starting point for the object by dragging the object or by
typing a value. Click the At Minimum check box.
5. Set the ending point for the object by dragging the object or by
typing a value. Click the At Maximum check box.
