Creating graphic displays

11–43
controller and/or save them to a recipe file. For more information on
recipe files, see “Creating a recipe field” on page 11-61.
If an upload fails because of a communication error, question marks
appear in the numeric input fields.
Colors for input fields are set in the Display Settings dialog box. For
details, see “Specifying colors for input fields” on page 11-24.

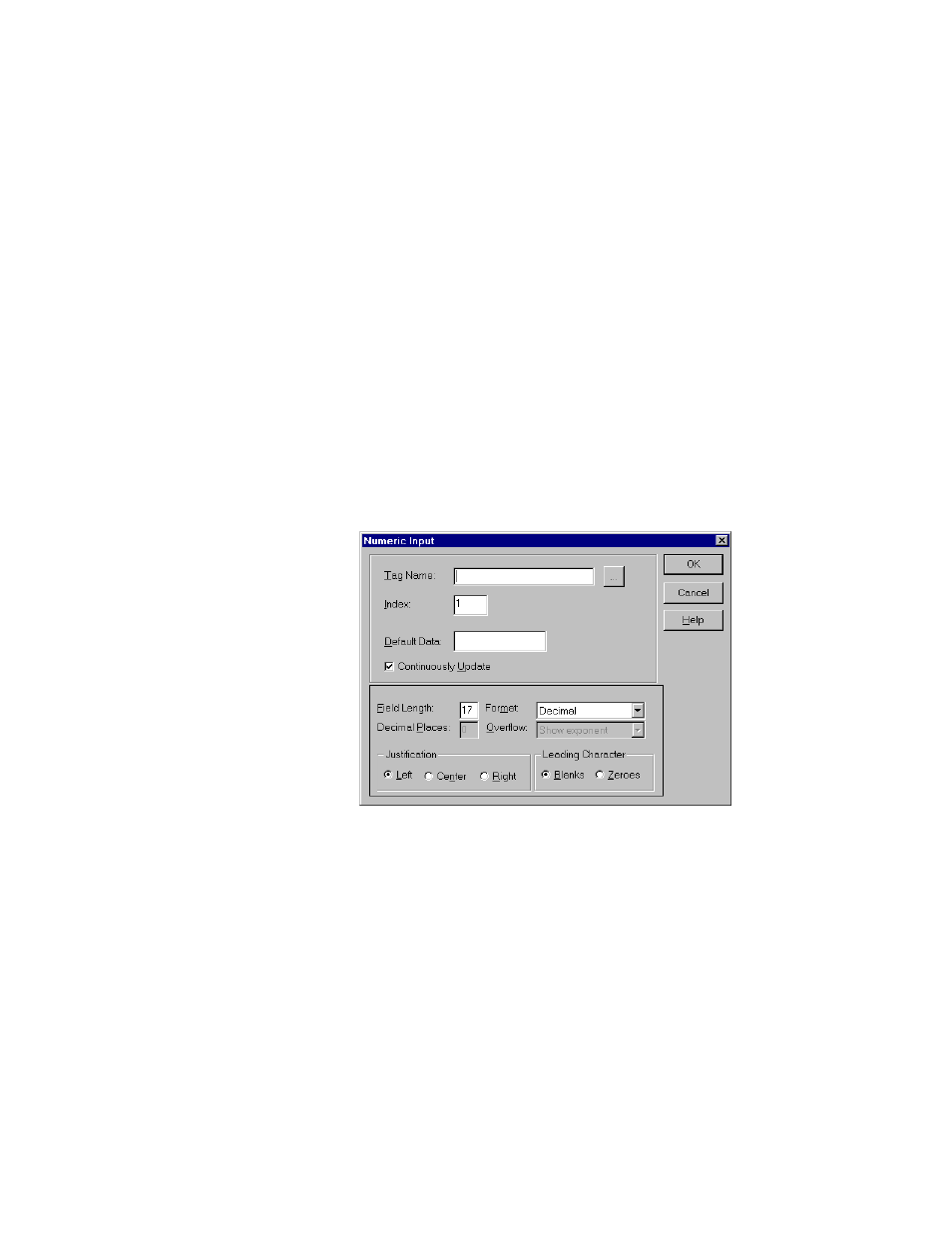

To create a Numeric Input field:
1. Click the Numeric Input tool.
2. Drag the mouse to draw the field.
3. Release the mouse button.
