Creating graphic displays

11–55

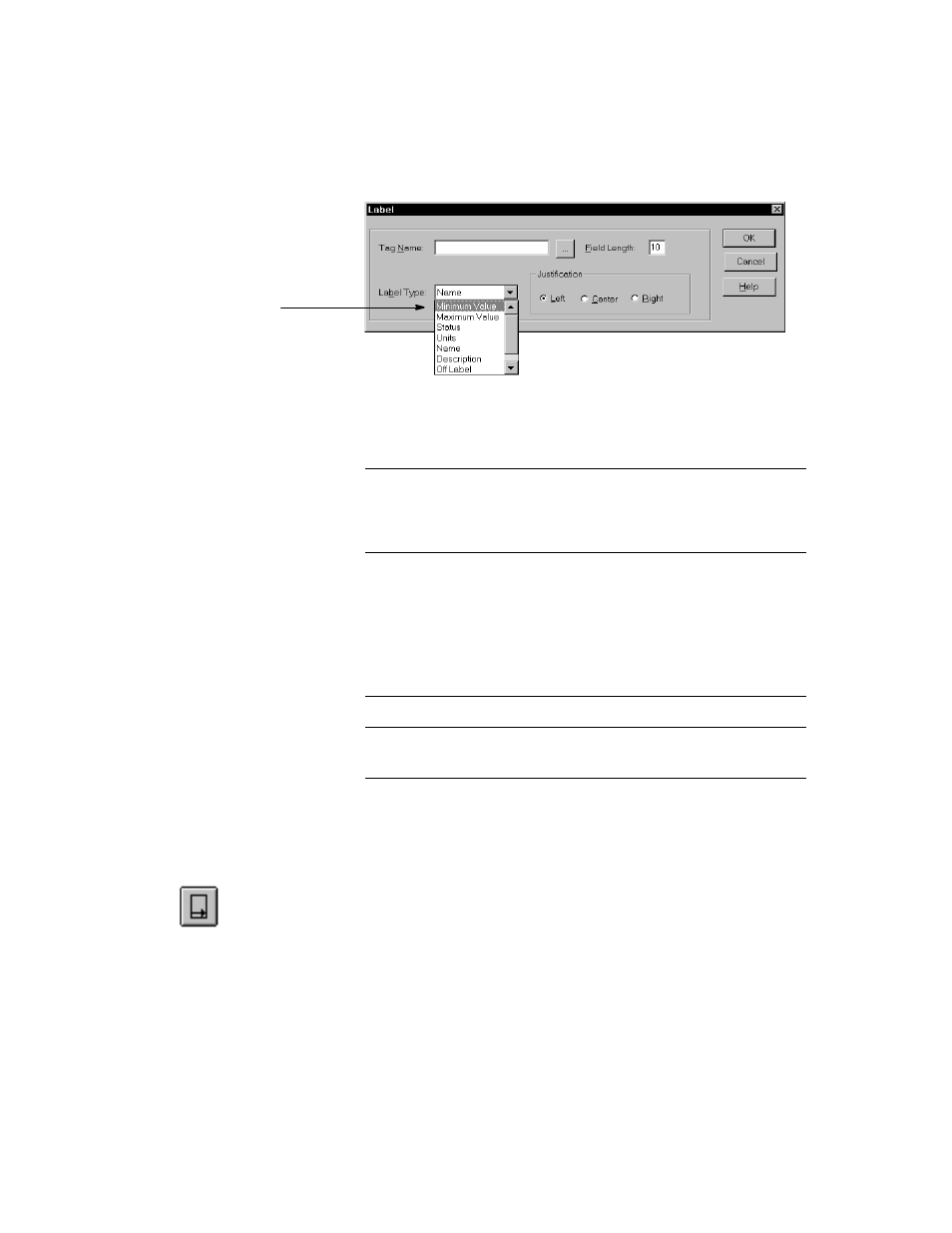

4. Fill in the fields as follows:
5. Click OK.
Creating arrows
Use the Arrow tool to create arrows that move based on the results of
an expression. Arrows can move vertically or horizontally.
In this field Do this
Tag Name Specify a tag name or placeholder.
For information on placeholders, see “Using tag
placeholders” on page 11-37.
Field Length Type a value to specify the maximum number of
characters that will be displayed in this field. Be
sure the field is long enough to accommodate
the label.
The maximum field width depends on the type
of label you are creating.
Label Type Select a type.
Justification Select Left, Center, or Right to specify how the
values will be aligned within the field.
Select a label
from the list.
Arrow tool Arrow tool
