Animating graphic objects

12–21
6. To specify minimum and maximum values, click the Specify check
box and type the values.
7. Click Apply.
Configuring vertical position animation
With vertical position animation, an object moves vertically based on
the result of an expression in relation to its minimum and maximum
values. The object’s vertical position is proportional to the value of the
expression. For example, if the value of the expression is halfway
between the minimum and maximum values, the object will be halfway
between its minimum and maximum offset.
To configure vertical position animation:
1. Select the object.

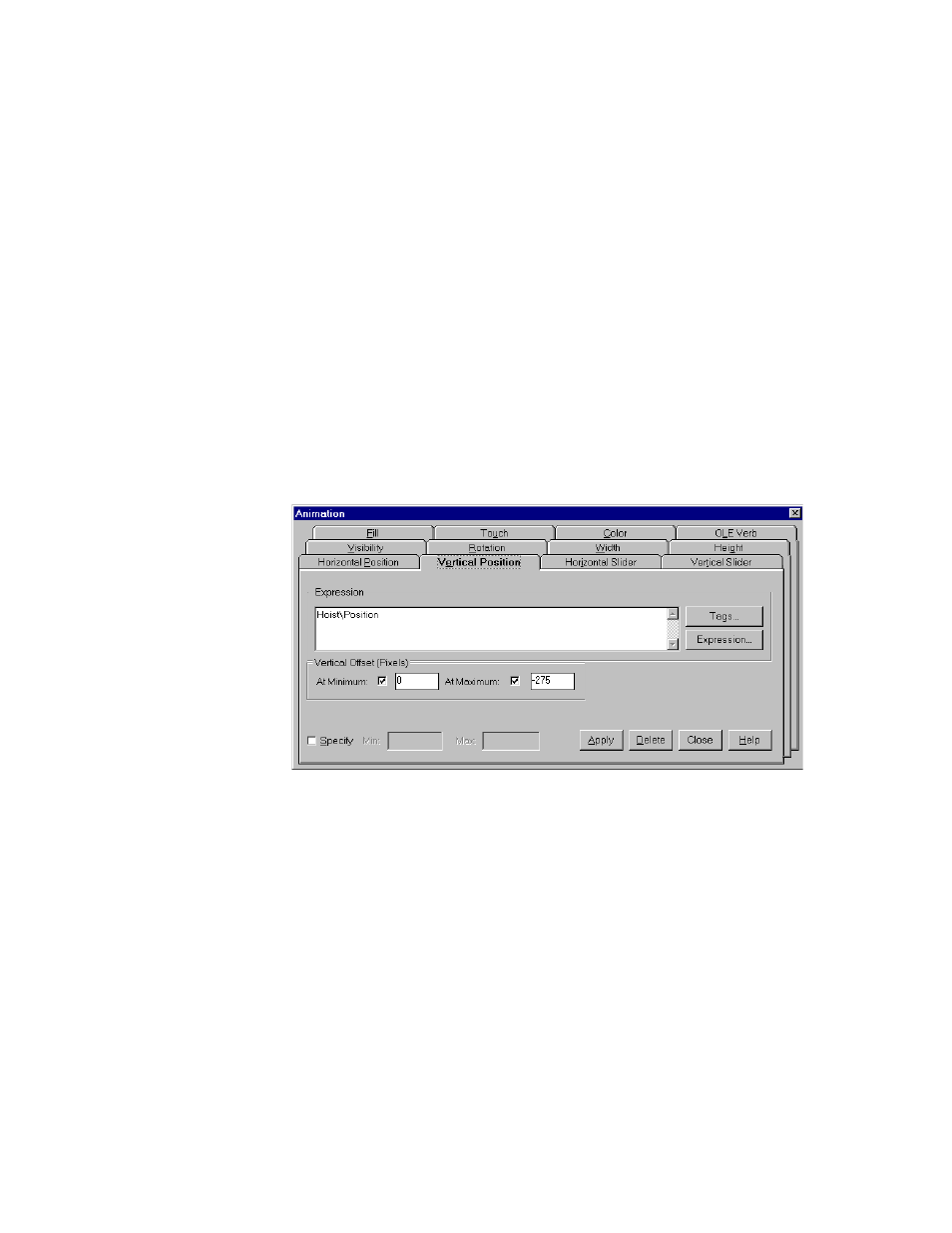

2. Click the Vertical Position tab in the Animation dialog box.
3. Create an expression. The expression can be a tag name or a more
complex expression. If a tag name is used, the tag’s value
determines the vertical position.
